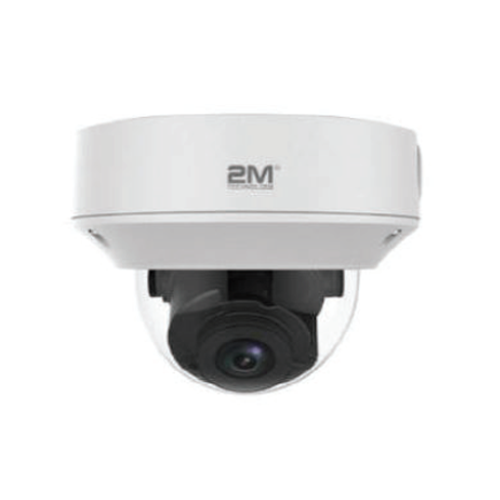

2MVIP-5MIR30UAST-P 5MP WDR Starlight Vandal-Resistant Network IR Fixed Dome Camera

  • Starlight illumination
  • Day/night functionality
  • SmartIR, up to 30 m (98 ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • ONVIF Conformance

Product Documents

Key Features

Optics

  • Starlight illumination
  • Day/night functionality
  • SmartIR, up to 30 m (98 ft) IR distance
  • Up to 120 dB WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • ROI (Region of Interest)
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C
  • (-31°F to 140°F)
  • Wide input voltage range of ±25%
  • IK10 vandal resistant
  • IP67
Weight 0.99 lbs
Series

Professional Series

Resolution

5 Megapixel (2560 x 1960)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Ultra WDR 120DB, Starvis, Audio Input

Alarm I/O

Edge Storage

,

Ingress Protection

IP67

Behavior Detection

, ,

Camera
Sensor 1/2.7″, progressive scan, 5.0 megapixel, CMOS
Lens 2.8 mm@F1.6 4.0 mm@F1.6




DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
4mm 90 36 18 9
Angle of View (H) 105.3° 79.7°
Angle of View (V) 69.5 51.8
Angle of View (O) 136.8 98.1
Adjustmentangle Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

Colour: 0.005 Lux (F1.6, AGC ON)

0 Lux with IR

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile




Frame Rate

Main Stream: 5MP(2592 x 1944): Max.20 fps, 5MP(2592 x 1944): Max.25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;

Sub Stream:2MP(1920 x 1080): Max.30 fps;

Third Stream: D1(720 x 576): Max.30 fps;

HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection._Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting


General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible Integration ONVIF(Profile S), API
Interface


Audio I/O

2 Input: impedance 35 kO; amplitude 2 V *p-p]
1 Output: impedance 600 O; amplitude 2 V *p-p]
Alarm I/O 1/ 1


Network



1 RJ45 10M/100M Base-TX Ethernet

General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H) ©108.5 x 81 mm (¢4.28″ x 3.2″}
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
