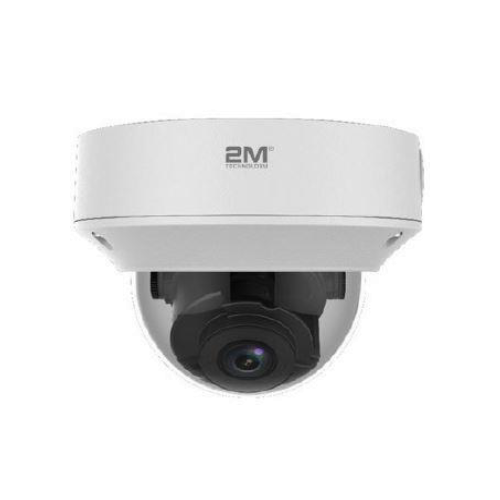

2MVIP-5MIR30V-E 5MP VF Vandal-resistant Network IR Varifocal Dome Camera

Key Features:

Smart IR
2D/3D Digital Noise Reduction
Region of Interest
ONVIF Conformance
IK10 Vandal Resistant
IP67

REQUEST DEMO

The 2M Technology 2MVIP-5MIR30V-E Varifocal Network Dome Camera features Smart IR technology, giving the user up to 30 meters IR distance. Additionally, the varifocal camera includes 2D/3D digital noise reduction to ensure quality footage. The dome camera has region of interest (ROI) capabilities and follows ONVIF conformance. Further, the IR dome camera offers IK10 vandal resistance and an IP67 rating.

Weight2 lbs
Resolution

5 Megapixel (2560 x 1960)

Series

Essential Series

Signal Type

Lens

Fixed 2.8mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP67

Edge Storage

,

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI

Behavior Detection

Camera
Sensor1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, manual zoom lens2.8 ~ 12mm, motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
122701085427
Angle of View (H)105.3° ~ 25.4°
Angle of View (V)69.5° ~ 18.4°
Angle of View (O)136.9° ~ 31.2°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 5MP (2592*1944), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Edge StorageMicroSD, up to 256GB
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.7W
Dimensions (Ø x H)Φ148 x 111.3mm (Ø5.8” x 4.4”)
Weight0.92kg (2.0lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported
