CCTV Technology, Essential Products, NDAA Compliant, NDAA Compliant Network Cameras, Network Dome Cameras, Network IP Cameras, Surveillance

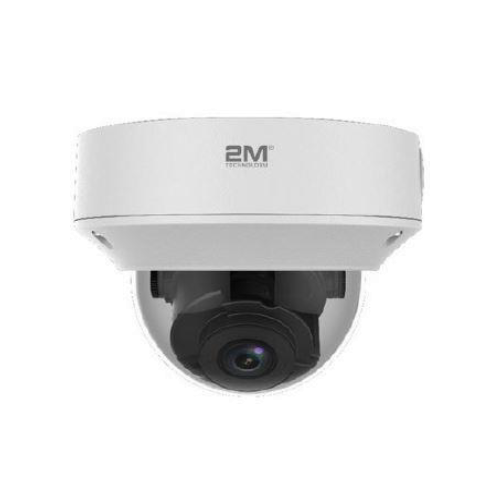

2MVIP-5MIR30Z-E 5MP Motorized Vandal-resistant Network IR Dome Camera
REQUEST QUOTE
- 5MP vandal proof network camera
- 28-12mm, motorized zoom lens
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- IR anti-reflection window to increase the infrared transmittance
Product Documents
The 2M Technology 2MVIP-5MIR30Z-E Motorized Network Dome Camera features Smart IR technology, giving the user up to 30 meters IR distance. Additionally, the motorized camera includes 2D/3D digital noise reduction to ensure quality footage. The dome camera has region of interest (ROI) capabilities and follows ONVIF conformance. Further, the IR dome camera offers IK10 vandal resistance and an IP67 rating.
Optics:
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- IR anti-reflection window to increase the infrared transmittance
Compression:
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Support PoE power supply
- Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IK10 vandal resistant
- IP67
| Weight | 2 lbs |
|---|---|
| Dimensions | 5.8 × 5.8 × 4.4 in |
| Resolution | 5 Megapixel (2560 x 1960) |
| Series | Essential Series |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI |
| Ingress Protection | IP67 |
| Edge Storage |
| CAMERA | |||||||
| Sensor | 1/2.7″, progressive scan, 5.0 megapixel, CMOS | ||||||
| Lens | 28-12mm, manual zoom lens / 28-12mm, motorized zoom lens | ||||||
|
DORI Distance |
Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | |||
| 12mm | 270 | 108 | 54 | 27 | |||
| Angle of View(H) | 105.3° – 25.4° | ||||||
| Angle of View (V) | 69.5° – 18.4° | ||||||
| Angle of View (O) | 136.9° – 31.2° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°-360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON)
0Lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| WDR | DWDR | ||||||
| VIDEO | |||||||
| Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||
| H.264 Code Profile | Baseline profile, Main Profile | ||||||
| Frame Rate | Main Stream:5MP (2592*1944): Max. 20 fps; Sub Stream:720P (1280*720): Max.20 fps; | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| NETWORK | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||||
| Compatible Integration | ONVIF (Profile S), API | ||||||
| INTERFACE | |||||||
| Network | 1 RJ45 100M Base-TX Ethernet | ||||||
| Edge Storage | MicroSD, up to 256 | ||||||
| GENERAL | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 8.7W | |
| Dimensions (Ø x H) | 148 x 111.3mm (Ø5.8” x 4.4”) |
| Weight | 0.92kg (2.0lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F),
Humidity :10%~95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
