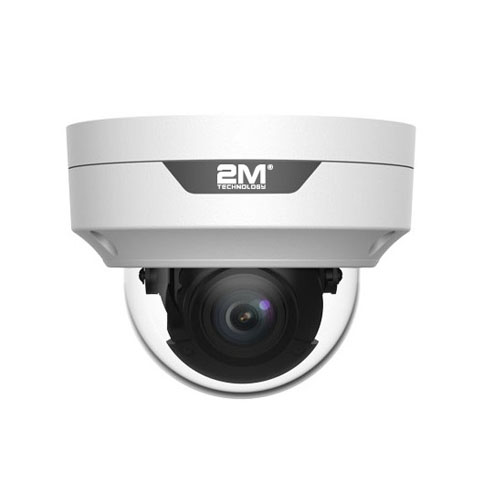

2MVIP-5MIR30Z-GS 5MP Motorized Vandal-resistant Network IR Dome Camera

  • 5MP Resolution
  • Motorized lens
  • Smart IR, up to 30m (98ft) IR distance
  • Vandal resistant
  • MStar Chip
  • NDAA Compliant

Product Documents

The 2M Technology 2MVIP-5MIR30Z-GS Motorized Network Dome Camera features Smart IR technology, giving the user up to 30 meters IR distance. Additionally, the motorized camera includes 2D/3D digital noise reduction to ensure quality footage. The dome camera has region of interest (ROI) capabilities and follows ONVIF conformance. Further, the IR dome camera offers IK10 vandal resistance and an IP67 rating.

Optics

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • 3-Axis
Weight2 lbs
Resolution

5 Megapixel (2560 x 1960)

Series

Essential Series

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI

Ingress Protection

IP67

Edge Storage

,

CAMERA
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
    DORI DistanceLensDetect (m)Observe (m)Recognize (m)Identify (m)
2.863.125.212.66.3
12270.3108.154.127.0
Angle of View (H)96.23°~ 31.69°
Angle of View (V)69.98°~ 24.28°
Angle of View (O)125.10°~37.39°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColor: 0.003Lux (F1.6, AGC ON) 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>56dB
IR RangeUp to 30m (98ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
WDR120dB
VIDEO
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
    Frame RateMain Stream: 5MP (2592x1944), Max 20fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; Sub Stream: 4CIF (704x576), Max 30fps; Third Stream: CIF (352x288), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Vertical/Horizontal/180°
DewarpingNA
HLCSupported
BLCSupported
AUDIO
Audio CompressionG.711
SuppressionSupported
Sampling Rate8KHZ
