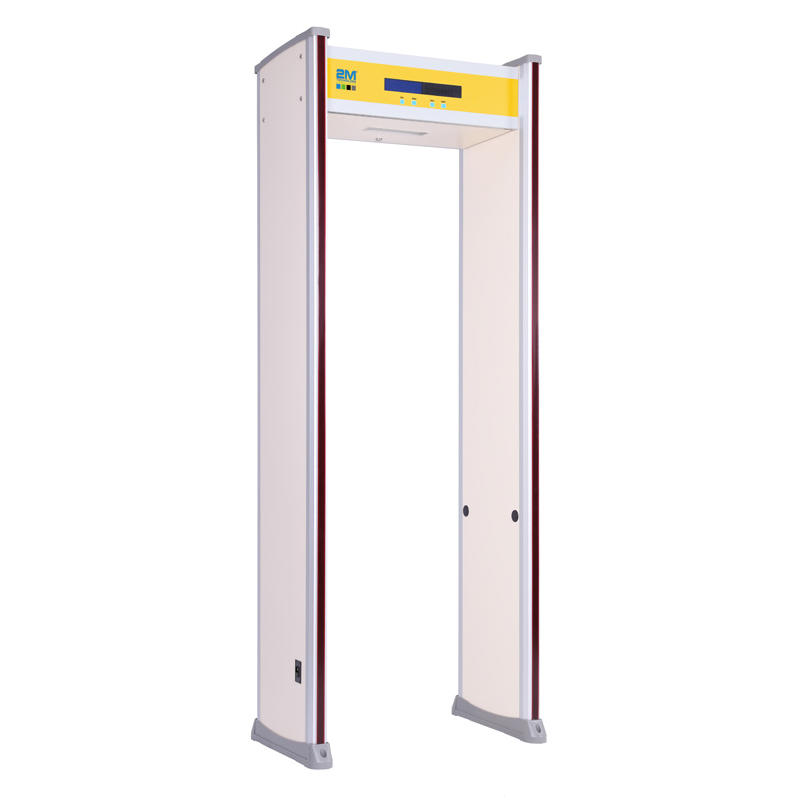

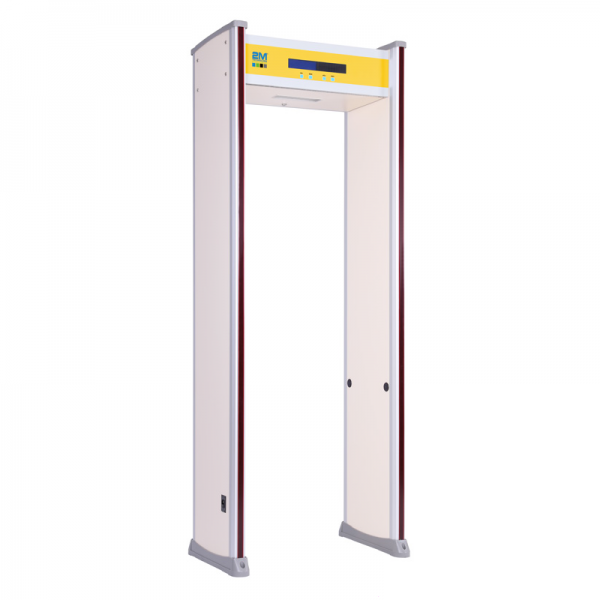

2MWT-i18Z Indoor Rated, 18 Zone Walkthrough Metal Detector with LED Bars

  • Indoor 18 zones
  • ADA Compliant Model Available
  • LCD panel
  • 4 LED bars
  • 18 zones to identify multiple targets

Note: This is a special order item. allow 6-8 weeks for delivery

Product Documents



  • ISO9001, ISO14001, HSMS18001, CE
  • Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
  • In accordance with: EN60950, WN50081-1, EN50082-1
  • Electric safety: EN60950
  • Anti-interference standard: EN50082-1


  • Indoor 18 zones
  • Extremely high sensitivity to find even the smallest of threats
  • Operation: Keyboard and remote control
  • User friendly interface operation for LCD
  • Four LED light bars on both door panels: gives alarm corresponding to the height or human
  • 18 zones identify multiple target locations from head to toe
  • Sensitivity adjustable from Level 0 to 300 High: Can detect a clip; Low: Detects big metal articles such as knives, guns, copper, aluminums, zinc (more than 150g), bypasses metal in belt, buttons and
  • Shock proof to avoid false
  • Sound and light
  • Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
  • Tamper-Proof: operating system is password
  • Adjustable operating frequencies: Helps eliminate the potential interference from X-ray units, radios and other electrical
  • Mix distance between two walkthroughs: 3 meters at low sensitivity, 0.5 meters at high sensitivity
  • Harmless to pregnant women and patients with pacemakers
  • ADA Compliant
  • WIFI Network Capability option available
  • Connect with computer, camera, turnstile, etc… (optional)
Weight 209.4 lbs
Dimensions 87.4 × 32.3 × 20.6 in
Zone Options 18 zones options
Operation Keyboard and remote control
LED Lights 4
Display LCD
Pinpoint Zones 6 to identify multiple target locations head to toe
Tracking Traffic and alarm counters that calculate traffic flow and resultant alarms
Alarm Audible and Light Alerts
Adjustable Sensitivity From Level 0 to 300 High
Tamper Proof Yes
Operating Frequencies Adjustable
Distance Mix distance between two walkthroughs from 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
Safety Harmless to pregnant women and pacemakers
Electrical Current AC215V~230V; 50/60Hz
Power 35W
Work Environment -20°C~+45°C
Gross Weight 209.4 lbs
Outer Frame 2220mm (h) x 820mm (w) X 522mm (d) 87.4" x 32.3" x 20.6" (HxWxD) (inches)
Inner Frame 2000mm (h) X 700mm (w) X 522mm (d) 78.7" x 27.6" x 20.6" (HxWxD) (inches)
