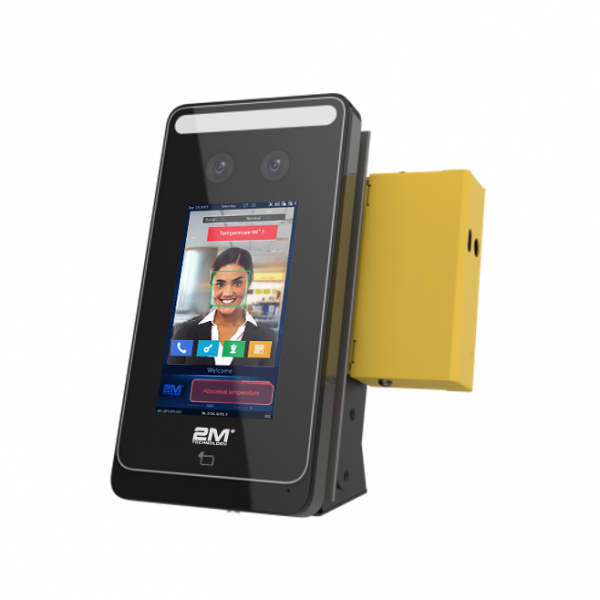

2MWTK-MINI 4″ Mini Contactless Face Recognition Terminal with Wrist Temperature Screening

  • NON-contact detection measure temperature on the wrist
  • Alerts when there are people with abnormal body temperature
  • Notifications via email of high temperature fever with a snapshot of that person
  • Temperature accuracy of 0.3° to 9°
  • Device auto calibration of surrounding environment
REQUEST DEMO

Special order item. Allow 4-6 weeks for delivery.

Product Documents

  • 2MWTK-MINI – 4″ Mini Contactless Face Recognition Terminal with Wrist Temperature Screening
  • Features:
  • NON-contact detection measure temperature on the wrist
  • Alerts when there are people with abnormal body temperature
  • Notifications via email of high temperature fever with a snapshot of that person
  • Temperature accuracy of 0.3° to 0.9°
  • Device auto calibration of surrounding environment
  • Records up to 10,000 employee faces to match and grant/deny access, up to 6 photos per employee
  • Fastest face recognition scanner in the market, scans with 0.2 seconds
  • Wide dynamic range to assure background light compensation for better temperature accuracy reading and face identification
  • Two-way audio supports remote live video monitoring back to control station and provides audible direction to person being scanned
  • Anti-spoofing: Deep learning using artificial intelligence algorithm to protect against using videos or pictures
  • Supports body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
  • Temperature detection threshold value can be adjusted, and personnel access authorization can be configured through temperature detection threshold value
  • Deep learning algorithm model based on 2M Technology’s independent intellectual property rights, face recognition accuracy rate >99%, false rate <1%
  • Built-in deep learning dedicated chip, supports local off-line recognition, up to 10,000 face storage capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Face and people metering for fast adapting to ambient light
  • Suggested height for face recognition: between 0.8m and 2.2m, face recognition distance: 0.2m to 2.9m
  • Screen sleep mode, keep the minimum brightness to prevent glare at night
  • Add up to 6 photos of the base library for a single person
  • Video capture, support ONVIF protocol
  • Supports face, card, password and QR code authentication to control door open
  • Built-in 4G EMMC front end storage, stable and reliable, up to 30,000 events capacity (with images)
  • Tamper protection, support door open timeout and time exceed alarm function to keep door opening during fire alarm active
  • Optional 2M-TFS Terminal Floor Stand
    – Weight 15.1 Lbs
    – Dimensions (LxWxH): 11″ x 8.7″ x 45.6″ (in) / 280 x 222 x 1158 (mm)
  • Audio prompts
  • Supports AD mode
  • APP alarm notification

Special order item. Allow 4-6 weeks for delivery.

Operation SystemLinux
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C – 45°C / 86°F – 113°F
Measurement Accuracy0.1°C
Measurement Deviation≤0.3°C
Measurement Distance1cm – 4cm




Authentication Mode

Face Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Door Opening MethodFace, Password, QR code, Card
Communication Mode10/100Mbps adaptive network port
Card TypeMifare 1 Card
User ManagementSupport user library addition, deletion, update
Record ManagementSupport local recording and real-time upload










Interface

1x LAN

1x Wiegand Input 1x Wiegand Output 1x RS485

2x Alarm Input 2x Alarm Output 1x USB2.0

1x Lock

1x Door Contact 1x Exit Button

Power SupplyInput 12V±25% DC
Power Consumption<25W
ScreenTouch Screen, Size: 4 inch, Resolution: 480×800
Camera2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (L×W×H)134.0 x 33.0 x 305.0 (mm)


Working Environment

For terminal: -10°C – 50°C / 14°F – 122°F, Relative Humidly<95% (non-condensing) For module: 10°C – 40°C / 50°F – 104°F
Protection LevelBoth terminal and module: IP 54
Application SituationIndoor, No wind
