2MWTK Non-contact Wrist Temperature and Face Recognition Screening System

  • Automatic temperature measurement
  • Accurate temperature measurement

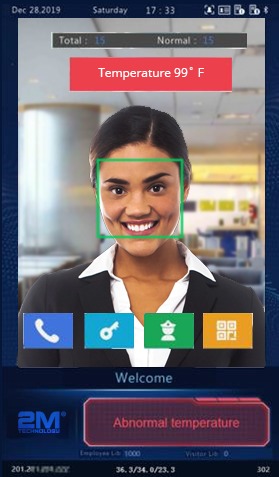

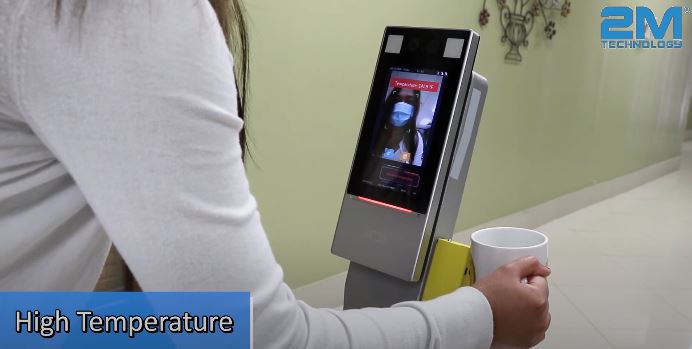

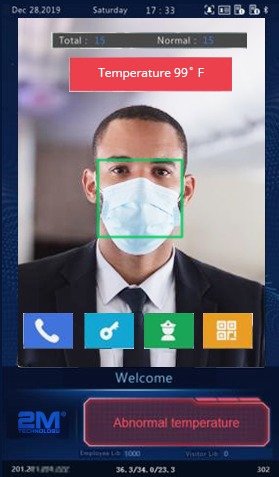

  • Real-time alarm of people with fever
  • Real-time snapshot of human face during temperature measurement

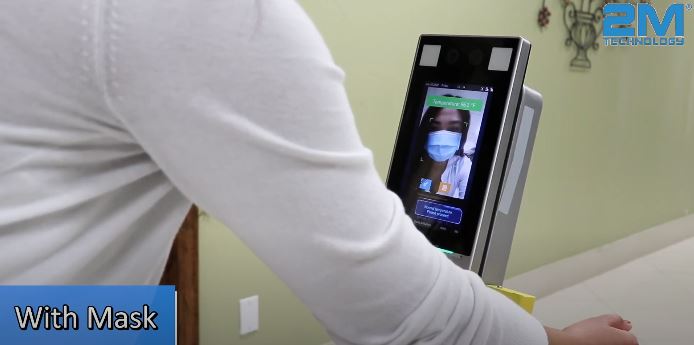

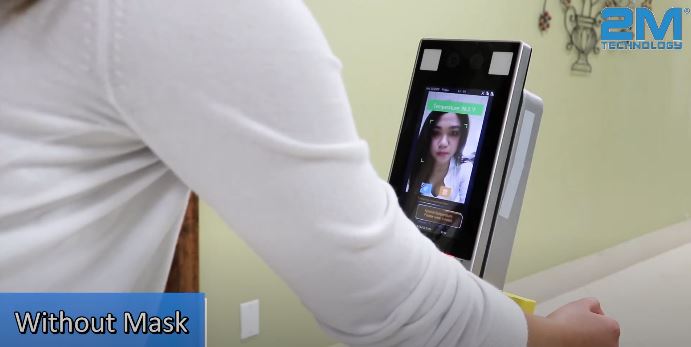

  • Support no mask reminder
REQUEST DEMO

Product Documents

2MWTK’s digital detection face recognition access control terminal is a kind of access control device with precise recognition rate, large storage capacity and fast recognition, which integrates 2M’s face recognition technology and non-contact temperature detection technology. The digital detection module supports rapid body temperature detection. Thus, the product can achieve face recognition and temperature detection at the same time, and support warning people with abnormal body temperature. It can be widely applied in the crowded places, such as smart communities, schools, office buildings, hospitals and other important areas.

FEATURES:

  • Support non-contact detection of wrist temperature, support warning people with abnormal body temperature
  • Support body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
  • Support configure temperature detection threshold value, and personnel access authority can be configured through temperature detection threshold value
  • Non-contact wrist temperature detection module, measurement range is between 30°C to 45°C, measurement accuracy can reach 0.1°C, measurement deviation is less than or equal to 3°C, and measurement distance is between 1cm to 3cm
  • Deep learning algorithm model based on 2M Technology’s independent intellectual property rights, face recognition accuracy rate >99%, false rate <1%
  • Built-in deep learning dedicated chip, supports local offline recognition, 10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and 6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Supports anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
  • Face and people metering for fast adapting to ambient light
  • Suggested height for face recognition: between 8m and 2.2m, face recognition distance: 0.2m to 2.9m
  • Screen sleep mode, keep the minimum brightness to prevent glare at night
  • Add up to 6 photos of the base library for a single person
  • Video capture, support ONVIF protocol
  • Supports face, card, password and QR code authentication to control door open
  • Two-way audio with indoor monitor
  • Built-in 4G EMMC front end storage, stable and reliable, up to 30,000 events capacity (with images)
  • Tamper protection, support door open timeout and time exceed alarm function to keep door opening during fire alarm active



Weight8 lbs
Operation SystemLinux
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C – 45°C
Measurement Accuracy0.1°C
Measurement Deviation≤0.3°
Measurement Distance1cm-3cm


Authentication Mode

Face Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Door Opening MethodFace, Password, QR code, Card
Communication Mode10/100Mbps adaptive network port
Card TypeMifare 1 Card
User ManagementSupport user library addition, deletion, update
Record ManagementSupport local recording and real-time upload




Interface

LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1
Power SupplyInput 12V±25% DC
Power Consumption<25W
ScreenTouch Screen, Size:7 inch, Resolution: 600×1024
CameraDual Lens, 2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (L×W×H)134.0 x 33.0 x 305.0 (mm)
