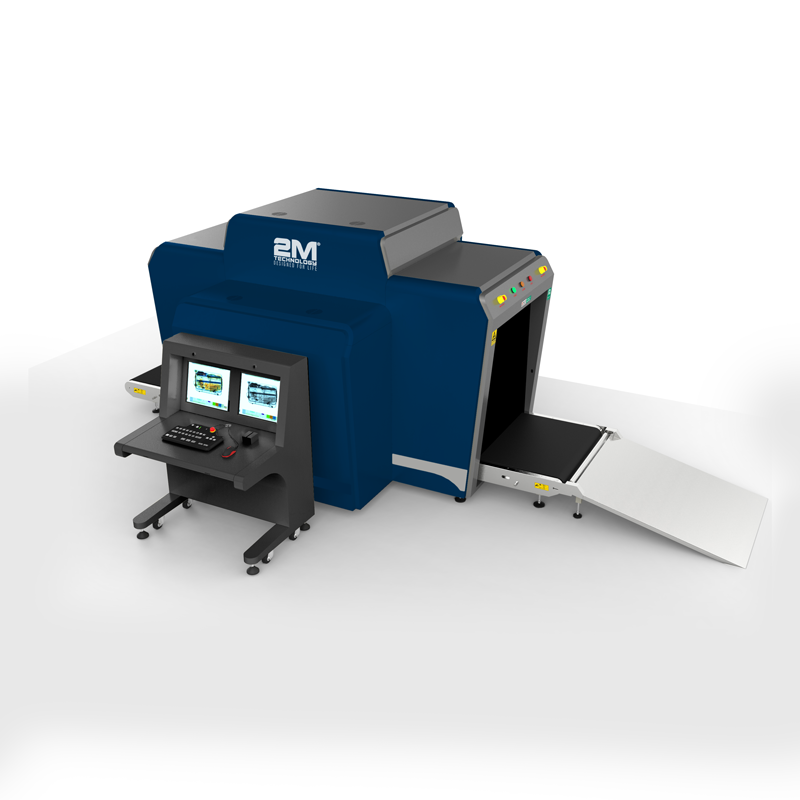

2M Technology 2MX-100100HI Large Luggage Boxes X-Ray Scanner

  • Dual view technology with images from two angles
  • Radiation safe
  • High resolution, high penetration and good image quality
  • Multilingual operation
  • Automatic built in test and self-diagnosis

Product Documents

The 2MX-100100HI is a specially designed x-ray inspection system with a tunnel opening of 39.37″ x 39.37″ inches. With the dual view technology, it shows clear images of both vertical and horizontal angles. It is used widely for screening large baggage and parcels at all security sites, including airports and customs locations.

Features:

  • Dual view technology with images from two angles
  • Radiation safe
  • High resolution, high penetration and good image quality
  • Multilingual operation
  • Automatic built in test and self-diagnosis
  • High load-bearing capacity
  • Threat alert and material classification
  • Energy saving design
  • One key turn off with patent
  • Drugs and explosives detection
  • Sens-Tech detection board and Hamamatsu detector
Weight2380.992 lbs
PHYSICAL SPECIFICATIONS
Tunnel Size39.65″(W) x 39.69″(H) inches
Unit Weight2976.24 lbs
Unit Size153.9″(L) x 70.24″(W) x 79.94″(H) inches
Gross Weight3527.4 lbs
Packing Size#1: 115.75″ x 85.83″ x 85.04″ inches

#2: 44.09″ x 35.43″ x 55.5″ inches

GENERAL SPECIFICATIONS
Conveyor Speed0.22 m/s forward or backward
Conveyor Height12.17″ in
Conveyor Capacity440.93 lbs


Frame Design

304 stainless steel, 2-5 mm cold rolled plate and square steel, double-layer staggered lead

impregnated safety curtain

X-Ray Dose/Inspection≤4.8μGy


X-Ray Leakage

≤0.5μGy/h at any point 5 cm outside the external surface. FDA standard is ≤5μGy/h
Steel Penetration32mm guaranteed
Wire ResolutionHorizontal AWG38 / Vertical AWG36 guaranteed
Penetration ResolutionAWG30 guaranteed
Spatial Resolution:1.3mm Horizontal, 1.3mm Vertical
Power ConsumptionMax. 1.5KW
Noise<60 dB
Film SafetyGuarantee ASA/ISO1600 Film
X-RAY GENERATOR (TWO)
Anode Voltage160 KV
Beam DirectionVertical and Horizontal
Cooling / Duty CycleSealed oil cooling /100%
COMPUTER AND OTHER
Monitor2 17-inch LCD monitors, 1280 x 1024
ConsoleA console which can lock the display and keyboard
CPUIntel (R) i3 (R) 3.3GHz
RAM4GB
Hard Disk2T
KeyboardSpecial designed
PlatformWindows 10
BackupUninterrupted Power Supply
Electric RollerThree-phase
X-RAY GENERATOR (TWO)
Anode Voltage160 KV
Beam directionVertical and Horizontal
Cooling / Duty CycleSealed oil cooling /100%
OPERATING ENVIRONMENT
OPS Temperature/ Humidity5°C-40°C; 0%-90%(non-condensing)
Storage Temperature/ Humidity

-20°C to 60°C; 10%-90%(non-condensing)

Operation Power220V(+10% ~ -15%) 50±3Hz Options: 100-130V, 200-250V, 60Hz
UPS for the equipmentOptions: 15mins, 30mins, 60mins etc



IMAGING SYSTEM
Detector4352 channels in two L-Shaped Arrays






Image Processing

Color / black and white imaging, local enhancement, high penetration, low penetration, super enhancement, organic stripping, inorganic stripping, reverse color, brightening, darkening, gray level change/variable con- trast, continuously zoom maximum 64x, pseudo color imaging, organics enhancement, suspicious item alarm and notation, edge enhancement imaging, etc.
Explosives & Narcotics DetectionSuspicious organics highlight (atomic number Zeff=7,8,9)
Suspicious AlarmAlarm and box line the suspicious objects including hard to penetrate material, explosives and drugs


Threat Image Projection (TIP)

Inserting fictional, but realistic images of threat items into baggage during screening operation, for mainte- nance of vigilance, as well as training and assessment of image identification capability
Image Pullback30 images


Image Archive

Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other formats




Miscellaneous Functions

Time/date display, counters, user management, system- on/x-ray-on timers, power on self test, built-in diag- nostic facilities, bi-direction scanning, forced scanning, image search and export, system setting, system log, system standby and stimulant training,etc.


Options

Intelligent roller, remote work station, network integra- tion, video monitoring, face recognition and baggage integration, recheck station, additional roller table, etc.
