Public schools face increasing security concerns, from violence such as shootings or gang activity to prohibited items like drugs or vaping devices. One of the most effective ways to create a safer learning environment is by installing X-ray baggage scanners for schools at main entry points. These scanners allow security staff to quickly detect weapons, contraband, or other prohibited items without invasive searches. But not all scanners are the same. Schools need solutions that are easy to operate, reliable, and cost-effective. Here are 2M Technology’s top 3 X-ray baggage scanners for schools, along with key X-ray scanner specifications you need to know before making a decision.
Why Do Schools Need X-Ray Baggage Scanners?
According to the National Center for Educational Statistics, 67% of public schools reported at least one violent incident during the 2021–2022 school year. To help prevent such incidents, district administrators can enhance safety by using X-ray baggage scanners for schools. These scanners provide effective screening to ensure students cannot bring weapons or other dangerous items onto campus.
- Enhance student safety: Identify weapons or dangerous objects before they enter campus.
- Speed up entry screening: Quickly scan backpacks and bags without causing long delays.
- Reduce manual checks: Less intrusive for students and staff.

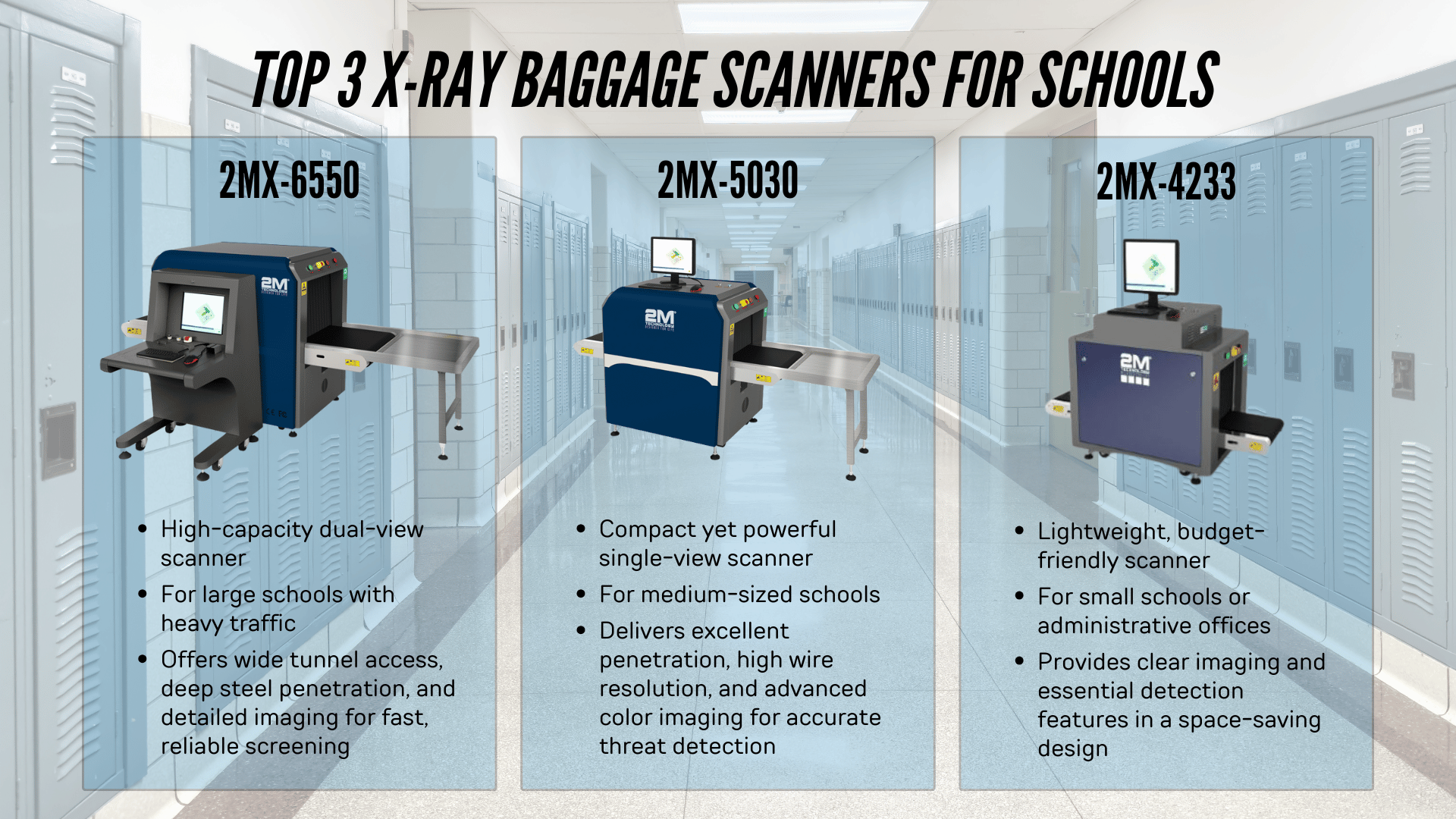

2M’s Best X-Ray Baggage Scanners for Schools
Now, let’s look at the best X-ray baggage scanners for schools based on traffic volume, space, and budget.
2MX-6550 X-Ray Baggage Scanner with Single View Station
The 2MX‑6550 is a high-capacity X‑ray baggage scanner built for busy school entry points and large campuses. Its wide tunnel easily accommodates larger backpacks, sports bags, and instrument cases. Dual-view imaging and deep steel penetration give operators a comprehensive view of dense or complex items. This X-ray baggage scanner is perfect for high-traffic areas since it provides fast, thorough screening without slowing down the flow of students.
Key Features:
- Tunnel Size (W x H): 658 x 490 mm (25.9″ x 19.3″)
- X-Ray Generators: Dual
- Anode Voltage: 140 kv
- Steel Penetration: 30 mm (1.2″)
- Penetration Resolution: AWG32
- Wire Resolution: Horizontal AWG38; Vertical AWG36
- Spatial Resolution: Horizontal 1.3 mm; Vertical 1.0 mm
- Dimensions (L x W x H): 2195 x 902 x 1362 mm (86.4″ x 35.5″ x 53.6″)
- Conveyor Speed: 0.23 m/s forward or reverse
- Conveyor Load Capacity: 150 kg (330.7 lb)
- Best for: Medium to large schools that need high accuracy and detailed imaging for heavy traffic entry points.
2MX-5030 X-Ray Baggage Scanner with Single Monitor
The 2MX‑5030 is a compact yet powerful X‑ray baggage scanner for schools with moderate traffic or limited space. It offers clear, detailed imaging with advanced color filtering to help operators easily identify threats. With excellent steel penetration and high wire resolution, it ensures reliable detection of concealed items, making it a dependable choice for medium-sized campuses or single-entry checkpoints.
Key Features:
- Tunnel Size (W x H): 503 x 295.5 mm (19.8″ x 11.64″)
- X-Ray Generator: Single
- Anode Voltage: 140 kV
- Steel Penetration: 32 mm
- Penetration Resolution: AWG32
- Wire Resolution: AWG40
- Spatial Resolution: Horizontal 1.0 mm; Vertical 1.0 mm
- Dimensions (L x W x H): 1660 x 746 x 1165 mm (65.4″ x 29.4″ x 45.9″)
- Conveyor Speed: 0.22 m/s
- Conveyor Load Capacity: 100 kg (220.5 lb)
- Best for: Medium schools needing reliable scanning with excellent penetration, clarity, and archival capability.

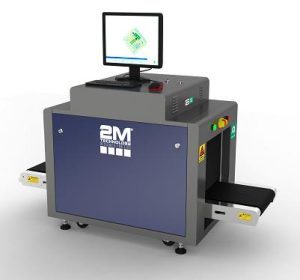

2MX-4233 X-Ray Baggage Inspection Scanner
The 2MX‑4233 is a lightweight, budget-friendly X‑ray baggage scanner ideal for small schools, administrative offices, or temporary checkpoints. Its compact design makes it easy to deploy in tight spaces, while clear imaging and essential detection features provide reliable security for low-traffic areas.
Key Features:
- Tunnel Size (W x H): 420 x 330 mm (16.54″ x 12.99″)
- X-Ray Generator: Single
- Anode Voltage: 80 kv
- Steel Penetration: 8 mm
- Penetration Resolution: AWG32
- Wire Resolution: AWG40
- Spatial Resolution: Horizontal 1.3 mm; Vertical 1.0 mm
- Dimensions (L x W x H): 1531 x 668 x 860 mm (60.28″ x 26.30″ x 33.86″)
- Conveyor Speed: 0.22 m/s
- Conveyor Load Capacity: 50 kg (110 lb)
- Best for: Small schools, administration buildings, or visitor screening areas with low to moderate traffic.
Understanding Key X-Ray Baggage Scanner Specs
When comparing X-ray baggage scanners for schools, it’s important to understand what the specifications mean.
- Tunnel size: The opening where bags and items pass through for scanning. X-ray baggage scanners for schools with larger tunnels can handle bigger backpacks or packages.
- Conveyor speed: How fast bags move through the scanner.
- Steel penetration: How thick of a steel object the X-ray can “see” through while still producing a clear image. Higher penetration means better detection of dense objects like weapons hidden inside books or electronics.
- Penetration resolution: Shows how well the scanner can detect fine details even when objects are inside dense materials like steel or aluminum. Measured by how clearly a thin wire can be seen under heavy shielding.
- Wire resolution (AWG): The smallest diameter wire the scanner can detect. Better wire resolution means it can reveal small, hidden threats like detonators, razors, or knife blades.
- Spatial resolution: How sharp and detailed the image is, like the “pixel clarity” for X-ray images. It’s the scanner’s ability to distinguish two small objects very close together (as little as 1 mm apart). Higher spatial resolution makes it easier to tell harmless items, like pens, from dangerous ones, like knives.
- Dual-view vs. single-view generator: A single‑view scanner captures one X‑ray image from one angle, while a dual‑view scanner captures two images from different angles at the same time. Dual-view scanners are more accurate and reduce the need to manually rescan suspicious items.
- Imaging modes: Different visual filters help operators detect threats more easily.
- Color: Shows organic materials (like food or paper) in orange, metals in blue, etc.
- Black/White: Focuses on shapes instead of colors.
- Organic/Inorganic stripping: Filters out certain materials to reveal hidden threats.
- Pseudo-color: Enhances contrast for better visibility.
- Edge enhancement: Sharpens outlines of objects for clarity.
Which X-Ray Scanner Is Right for Your School?
| Model | Image | Tunnel Size (W × H) | Conveyor Speed | X-Ray Generator | Steel Penetration | Penetration Resolution | Wire Resolution | Spatial Resolution |
|---|---|---|---|---|---|---|---|---|
| 2MX-6550 | |
658 × 490 mm (25.9″ × 19.3″) | 0.23 m/s forward or reverse | Dual-View 140 kV |
30 mm | AWG32 | Horizontal: AWG38 Vertical: AWG36 |
Horizontal Dia.: 1.3 mm Vertical Dia.: 1.0 mm |
| 2MX-5030 |  |
503 × 295.5 mm (19.8″ × 11.64″) | 0.22 m/s | Single-View 140 kV |
32 mm | AWG32 | AWG40 | Horizontal Dia.: 1.0 mm Vertical Dia.: 1.0 mm |
| 2MX-4233 |  |
420 × 330 mm (16.54″ × 12.99″) | 0.22 m/s | Single-View 80 kV |
8 mm | AWG32 | AWG40 | Horizontal Dia.: 1.3 mm Vertical Dia.: 1.0 mm |
- 2MX‑6550: Best for large schools with heavy traffic needing the most detailed imaging.
- 2MX‑5030: Perfect for medium schools balancing space, budget, and detection power.
- 2MX‑4233: Ideal for small campuses or administrative areas where space and cost are priorities.
Investing in the right X-ray baggage scanners for schools helps create a safer environment for students, staff, and visitors. Want to improve your school’s security with reliable X-ray baggage scanners for schools? Contact 2M Technology today at +1 (214) 988‑4302 or sales@2mtechnology.net for a free consultation or same-day quote.
