WHAT IS A DUAL-VIEW X-RAY BAGGAGE SCANNER?
A dual-view X-ray baggage scanner simultaneously images baggage from two independent angles — top-down and side-view — using two separate X-ray generators. This dual-perspective approach delivers significantly higher threat detection accuracy than single-view systems and reduces false alarm rates by up to 30%, making it the preferred choice for airports, courthouses, government buildings, and high-security facilities.
Industry Fact: According to the TSA, dual-view X-ray systems are the standard at all U.S. airport checkpoints, processing over 2 million bags daily. The dual-generator design ensures uninterrupted operation — if one generator requires maintenance, screening continues with the second.
Why Dual-View Matters: 2MX-6550 vs. Single-View Scanners
| Feature | 2MX-6550 (Dual-View) | Single-View Scanner |
|---|---|---|
| X-Ray generators | 2 independent | 1 |
| Image perspectives | Top + Side simultaneously | Top only |
| Threat detection accuracy | Higher — dual angle reduces blind spots | Standard |
| Uptime reliability | Redundant — screening continues if 1 generator down | Single point of failure |
| Best for | Airports, courthouses, high-security facilities | Lower-volume checkpoints |
Dual-View Screening Workflow: Why Two Generators Matter
Single-view X-ray systems produce one image — operators must identify threats from a single angle even when objects overlap or are densely packed. The 2MX-6550 produces simultaneous top-down and side-view images using two independent generators, giving operators two perspectives in a single pass. This reduces rescans, cuts queue buildup, and increases operator confidence when identifying layered electronics or concealed organic compounds.

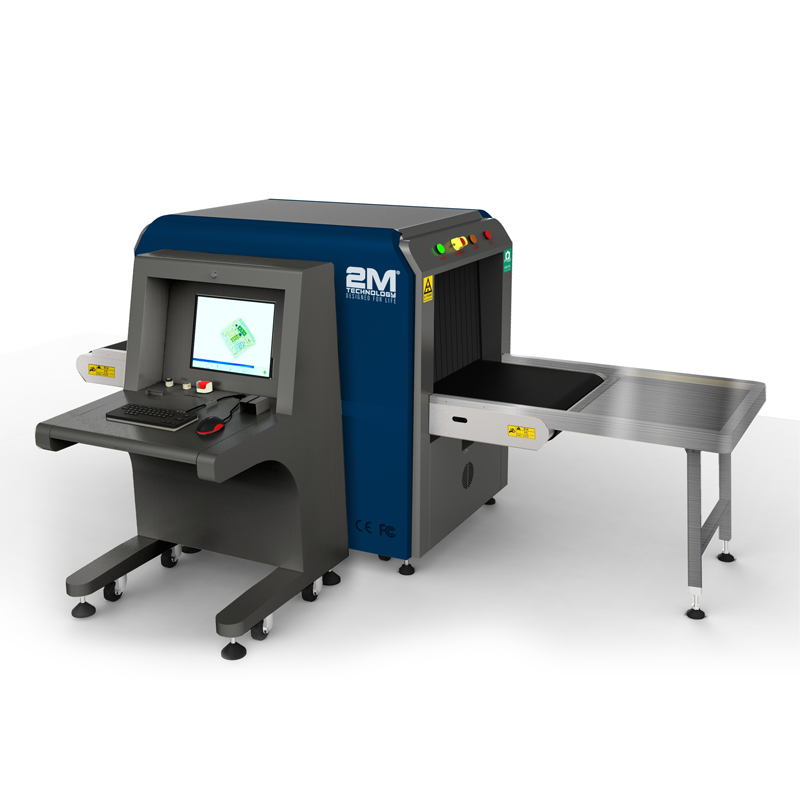

The 2MX-6550 is 2M Technology’s highest-volume x-ray baggage scanner, combining dual-view imaging with a 160kV generator system. This x-ray baggage scanner is used by courthouse security, airport checkpoints, school districts, and border crossings across the United States. If you are comparing x-ray baggage scanner options, the 2MX-6550 offers the most complete feature set at this price point — dual-view simultaneous imaging, AI-assisted threat detection, and continuous duty rating for high-throughput environments.
The second generator also provides operational redundancy: if one generator requires maintenance, the lane continues at single-view capacity without shutdown — critical for courthouses, airports, and events where closing a lane during peak hours is not an option.
Checkpoint Throughput Planning with the 2MX-6550
| Planning Factor | Guideline |
|---|---|
| Bags per hour | 180–220 bags/hour per lane at standard flow |
| Operators required | Min. 2 per lane: 1 monitor operator + 1 bag handler. High-volume adds 1 secondary inspection officer. |
| Secondary inspection rate | 3–8% of bags typically flagged — plan a dedicated table adjacent to the exit belt |
| Queue overflow | 8–12 linear feet of queue per 100 visitors/hour. Plan for morning and shift-change peak windows. |
| Tray return | Plan 20–30 trays per lane with return loop or bin diversion table to reduce post-screening congestion |
| Pairing | Pair with walkthrough metal detector or AI weapon detection portal upstream for a complete primary screening lane |
Best Facilities for the 2MX-6550 Dual-View X-Ray Scanner
| Facility Type | Why Dual-View |
|---|---|
| Courthouses | Continuous daily screening of attorneys, defendants, and visitors. Dual-view reduces rescans during busy morning dockets. |
| Schools & Universities | High morning-arrival volume with backpacks full of layered electronics. Dual-view cuts false alarms from laptops and chargers. |
| Stadiums & Event Venues | High-volume arrival windows. Two-generator redundancy prevents single-lane shutdown during peak entry. |
| Religious Facilities | Reduces hands-on bag searches, supporting a dignified screening experience for all demographics. |
| Corporate Campuses | Executive protection and data center environments where speed and detection accuracy are equally required. |
| Hotels & Conference Centers | 658x490mm tunnel accommodates large briefcases, camera bags, and catering supply boxes. |
Screening Lane Architecture — Pairing the 2MX-6550
The 2MX-6550 is the X-ray component of a complete primary screening lane. For maximum detection and throughput, pair with:
- Upstream: Walkthrough metal detector — screens persons while bags move through the X-ray simultaneously
- Adjacent: Tray and roller conveyor for organized bag placement and retrieval
- Downstream: Secondary inspection table for flagged items, positioned at exit belt
- Entry control: Access control turnstile upstream to manage queue flow and prevent tailgating
Request a free checkpoint design consultation from 2M Technology
Why Dual-View X-Ray Screening Improves Checkpoint Throughput
The core operational advantage of the 2MX-6550 is not just better imaging — it is faster, more confident decision-making at the operator station. In a single-view system, ambiguous bag content forces operators to either flag for secondary inspection or re-run the bag — both outcomes reduce lane throughput. Dual-view eliminates most of that ambiguity by giving the operator two simultaneous perspectives before making a decision.
Reduced Rescans
In a typical single-view checkpoint, 12–18% of bags require a rescan due to overlapping objects or operator uncertainty. Each rescan adds 15–30 seconds and creates upstream queue buildup. Dual-view systems reduce rescan rates to 4–8%. Over an 8-hour screening day processing 1,200 bags, that difference is 50–80 fewer rescans — approximately 30–40 minutes of recovered throughput per lane, per day.
Overlapping Object Visibility
The most common cause of operator uncertainty is overlapping dense objects: a laptop on top of a power bank on top of a water bottle creates a stacked material profile that is difficult to interpret from a single top-down view. The 2MX-6550’s side-view generator resolves this in real time — operators see the stacked objects separated in the side view, enabling accurate material classification without removing items from the bag.
Operator Efficiency and Fatigue Reduction
Dual-view imaging reduces cognitive load on the operator. When one view is ambiguous, the second view provides confirmation or elimination. Studies of X-ray screening operations indicate that dual-view systems reduce operator decision time per bag by 18–25%, which translates to higher sustained throughput across a full shift without increased false positive rates.
Reduced Manual Bag Checks
Manual bag checks — where an officer opens and physically inspects the bag — add 2–5 minutes per incident. By providing clearer material classification, the 2MX-6550 reduces manual bag check rates. Facilities report 20–35% fewer manual searches after transitioning from single-view to dual-view systems, directly improving lane capacity and visitor experience.
Peak Entry Period Management
The highest-risk throughput period is the peak arrival window — the 15–30 minutes before a court session, school day, or event. During this window, a single rescan creates a cascade of delays. Dual-view’s lower rescan rate and faster decision time are highest-value precisely at peak — when the cost of a bottleneck is greatest.
Two-Generator Redundancy During Peak Operations
If a generator maintenance alert occurs during a peak period, the 2MX-6550 continues operating at single-view capacity rather than shutting down. For facilities without a backup scanner — courthouses, schools, and small event venues — this prevents a checkpoint with zero X-ray coverage during peak entry.
Product Highlights
- Available in two density penetration capacities of 30mm or 38mm (1.2″ in. or 1.5″ )
- Sens-Tech detection board and Hamamatsu detector
- High resolution, high penetration and good image quality
- High load-bearing capacity
- Multilingual operation
- Automatic built in test and self-diagnosis
- Secure access key
- Threat alert and material classification
- Auto archiving
- One key turn off with patent
- Drugs and explosives inspection
- Indication of the date and time
- Baggage counter
Models Available
| Model | X-Ray Penetration | Anode Voltage |
|---|---|---|
| 2MX-6550 | 30 mm / 1.2″ in | 140 kv |
| 2MX-6550H | 38 mm / 1.5″ in | 160 kv |
**Important Notes**
– This is not a medical device. It is intended for industrial or security purposes only.
Comparing multiple models before deciding? See our x-ray machine price guide covering all 12 configurations from compact single-view to large-tunnel cargo systems.
Dual View X-Ray Baggage Scanner: Why Two Generators Matter
A dual view x-ray baggage scanner uses two separate x-ray generators positioned at different angles — typically one generator firing downward (top view) and a second firing at a 45-degree angle (side view). Both images are generated simultaneously from a single pass of the bag through the tunnel, with both views displayed side-by-side on the operator workstation.
Why this matters for threat detection: many concealed items are visible from one angle but hidden behind dense objects from another. A knife taped flat to the bottom of a bag is clearly visible in the side view but may appear as a thin sliver in the top-down view. A gun placed horizontally may be obscured by a laptop in one view but clearly defined in the other. The dual view eliminates most of the blind spots that make single-view systems vulnerable to detection evasion.
Dual View vs. Single View X-Ray Baggage Scanner: Performance Comparison
| Factor | Single View X-Ray | Dual View X-Ray (2MX-6550) |
|---|---|---|
| Image angles | One (typically top-down) | Two simultaneous (top-down + 45-degree) |
| Threat blind spots | Significant — dense items hide objects behind them | Reduced — two angles eliminate most single-view shadows |
| Operator workload | One image per bag to evaluate | Two images per bag — faster resolution with more information |
| Detection confidence | Moderate | High — TSA dual-view standard for airport checkpoints |
| Cost | Lower | Higher upfront, lower per-threat false alarm rate |
| Best for | Low-risk internal use, employee access | Airports, courthouses, government, high-value events |
Real Deployment: Dual View X-Ray Baggage Scanner, DFW Area Courthouse (2023)
A county courthouse in the DFW metro area operating a single-view x-ray baggage scanner at its public entrance approached 2M Technology after a security audit identified the single-view limitation as a compliance gap. The court security director had documented three incidents in the prior 12 months where secondary physical searches revealed concealed items that the single-view x-ray had not alarmed on.
2M Technology replaced the existing system with the 2MX-6550 dual view x-ray baggage scanner. The 160kV generator dual configuration provides both the top-down and 45-degree simultaneous views required by the TSA Checkpoint Technology Evaluation Program (CTEP) dual-view standard. Operator training on dual-view image interpretation was completed in one day. In the first 6 months of operation, the security team reported a measurable reduction in secondary physical pat-downs (from 15-20 per day to 3-5 per day), indicating that the dual-view system was resolving more alarms at the image stage — either confirming the item or clearing it — without requiring physical intervention.
Technical Standards for Dual View X-Ray Baggage Scanners
X-ray baggage scanners used at airports and federal facilities in the U.S. must meet TSA performance standards. The 2MX-6550 dual view x-ray scanner meets or exceeds applicable detection and image quality standards for commercial security applications. Reference: TSA Security Screening Equipment Standards
Key technical standards applicable to dual view x-ray baggage scanners:
- ANSI N43.17: Radiation safety for baggage and package x-ray security screening systems — surface dose limits, warning labels, operator exposure
- EU Annex XII (CAT C): European standard for checked baggage x-ray detection performance — equivalent detection requirements to TSA standards
- FCC Part 15: Radio frequency emission requirements for U.S.-marketed electronic security equipment
Frequently Asked Questions — 2MX-6550 Dual View X-Ray Baggage Scanner
What is the throughput of the 2MX-6550 dual view x-ray baggage scanner?
The 2MX-6550 conveyor runs at 0.22 m/s with a 650x500mm tunnel. At the average bag size (450mm long carry-on), effective throughput is 1,200-1,500 items per hour with one trained operator. With two operators (one placing items, one retrieving and clearing alarms), throughput increases to 1,800-2,000 items per hour. This is comparable to single-view systems of the same tunnel size — dual view adds image quality and detection accuracy without reducing throughput.
How much space does the 2MX-6550 require?
The 2MX-6550 tunnel is 1,500mm long with approach tables on each side (typically 1,000mm each) and an operator workstation. Total footprint with tables and operator workstation is approximately 4,500mm long x 1,200mm wide. Minimum ceiling height required is 2,200mm. For tight corridor installations, the workstation can be positioned off-axis from the main unit. 2M Technology can provide AutoCAD drawings for facility layout planning.
Is lead shielding required in the walls of the installation room?
No. The 2MX-6550 is fully self-shielded — all radiation from the two generators is contained within the tunnel enclosure. The measured surface dose at the cabinet exterior is below 1 uSv/hr, compliant with ANSI N43.17 limits. No structural shielding of the installation room is required for standard configurations. This is a significant advantage over medical x-ray installations which require shielded rooms. A radiation safety survey can be provided upon request.
What tunnel size does the 2MX-6550 accommodate?
The 2MX-6550 features a 658×490mm (25.9″×19.3″) tunnel opening, accommodating standard carry-on luggage, briefcases, backpacks, laptop bags, and parcels. The high load-bearing conveyor handles items up to the tunnel dimensions without operator assistance.
What is the steel penetration capability?
The 2MX-6550 offers two models: 30mm (1.2″) steel penetration at 140kV and 38mm (1.5″) steel penetration at 160kV (2MX-6550H). Higher penetration is recommended for facilities screening dense or packed bags where threats may be shielded by other items.
Where is the 2MX-6550 dual-view scanner typically deployed?
The 2MX-6550 is deployed in airports, courthouses, government buildings, schools, hotels, corporate campuses, and event venues. Its dual-view capability and redundant generator design make it the standard choice for facilities requiring continuous, uninterrupted security screening.
Does the 2MX-6550 detect drugs and explosives?
Yes. The 2MX-6550 includes automatic threat detection with material classification for drugs and explosives. The Hamamatsu detector and Sens-Tech detection board work together to generate high-resolution, high-contrast images that allow operators to distinguish organic, inorganic, and metallic materials by color coding.
How does the 2MX-6550 compare to the 2MX-6550M mobile version?
The 2MX-6550 is a fixed-installation system designed for permanent security checkpoints. The 2MX-6550M is a vehicle-mounted mobile version for temporary deployments, events, or locations without permanent infrastructure. Both use the same dual-generator X-ray technology.
What is a dual-view X-ray baggage scanner?
A dual-view X-ray baggage scanner uses two independent X-ray generators positioned at different angles to simultaneously produce two images of the same bag — typically a top-down view and a side view. This gives security operators two independent perspectives for threat identification without requiring the bag to be run through twice, improving both detection accuracy and lane throughput.
Why use two generators in baggage screening instead of one?
Two generators eliminate the ambiguity caused by overlapping objects and provide operational redundancy. If one generator requires service, the lane continues at single-view capacity rather than shutting down. For facilities with continuous screening requirements, this uptime advantage alone justifies the dual-generator design.
Does dual-view X-ray screening reduce rescans?
Yes. Single-view checkpoints typically have rescan rates of 12–18% due to operator uncertainty. Dual-view systems reduce rescan rates to approximately 4–8% by providing a second angle that resolves most ambiguity before the operator makes a decision. Over a full screening day, this saves 30–40 minutes of recovered lane throughput per checkpoint.
How many bags per hour can the 2MX-6550 process?
Under standard operating conditions with trained operators, the 2MX-6550 processes 180–220 bags per hour per lane. This assumes a 2-person station, a 3–8% secondary inspection rate, and a pre-organized tray and conveyor setup.
Can the 2MX-6550 integrate with walkthrough metal detectors?
Yes. The 2MX-6550 pairs with a walkthrough metal detector at the lane entrance — persons walk through the metal detector while their bags simultaneously pass through the X-ray conveyor. 2M Technology designs and installs complete lane configurations with both components.
What industries use dual-view X-ray baggage screening systems?
Dual-view X-ray baggage systems are used in government and judicial facilities, K-12 schools and universities, airports and transit hubs, stadiums and event venues, corporate headquarters, data centers, and hotels hosting high-profile events.
Is the 2MX-6550 suitable for school security screening?
Yes. The 2MX-6550 significantly reduces false alarms triggered by dense student backpacks containing laptops, tablets, chargers, and cables. Lower false alarm rates mean fewer manual searches and a faster morning entry process. See the school security screening architecture guide for full deployment recommendations.
Can the 2MX-6550 be used in courthouse security screening?
Yes. Courthouses are a primary deployment environment for the 2MX-6550. The 658×490mm tunnel screens briefcases, purses, laptop bags, and court exhibit containers. Its dual-generator design ensures the checkpoint remains operational through the full court day including morning docket surge. See the courthouse security checkpoint design guide.
What is the difference between single-view and dual-view X-ray baggage scanners?
Single-view scanners produce one image per bag pass (top-down only). Dual-view scanners produce two simultaneous images from two angles. Dual-view has lower rescan rates (4–8% vs 12–18%), higher operator confidence, lower manual bag check rates, and better threat detection for densely packed bags. See the full single-view vs dual-view comparison.
What is the weight and footprint of the 2MX-6550?
The 2MX-6550 weighs 1,631 lbs (740 kg) with overall dimensions of approximately 100″ L × 53″ W × 54″ H. The system requires a standard 110V/220V electrical connection and includes an integrated uninterruptible power supply (UPS).
