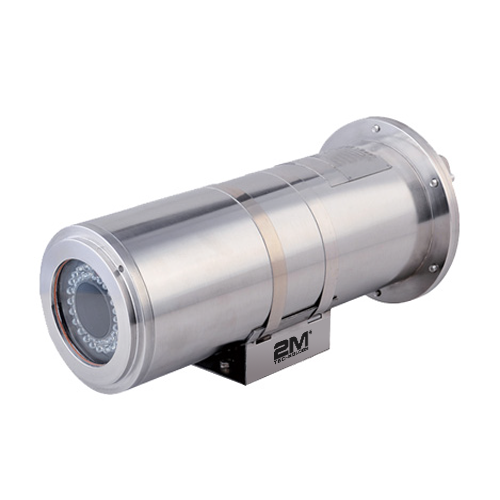

2M Technology 2MEXH-4219IR40-L Explosion proof camera housing, with 40m IR LED illuminator 316L
- IP68, NEMA-6P Enclosure rating
- Built-in IR 40 m ( 131.23 ft )
- AISI 304 or 316L stainless steel construction (available)
Product Documents
Downloads
Availability:
Out of stock
2MEXH-4219IR40-L: IP68 explosion proof camera housing with 40 m IR LED illuminator
Features:
- IP68, NEMA-6P Enclosure rating
- Built-in IR 40 m ( 131.23 ft )
- Operating temperature range from -25°C to 60°C (-13°F to 140°F)
- Ex d IIC T6 Gb explosion-proof marking
- AISI 304/316L stainless steel construction (available)
| Model Material | |
| 2MEXH-4219IR40 | AISI 304 stainless steel |
| 2MEXH-4219IR40-L | AISI 316L stainless steel |
Matching Accessories:
- 2MEXB-2915: Explosion Proof Wall Housing Bracket ( 304 )
- 2MEXPTB-3623: Heavy Explosion Proof Pan and Tilt Unit ( 304 )
- 2MEXB-2915-L: Explosion Proof Wall Housing Bracket ( 316L )
- 2MEXPTB-3623-L: Heavy Explosion Proof Pan and Tilt Unit ( 316L )
| Stainless Steel Types | |
|---|---|
| Country of Origin | China |
| Specifications | |
| Atmospheric Pressure | 80 kPa 106 kPa |
| Operating Ambient Temp | -25°C to 60°C (-13°F to 140°F) |
| Relative Humidity | 5 % to 95 % no condensing |
| Input Power | 85 V AC to 265 V AC, 50 Hz ( optional )
. |
| Protection rating | Ex d IIC T6 Gb Explosin-proof marking IP68, NEMA-6P enclosure rating |
| Dimensions ( W x H x L ) | ( 420 x 195 x 194 mm ) (16.54 x 7.68 x 7.64 In ) |
| Internal Usable Size ( W x H x L ) | ( 160 x 75 x 75 mm ) (6.30 x 2.95 x 2.95 In ) |
| Window Viewing Area (Ø) | 36 mm (1.42 in) |
| Weight | 5.6 Kg ( 12.35 lb )
. |
| Material | .AISI 304 stainless steel 2MEXH-4219IR40
AISI 316L stainless steel 2MEXH-4219IR40-L |
| Heater Control | On at 1 °C ± 3 °C (34 °F ± 5 °F) (optional) |
| IR Wave Length | 850 nm to 940 nm |
| IR Distance | 40 m ( 131.23 ft ) |
| IR H.V. Angle | 30° to 60° |
| Output | AV/Twisted-pair |
