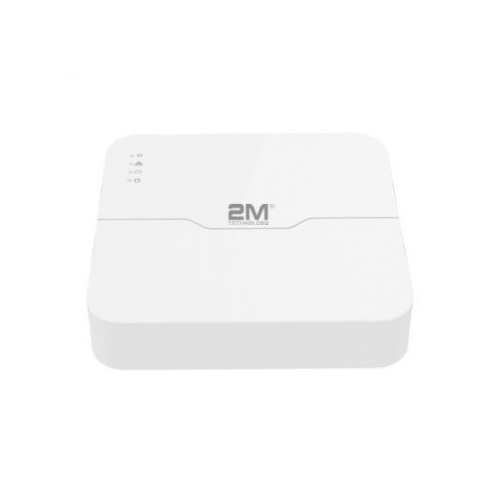

2M Technology 2MN-6004-P4-E 4-ch 1-SATA Ultra 265/H.265/H.264 NVR

  • • Support Ultra 265/H.265/H.264 video formats
  • • 4-channel input
  • • Plug & Play with 4 independent PoE network interfaces
  • • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • • Support 1-ch HDMI, 1-ch VGA

Product Documents

2M Technology 4-ch 1-SATA NVR Key Features:

  • • Support Ultra 265/H.265/H.264 video formats
  • • 4-channel input
  • • Plug & Play with 4 independent PoE network interfaces
  • • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • • Support 1-ch HDMI, 1-ch VGA
  • • HDMI and VGA simultaneous output
  • • Up to 2MP resolution recording
  • • 1 SATA HDD, up to 8 TB
  • Support cloud upgrade
Weight1.5 lbs
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

1 SATA Hard Drives

Series

Essential Series

Resolution

2 Megapixel (1920 x 1080)

Video/Audio Input
IP Video Input4-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,

1024×768 /60Hz

VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,

1024×768 /60Hz

Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback4-ch



Specifications

Model
Video/Audio Input
IP Video Input4-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,

1024×768 /60Hz

VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz,

1024×768 /60Hz

Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback4-ch
Corridor Mode Screen3/4
Decoding
Decoding formatUltra 265/H.265/H.264
Liveview/ Playback1080p/960p/720p/D1/2CIF/CIF
Capability2 x 1080p@30, 4 x 720p@30
Hard Disk
SATA1 SATA interface
Capacityup to 8TB for each disk
External Interface

Network Interface                   1 RJ45 10M/100M self-adaptive Ethernet Interface
