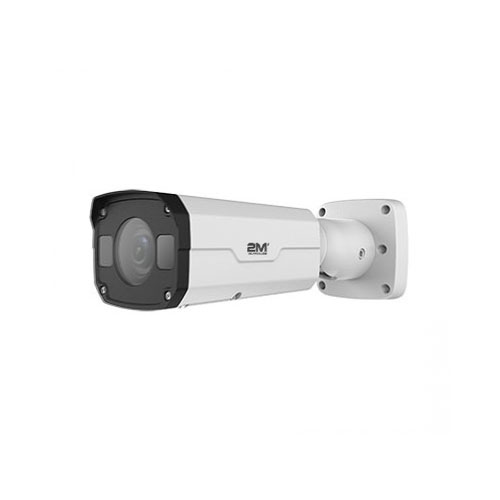

2M Technology 2MBIP-4MIR30Z-P 4MP IP Motorized IR Bullet Camera

REQUEST DEMO
  • Smart IR , up to 30 m (98 ft) IR distance
  • 3D DNR (Digital Noise Reduction)
  • H.265, H.264, MJPEG
  • IP66 – Vandal resistant and Weatherproof
  • 2.8-12mm Motorized Zoom Lens
  • 12VDC/POE

Product Documents

The Outdoor 2MBIP-2MIR30Z-P IP Bullet Camera with Motorized Zoom Lens the perfect combination with NVR 2MN-8116-P16 . This amazing duo will provide you with the sharp, clear images and detail you are looking for. The 2.8-12mm Motorized Zoom Lens allows you to capture detail of specific areas, the varifocal lens allows you to change the view to minimize detail and maximize area coverage or vice versa depending on your specifications and needs.

The 2MBIP-2MIR30Z-P is a 4 MP IP Bullet camera Vandal Resistant and weatherproof with an IP66 rating makes this Bullet Camera perfect for outdoor use. Captures detail at night with Smart IR up to 30M (98 ft) distance. Worried about your camera not performing well under low light conditions? The 2MBIP-2MIR30Z-P has a 0 Lux with IR on providing you with clear video footage.

Other amazing features that come with this bullet camera are Auto Gain Control, Automatic white balance, Digital Noise Reduction, Motion detection and Privacy Mask. Whether you purchase this camera for your business or home you will be able to take advantage of these and many other features.

For configuration the camera can be access via web browser using Default username: admin password: 123456

Weight 2.05 lbs
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Audio Input

CAMERA
Sensor 1/3″, 4 megapixel, progressive scan CMOS
Lens 2.8~12mm @F1.4
Angle of View(H) 95°~29°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.02 Lux (F1.4, AGC ON)

0 Lux with IR on

Day/Night IR-cut flter with auto switch (ICR)
Zoom/focus Motor drive
S/N >55dB
IR Range Up to 30m (98 ft) IR range
WDR Optical WDR (up to 120 dB)
VIDEO
Video Compression H.265, H.264, MJPEG
Max. Resolution 2592 × 1520


Frame Rate

4MP (2592×1520): Max. 20 fps;

4MP (2560×1440): Max. 25 fps

3MP (2048×1520): Max. 30 fps;

1080P (1920×1080): Max. 30 fps

9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Supported
Video Streaming Triple
SMART
Behavior Detection Intrusion, cross line, motion detection
Exception Detection Audio detection
Intelligent Identification Face detection
Statistical Analysis People counting
AUDIO
Audio Compression G.711
Two−way Talking Supported
STORAGE
Edge Storage Micro SD, up to 128 GB
NETWORK


Protocols

L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE,

RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x

Compatible Integration ONVIF, API
INTERFACE


Audio I/O

Audio cable
Input: impedance 35 kK; amplitude 2 V [p−p]
Output: impedance 600 K; amplitude 2 V [p−p]
Alarm I/O 1 / 1
Network 10M/100M Base-TX Ethernet
GENERAL


Power

12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 9W
Dimensions (L×W×H) 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
Weight 0.93 kg (2.05 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH

(non-condensing)

Material Cast aluminum
Ingress Protection IP66
