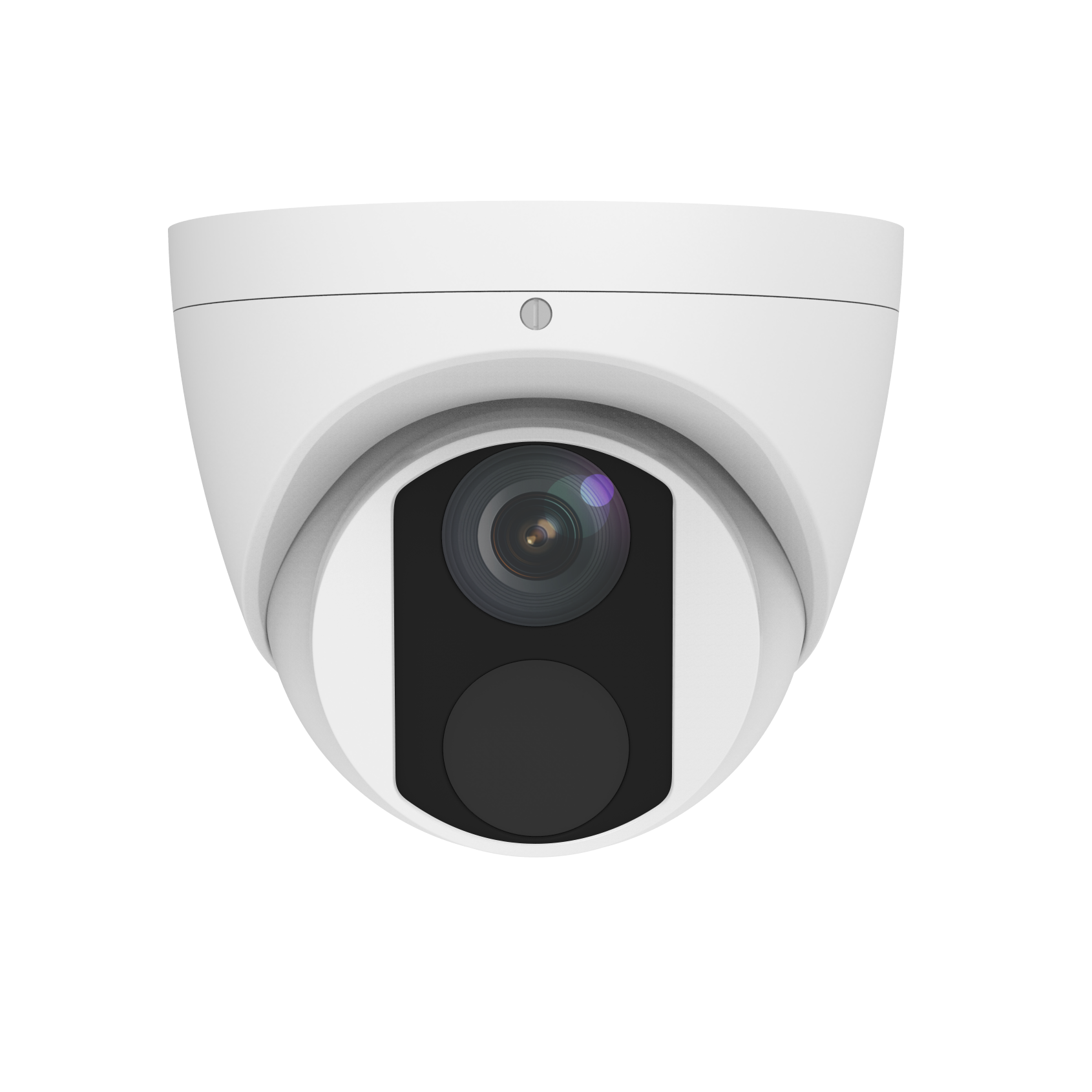

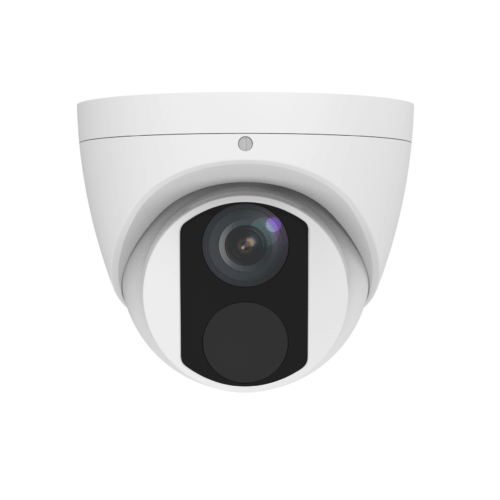

2M Technology 2MTIP-4MIR30-E 4MP Fixed Turret Network Camera

  • Ultra 265/H.264/MJPEG
  • DC12V & PoE
  • Fixed lens: 4mm
  • IR range: up to 98ft

Product Documents

The 2M Technology 2MTIP-4MIR30-E 4MP IR Ultra 265 outdoor turret IP security camera has a 4mm fixed lens. It has triple stream compression and is compatible with Ultra 265, H.264, and MJPEG. This outdoor turret camera has a standard IR range up to 98ft (30m) and includes an ICR for improved daylight functionality. The 2MTIP-4MIR30-E can run off both a DC12V and POE power supply. It offers 2592×1520:20fps resolution. Finally, the fixed turret camera offers a 1/3? CMOS image sensor for good low light performance.



Key Features

Compression

  • Ultra 265,H.265,H.264,MJPEG
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
Weight0.77 lbs
Resolution

4 Megapixel (2592 x 1520)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Series

Essential Series

Night Vision Type

Infra Red (IR) LED

Lens

N/A

CAMERA
Sensor1/3″, 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F2.04.0mm@2.0




DORI Distance

LensDetect (m)Observe (m)Recognize (m)Identify (m)
2.8mm4216.88.44.2
4.0mm6024126
Angle of View (H)104.4°78.9°
Angle of View (V)54.4°39.6°
Angle of View (O)135.7°97.0°
Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°
ShutterAuto/Manual, shutter time: 1 s ~ 1/100000 s
Minimum IlluminationColour: 0.03 Lux (2.0, AGC ON)

0 Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
WDRDWDR
Noise Reduction2D/3D
VIDEO
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile


Frame Rate

Main Stream: 4MP (2592*1520): Max. 20 fps; Sub Stream: 720P (1280*720): Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 8 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
NETWORK
ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible IntegrationONVIF(Profile S),API
INTERFACE
Network10/100M Base-TX Ethernet
GENERAL


Power Supply

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 4W
Dimensions (Ø x H)0118x 96 mm (84.6” x 3.8”)
Weight0.35kg (0.77lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F),

Humidity: 10%~90% RH (non-condensing)

Ingress ProtectionIP67
