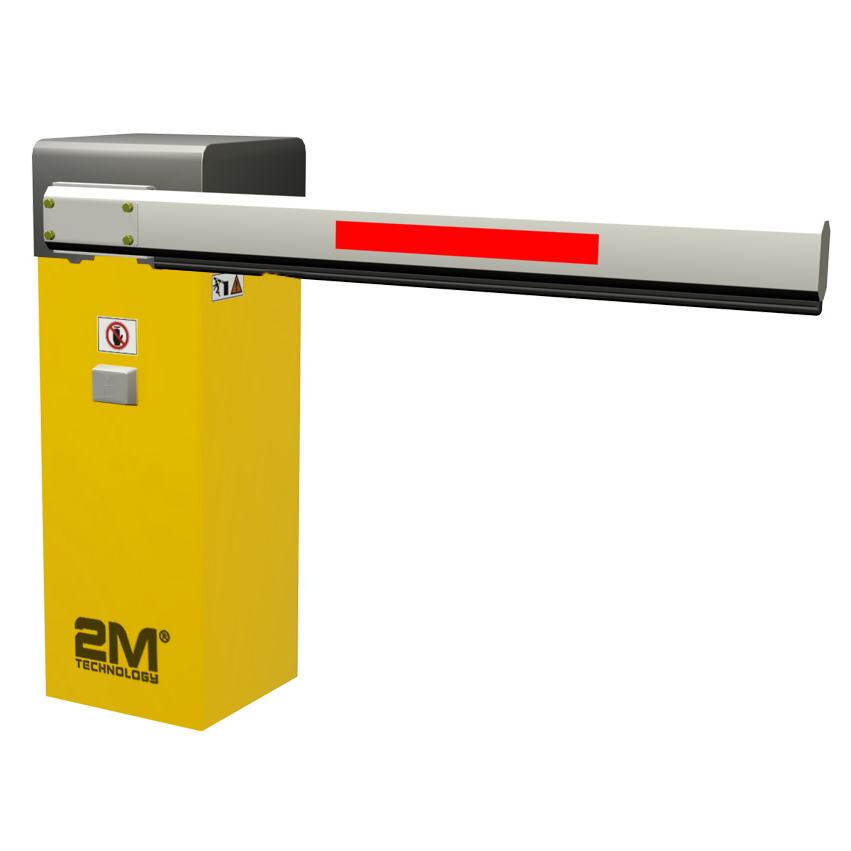

2MAGB-HSN High Speed Intelligent Barrier Gate (Brushless Servo Torque Motor)
REQUEST QUOTE (for best price)
- High-speed of open/close: 0.9/1.5 sec. adjustable
- Octagonal straight arm with rubber bar
- Speed will vary due to bar length (Max. 11.5′ ft round arm):
- – 0.9 sec. / Max. 9.8′ ft
- – 1.5 sec. / Max. 11.5′ ft
- Inclusive of arm x1, remoter x2, air switch x1, and push button x1 which opens/closes barrier
- LED light bar and boom bracket swing-off sold separately
- Available in several colors: yellow (default)/orange/white/red/blue
- Arm direction can be changed to left or right swing without changing parts
The pricing is subject to change with customization. Allow 4-6 weeks for delivery.
Product Documents
Downloads
- High-speed of open/close: 0.9/1.5 sec. adjustable
- Octagonal straight arm with rubber bar, length following (or Max. 11.5′ ft round arm):
- – 0.9 sec. / Max. 9.8′ ft
- – 1.5 sec. / Max. 11.5′ ft
- Inclusive of arm x1, remoter x2, air switch x1, and push button x1 which opens/closes barrier
- LED light bar and boom bracket swing-off sold separately
- Available in several colors: yellow (default)/orange/white/red/blue
- Arm direction can be changed to left or right swing without changing parts
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
| Dimensions | 12.9 × 13.6 × 37.4 in |
|---|---|
| Ingress Protection | IP54 |
| Country of Origin | China |
| GATE FEATURE | |
| Power Supply | AC 220-230V, 50/60HZ, Max. 0.5A |
| Motor | 70W concreted decelerating torque motor |
| Remote (Optional) | Distance ﹥ 65.6' ft |
| Spring | 1-4 pcs. balance spring (depends on arm length) |
| Loop Detector Input | pulse width 100 ﹥ ms |
| IR Detector Input | pulse width 100 ﹥ ms |
| Up & Down Input | pulse width 100 ﹥ ms |
| Traffic Light Output | relay output, max. current 1A |
| Wireless Remote (Optional) | two button remote transmitter, distance﹥ 35.6' feet |
| Loop Detector Syn. Output | relay NO output, AC 220V/0.5A, DV 12/1A |
| RS485 interface | 99600bps, ASCII decimal encoded |
| Arm | 1.8" x 3.9" (in) aluminum alloy, Max. 16.4' ft |
| Housing | 2mm cold-roller sheet, IP54 |
| Housing Size (HxWxD) | 330 x 345 x 950 (mm) / 12.9" x 13.6" x 37.4" (in) |
| Package Size | 1040 x 460 x 390 (mm) / 40.9" x 18.1" x 15.4" (in) |
| Gross Weight | 55kg / 121.3lb |
| Operating Temperature | -25°C to 55°C / -13°F to 131°F |
| Humidity | 10%-95% |
