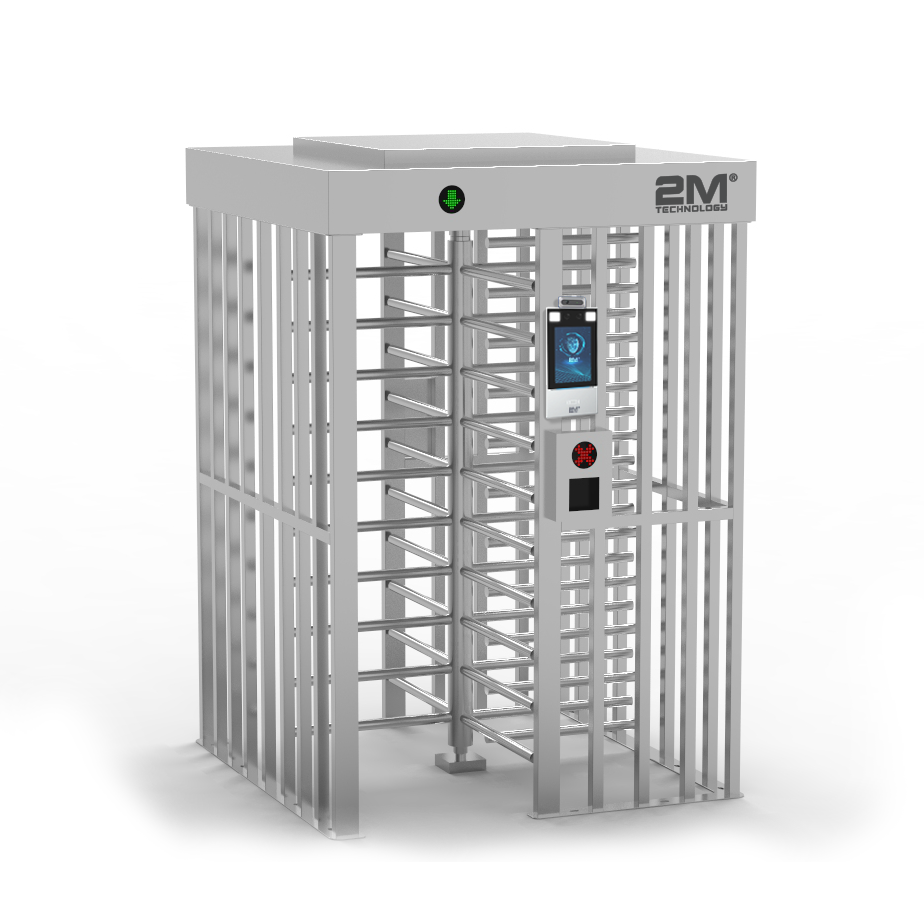

2MFHT-4 Full Height Turnstile Gate with Face Recognition and Temperature Measurement Module

REQUEST QUOTE
  • Full height turnstile
  • Temperature and face recognition access control
  • Constructed of 304 stainless steel
  • Can support also two-sided card readers, paper tickets, fingerprint / bio-metric scanning, and coins

Product Documents

Downloads

2MFHT-4 Full Height Turnstile Gate with Face Recognition and Temperature Measurement Module

Features:

  • Non-contact detection, abnormal body temperature warning system
  • Supports body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
  • Built-in deep learning dedicated chip, supports local off-line recognition,
    10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Supports anti-spoofing detection based on a deep learning algorithm, effective against fraud. Can differentiate between a person and a photograph or video
  • Full height turnstiles operate like a revolving door. The only difference is that it allows only one person at a time to get accessed by automatic locking after one entry is finished. It would be impossible for someone to crawl under or climb over these full height turnstile gates as they offer maximum security
  • The 2MFHT-4 full height turnstile can be customized for one-way or bi-directional passage for more flexibility. These turnstiles can be made either horizontal or vertical for a better solution.
  • 2MFHT-1 full height turnstile gate is made of high-quality stainless steel for durable outdoor use. It is semi-auto, with solenoid lock installed for efficient passing.
  • This full height turnstile gate 2MFHT-4 is designed to be integrated with a myriad of third-party access control systems through the contact/relay interface.
  • 2MFHT-4 is the perfect choice to help eliminate tailgating. The delicate lock mechanism uses a limit switch to detect rotation and immediately re-locks after the arm is rotated halfway through. This way, only the current person can finish the rotation and pass through or reverse to exit. The second person will not be allowed to pass through without access confirmation.
  • In case of any power failure, the full height turnstile gates will  automatically unlock the arms so that people can push though manually  for fast evacuation.
Temperature Detection Features

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Module Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

Want to see this product in action? Schedule a live demo now!
REQUEST DEMO

Options Available with this Model

MODEL

2MFHT-4

MOTOR TYPE

SEMI AUTOMATIC

AUTOMATIC

BRUSHLESS

Control Model

Electromagnetic

Brush Motor

Brushless Motor

Drive Type

Push By Hand

Drive By Motor

Drive By Motor

Power On

Pick Up Arm By Hand

Pick Up Arm By Motor

Pick Up Arm By Motor

Max Flow Per Day

500

1000

2000

Life Time

2-3 Years

3-5 Years

At Least 5 Years

MTBF

3 Million

5 Million

10 Million

Controller

Standard Function Can Be Set

Full Function Can Be Set

Full Function Can Be Set

Structure

Simple

Stable

Strong

Mechanical Friction

Mechanical Shock

Yes

Small

Noise

Moderate

Quiet

Almost None

After Service

Electromagnetic Perishable

Less

Less

Dimensions 16.5 × 12.9 × 39.4 in
GATE FEATURE
Turnstile Type Full Height Turnstile
Material 304 Stainless Steel (Standard) 316 Stainless Steel (Optional)
Finish Stainless Steel Satin Finish
Safety Fail-Safe (Free Exit/Entry)
Dimension 1500 x 1500 x 2250 mm (L x W x H)
Number Of Wings(Angle) X Type-4 (90°) Y Type-3 (120°)
Direction Single / Bidirectional
Power Supply Ac110–220 V, 50/60 Hz
Flow Rate 50 Person/Min
Working Environment Indoor & Outdoor
  Unlock mode Solenoid(standard)
Motor drive(optional)
  Motor Type (if motor drive) DC brush motor (standard)
DC brushless motor (optional)
Servo motor (optional)
Operation System Linux
FACIAL RECOGNITION
Face Recognition Accuracy Rate >99%
Face Recognition Time 200ms
Face Capacity 10,000
Card Capacity 100,000
Storage Capacity 4GB
Event Capacity 30,000 (with images)
Measurement Range 30°C - 45°C
Measurement Accuracy 0.1°C
Measurement Deviation ≤±0.3°C
Measurement Distance 1m
  Authentication Mode Face Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card Type Mifare 1 Card
User Management Support user library addition, deletion, update
Record Management Support local recording and real-time upload
  Interface LAN x1, Wiegand Input x1, Wiegand Output x1, RS485 x1, Alarm Input x2, Alarm Output x1, USB2.0 x1, Lock x1, Door Contact x1, Exit Button x1
Power Supply Input 12V±25% DC
Screen Touch Screen, Size: 7 inch, Resolution: 600 x1024
Camera Dual Lens, 2MP, 1080P
Supplement Light LED soft light and infrared light
Dimensions (L×W×H) 134 x 33 x 305 (mm)
Working Environment For access control terminal: -20°C~+65°C, Relative Humidly<95% (non-condensing)
Protection Level Both terminal and module: IP 54
Application Situation Indoor, No wind
