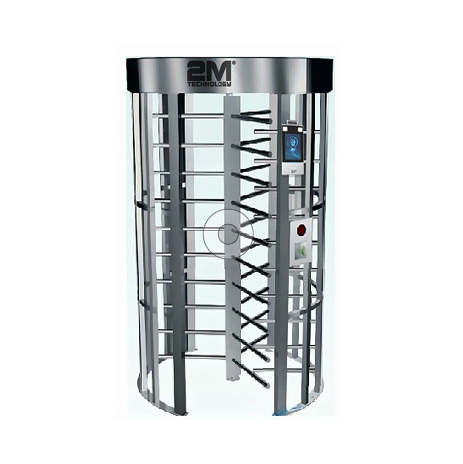

2MFHT-3 Full Height Turnstile Gate with Face Recognition and Temperature Measurement Module
- Dual Channel Full height turnstile
- Temperature and face recognition access control
- Constructed of 304 stainless steel
- Can support also two-sided card readers, paper tickets, fingerprint / bio-metric scanning, and coins
Product Documents
Downloads
2MFHT-3 Full Height Turnstile Gate with Face Recognition and Temperature Measurement Module
Features:
- Full height turnstiles
- 304 Stainless steel
- Supports input way: Two-side card reader, paper ticket, fingerprint, coins.
- Infrared light detection, illegal infiltration or tailing will set off the alarm
- Working mode and opening time is adjustable
- Non-contact detection, abnormal body temperature warning system
- Supports body temperature detection and personnel information binding, which can quickly confirm personnel information and scan body temperature
- Built-in deep learning chip, supports local off-line recognition, with a capacity of up to 10K faces, face whitelist (1:N)
- Fastest recognition time 0.2 seconds, various model merge modes are used to reduce false reading rates and increase the pass rate
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Avoid clamping
- Supports anti-spoofing detection based on deep learning algorithm, effective against fraud, can detect the difference between a real person and a photograph or video
Face Recognition and Temperature Detection Access Control Technology
Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.
Module Features:
- Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
- Non-contact temperature detection
- Body temperature detection and personnel information binding
- Configurable temperature detection threshold value
- Temperature range between 30˚C to 45˚C
- Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
- Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
- The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
- WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
- Anti-spoofing detection based on deep learning algorithm
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
Options Available with this Model
MODEL | 2MFHT-3 | ||
MOTOR TYPE | SEMI AUTOMATIC | AUTOMATIC | BRUSHLESS |
Control Model | Electromagnetic | Brush Motor | Brushless Motor |
Drive Type | Push By Hand | Drive By Motor | Drive By Motor |
Power On | Pick Up Arm By Hand | Pick Up Arm By Motor | Pick Up Arm By Motor |
Max Flow Per Day | 500 | 1000 | 2000 |
Life Time | 2-3 Years | 3-5 Years | At Least 5 Years |
MTBF | 3 Million | 5 Million | 10 Million |
Controller | Standard Function Can Be Set | Full Function Can Be Set | Full Function Can Be Set |
Structure | Simple | Stable | Strong |
Mechanical Friction | Mechanical Shock | Yes | Small |
Noise | Moderate | Quiet | Almost None |
After Service | Electromagnetic (Perishable) | Low | Low |
| Country of Origin | China |
|---|
| GATE FEATURE | |
| Turnstile type | Double full height turnstile |
| Cabinet material | 304 stainless steel (standard) |
| 316 stainless steel (optional) | |
| Finish | Stainless steel satin finish |
| Safety | Fail-safe (free exit/entry) |
| Number of wings (angle) | X type-4 (90°) Y type-3 (120°) |
| Dimension (L*W*H) | 1500*1300*2250mm |
| Direction | Single / bidirectional |
| Power supply | AC110–220 V, 50/60Hz |
| Flow rate | 50 person/min |
| Working environment | Indoor & outdoor |
| Unlock Mode | Solenoid (standard) |
| Motor drive(optional) | |
| Motor | DC brush motor (standard) |
| DC brushless motor (optional) | |
| DC servo motor (optional) | |
| FACIAL RECOGNITION | |
| Operation System | Linux |
| Face Recognition Accuracy Rate | >99% |
| Face Recognition Time | 200ms |
| Face Capacity | 10,000 |
| Card Capacity | 100,000 |
| Storage Capacity | 4GB |
| Event Capacity | 30,000 (with images) |
| Measurement Range | 30°C - 45°C |
| Measurement Accuracy | 0.1°C |
| Measurement Deviation | ≤±0.3°C |
| Measurement Distance | 1m |
| Authentication Mode | Face Whitelist: (1:N) |
| Card:(1:N) | |
| Face +Body temperature | |
| Card Type | Mifare 1 Card |
| User Management | Support user library addition, deletion, update |
| Record Management | Support local recording and real-time upload |
| Interface | LAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1 |
| Power Supply | Input 12V±25% DC |
| Screen | Touch Screen, Size:7 inch, Resolution: 600×1024 |
| Camera | Dual Lens, 2MP, 1080P |
| Supplement Light | LED soft light and infrared light |
| Dimensions (L×W×H) | 134.0mm×33.0mm×305.0mm |
| Working Environment | For access control terminal: -20°C~+65°C, Relative Humid- ly<95% (non-condensing) |
| Protection Level | Both terminal and module: IP 54 |
| Application Situation | Indoor, No wind |
