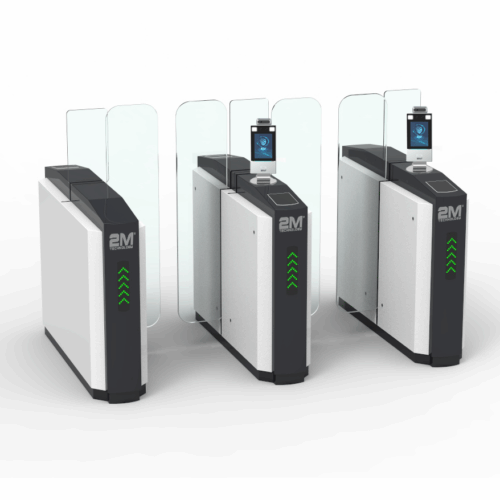

2MRST-5 Face Recognition and Thermal Detection Access Control Retractable Door Turnstile

  • Retractable Door Turnstile
  • Face recognition and temperature detection module
  • Adjustable unlock time
  • Pass rate: 35 person /min
  • Acrylic or tempered glass options available

Product Documents

2MRST-1 Face Recognition and Thermal Detection Access Control Retractable Door Turnstile

Features:

  • Doors retract to open and close horizontally
  • Doors are made of acrylic (tempered glass is optional)
  • The body is constructed with 304 stainless steel (316 stainless steel is optional)
  • No sharp edges for safety
  • Arrow shaped LED’s indicate the lane is ready (green), and cannot pass (red).
  • Additional sensor may be added for additional safety
  • Turnstile gates can be integrated with face recognition, fingerprint recognition, and other biometric identification methods, also other traditional modules are supported, such as IC card, ID card, RFID card, bar code, etc.
  • Also available with two motors to allow for multiple-lane pedestrian (brushless or servo motor is optional)
  • Supports body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
  • Built-in deep learning dedicated chip, supports local offline recognition, 10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and 6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Support anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
Temperature Detection Features

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Module Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

Options Available with this Model

MODEL

2MRST-1

2MRST-1-BLM

2MRST-1D

2MRST-1D-BLM

MOTOR TYPE

BRUSH

BRUSHLESS

DOUBLE SIDED BRUSH MOTOR

DOUBLE SIDED BRUSHLESS MOTOR

Drive Type

Drive By Brush Motor

Drive By Brushless Motor

Drive By Brush Motor

Drive By Brushless Motor

Arm Material

Acrylic

Acrylic / Tempered Glass

Acrylic

Acrylic / Tempered Glass

Lane Width

0-23.6″ (in) [0-600mm]

0-35.4″ (in) [0-900mm]

0-23.6″ (in) [0-600mm]

0-35.4″ (in) [0-900mm]

Power Off

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Speed

1 Second Not Adjustable

0.5 Seconds Adjustable

1 Second Not Adjustable

0.5 Seconds Adjustable

Max Capacity Flow

1000

2000

1000

2000

Life Time

2-3 Years

3-5 Years

2-3 Years

3-5 Years

MTBF

5 Million

10 Million

5 Million

10 Million

Controller

Standard Function Can Be Set

Standard Function Can Be Set

Standard Function Can Be Set

Standard Function Can Be Set

Structure

Stable

Strong

Stable

Strong

Mechanical Friction

Yes

Some

Yes

Some

Noise

Moderate

Quiet

Moderate

Quiet

Dimensions55.12 × 11.81 × 39.4 in
GATE FEATURE
Turnstile TypeSwing turnstile
  Cabinet Material304 stainless steel (standard)
316 stainless steel (optional)
  Door MaterialAcrylic (standard)
Tempered glass (optional)
FinishStainless steel satin finish
Dimensions (LxWxH)55.12” x 11.81” x 39.4” (in) [1400 x 300 x 1000 (mm)]
Passage WidthMax 600 mm
Weight70Kg
DirectionSingle / bidirectional
FunctionFail safe, anti-clamping
Power SupplyAC110–220 V, 50/60Hz
Unlock TimeAdjustable
Flow Rate35 people/min
Working EnvironmentIndoor and outdoor
  MotorDC brush motor (standard)
DC brushless motor (optional)
DC servo motor (optional)
FACIAL RECOGNITION MODULE
Operation SystemLinux
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C - 45°C
Measurement Ac- curacy0.1°C
Measurement Devi- ation≤±0.3°C
Measurement Dis- tance1m
  Authentication ModeFace Whitelist: (1:N)
Card: (1:N)
Face +Body temperature
Card TypeMifare 1 Card
User ManagementSupport user library addition, deletion, update

Record ManagementSupport local recording and real-time upload
  InterfaceLAN x1, Wiegand Input x1, Wiegand Output x1, RS485 x1, Alarm Input x2, Alarm Output x1, USB2.0 x1, Lock x1, Door Contact x1, Exit Button x1
Power SupplyInput 12V±25% DC
ScreenTouch Screen, Size: 7" inch, Resolution: 600×1024
CameraDual Lens, 2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (LxWxH)5.28" x 1.3" x 12" (in) [134 x 33 x 305 (mm)]
Working EnvironmentAccess control terminal: -4°F ~ 149°F [-20°C ~ 65°C] Relative Humidity <95% (non-condensing)
Protection LevelBoth terminal and module: IP54
Application SituationIndoor, No wind
