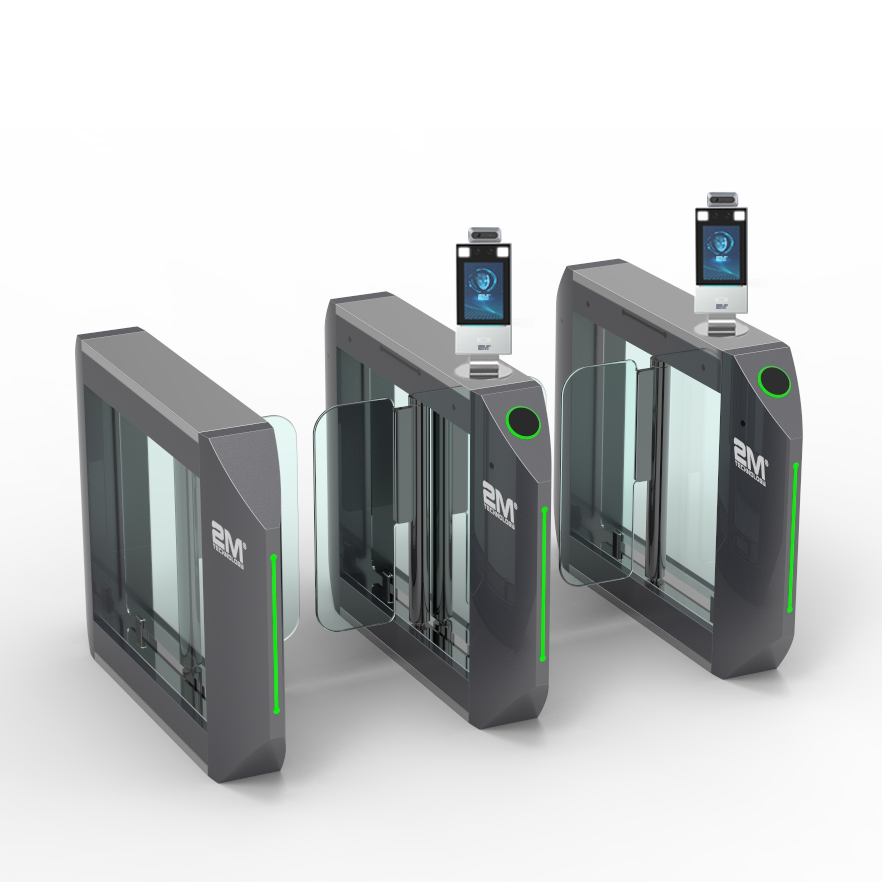

2MGST-6 Face Recognition and Thermal Detection Access Control Swing Door Barrier Turnstile Gate

  • Temperature and face recognition access control
  • Pass width: ≤21.65″ in [≤550mm]
  • Pass rate: 35 person /min
  • Unlock time: 0.2s
  • Constructed of 304 stainless steel
  • Can support also two-sided card readers, paper tickets, fingerprint / bio-metric scanning, and coins

Product Documents

2MGST-6 Face Recognition and Thermal Detection Access Control Swing Door Barrier Turnstile Gate

Features:

  • Vertical Swing turnstile, Stainless steel 304
    Size (L x W x H): 47.24″ x 11.02″ x 39.37″(in) [1200 x 280 x 1000(mm)]
  • Gross weight: Single: 154.32 lbs [70kg]; double: 209.44 lbs [95kg]
  • Unlock time: 0.2s
  • Pass rate: 35 people/min
  • Pass width: ≤21.65″ in [≤550mm]
  • Input: 100V~240V
  • Driving voltage: 24V
  • Environment: -25~+70
  • Power consumption: 30w
  • Input: 12V dry contact
  • Automatic open when power off
  • Supports non-contact detection, warns of people with abnormal body temperature
  • Binds body temperature detection and personnel information
  • Built-in deep learning dedicated chip, supports local offline recognition,
    10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for the highest quality image with various complex lighting scenes
  • Anti-spoofing protection which uses learning algorithms to effectively prevent photo and video fraud. This system can differentiate between a real person and a video or photograph
Temperature Detection Features

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Module Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

Options Available with this Model

MODEL NUMBER

2MMST-4 (SINGLE FLAP)

2MMST-4D (DOUBLE SIDED FLAPS)

MOTOR TYPE

BRUSH MOTOR

BRUSHLESS MOTOR

SERVO MOTOR

BRUSH MOTOR

BRUSHLESS MOTOR

SERVO MOTOR

Drive Type

Drive By Brush Motor

Drive By Brushless Motor

Drive By Servo Motor

Drive By Brush Motor

Drive By Brushless Motor

Drive By Servo Motor

Arm Material

Acrylic

Acrylic / Tempered Glass

Acrylic/Tempered Glass

Acrylic

Acrylic / Tempered Glass

Acrylic/Tempered Glass

Lane Width

0-23.6″ (in)

[0-600mm]

0-35.4″ (in)

[0-900mm]

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

0-35.4″ (in)

[0-900mm] or Longer

Power Off

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Automatic Open

Speed

1 Second Not Adjustable

0.5 Seconds Adjustable

Max 0.2 Second And Can

Adjustable

1 Second Not Adjustable

0.5 Seconds Adjustable

Max 0.2 Second And Can

Adjustable

Max Capacity Flow

1000

2000

More Than 2000

1000

2000

More Than 2000

Life Time

2-3 Years

3-5 Years

At Least 5 Years

2-3 Years

3-5 Years

At Least 5 Years

MTBF

5 Million

10 Million

20 Million

5 Million

10 Million

20 Million

Controller

Standard Function Can Be Set

Standard Function Can Be Set

Full Function Can Be Set

Standard Function Can Be Set

Standard Function Can Be Set

Full Function Can Be Set

Structure

Stable

Strong

Strong

Stable

Strong

Strong

Mechanical Friction

Yes

Some

None

Yes

Some

None

Noise

Moderate

Quiet

Almost None

Moderate

Quiet

Almost None



Dimensions47.24 × 11.02 × 39.37 in
GATE FEATURE
Turnstile TypeSwing turnstile
  Cabinet Material304 stainless steel (standard)
316 stainless steel (optional)
  Arm MaterialHollowed stainless steel(standard)
Acrylic (optional)
Tempered glass (optional)
FinishStainless steel satin finish
Dimension47.24" x 11.02" x 39.37"(in) [1200*280*1000 mm (L x W x H)]
Passage Width≤21.65" in (≤550 mm)
Weight154.3 lbs (70 kg)
DirectionSingle / bidirectional
FunctionFail-safe, anti-clamping
Power SupplyAC 110–220 V, 50/60 Hz
Unlock Time0.2s
Flow Rate35 person/min
Working EnvironmentIndoor and outdoor
  MotorDC brush motor (standard)
DC brushless motor (optional)
DC servo motor (optional)
FACIAL RECOGNITION
Operation SystemLinux
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range86°F - 113°F (30°C - 45°C)
Measurement Accuracy0.1°C
Measurement Deviation≤±0.3°C
Measurement Distance3.28' ft [1m]
  Authentication ModeFace Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card TypeMifare 1 Card
User ManagementSupports user library addition, deletion, update
Record ManagementSupports local recording and real-time upload
  InterfaceLAN x1, Wiegand Input x1, Wiegand Output x1, RS485 x1, Alarm Input x2, Alarm Output x1, USB2.0 x1, Lock x1, Door Contact x1, Exit Button x1
Power SupplyInput 12V±25% DC
ScreenTouch Screen, Size:7 inch, Resolution: 600 x 1024
CameraDual Lens, 2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (L x W x H)5.3" x 1.3" x 12" (in) [134 x 33 x 305 (mm)]
Working EnvironmentFor access control terminal: -4°F - 149°F [-20°C~+65°C] Relative Humidly<95% (non-condensing)
Protection LevelBoth terminal and module: IP54
Application SituationIndoor, No wind
