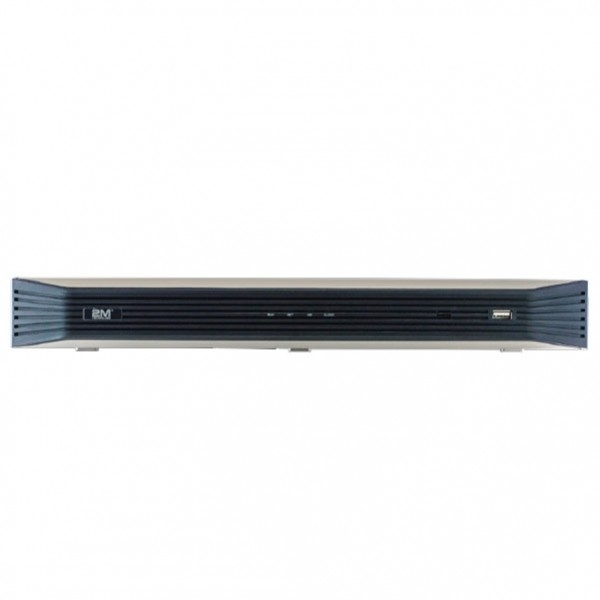

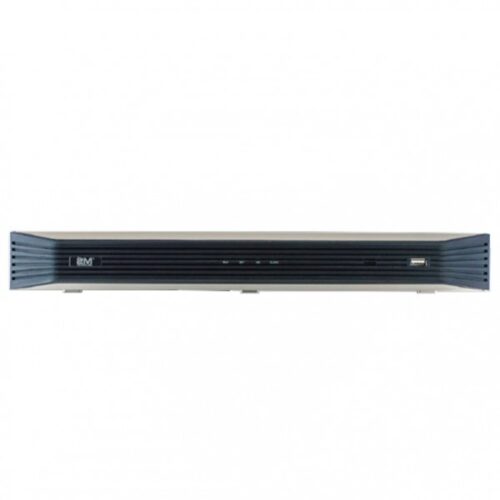

2MN-8116-P8-P 16-CH Network Video Recorder

• Support Ultra 265/H.265/H.264 video formats
• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
• HDMI1/VGA and HDMI2 independent outputs provided

REQUEST DEMO

Product Documents

2M Technology 16-CH Network Video Recorder Features:

• Support Ultra 265/H.265/H.264 video formats
• 16/32-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
• HDMI1/VGA and HDMI2 independent outputs provided
• Up to 12 Megapixels resolution recording
• 4 SATA HDDs, Up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• Support for 12V Power output
• Plug & Play with up to 16 independent PoE network interfaces
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

2 SATA Hard Drives

Resolution

4 Megapixel (2592 x 1520)

Series

Professional Series

VIDEO & AUDIO
IP Video Input 16-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 112Mbps
Outgoing Bandwidth 96Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output

HDMI/VGA Output VGA: 1024X768@60,1280X720@60,1280X1024@60,1920X-
1080@50,1920X1080@60 HDMI:
4k(3840×2160@30),4k(3840×2160@60),1024X768@60,1280X-
720@60,1280X1024@60,1920X1080@50,1920X1080@60
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x
720P@30,16 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 10TB for each disk
External Interface

Network Interface
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 8 independent 100Mbps PoE network interfaces
Max Power Max 30W for single port
Max 130W in total ( 16.25W for each )
Supported Standard IEEE 802.3at
GENERAL

Power Supply 220V AC
Power Consumption: ≤9 W( without HDD )

Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%
RH(non-condensing)
Dimensions (W×D×H)
380 x 315 x 46 (mm) (15″ x 12.4″ x 1.8″) (in)
