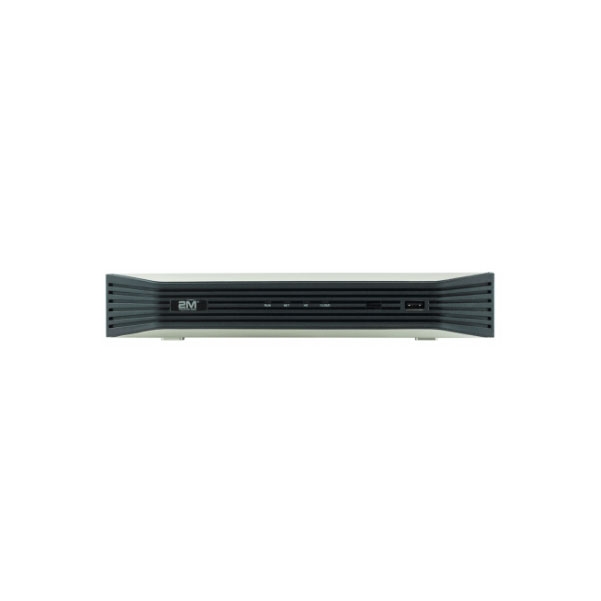

2M Technology 2MN-8008-P8 8 Channel Network Video Recorder

8-channel input
Plug & Play with Professional IP Camera Series
1x 4KHMDI or 1080PHDMI/VGA
Up to 8 Megapixels resolution recording
Support H.265/H.264 video formats
1 SATA HDD up to 6 TB

Product Documents

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Plug & Play with 8 independent PoE network interfaces
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 2MP resolution recording
  • 1 SATA HDD up to 10 TB
  • Support cloud upgrade
Weight2.47 lbs
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

1 SATA Hard Drives

Series

Professional Series

VIDEO & AUDIO
IP Video Input8-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output




HDMI/VGA Output

HDMI:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback8-ch
Corridor Mode Screen3/4/5/7/9
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback1080p/960p/720p/D1/2CIF/CIF
Capability4 x 1080p@20, 4 x 720p@30
Hard Disk
SATA1 SATA interfaces
Capacityup to 10TB for each disk
External Interface


Network Interface



1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface

USB InterfaceRear panel: 2 x USB2.0
PoE
Interface8 independent 100 Mbps PoE network interfaces
Max PowerMax 30W for single port

Max 108W in total (13.5W for each)

Supported StandardIEEE 802.3at, IEEE 802.3af
GENERAL


Power Supply

52V DC

Power Consumption: ≤5.55 W (without HDD)



Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%

RH(non-condensing)



Dimensions



260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in)
