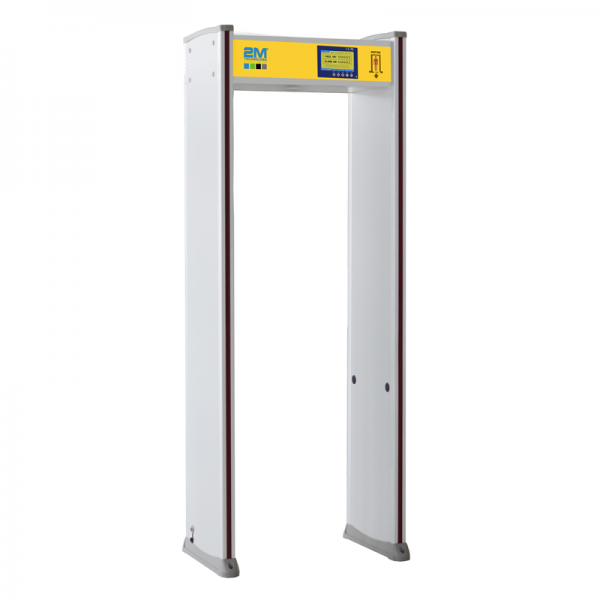

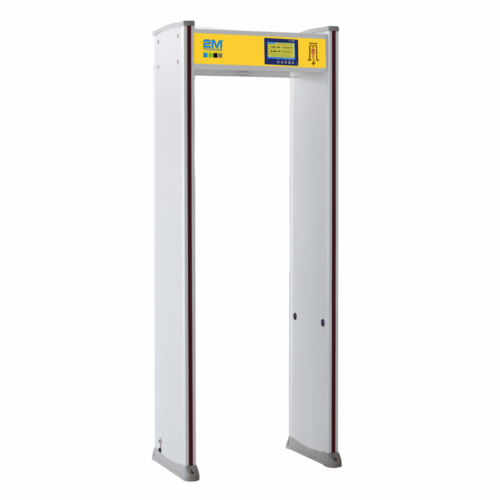

2MWT-i24Z Indoor Rated, 24 Zone Walkthrough with Intelligent DSP

  • Indoor 24 detection zones
  • ADA Compliant Model Available
  • Self diagnostic capability
  • Detection Zones can be adjusted from 1 zone to 8,
    16 or 24 zones.

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents



  • ISO9001, ISO14001, HSMS18001, CE
  • Certificate from Ministry of Public Security Safety and Police Electronic Products Quality Inspection Center
  • In accordance with: EN60950, WN50081-1, EN50082-1
  • Electric safety: EN60950
  • Anti-interference standard: EN50082-1


  • Stable performance in 24 zones
  • DSP technology, automatic calibration
  • Two LED lights, LCD display
  • Self-diagnostic capability
  • Input MBSU battery backup, in time power transfer
  • Modular structure for easy maintenance
  • Intuitively adapts to a working environment
  • Auto scans for environmental interference
  • Easy to operate LCD interface
  • Two LED light bars on both door panels: Gives alarm corresponding to the height or human body
  • Detection Zones can be adjusted from 1 zone to 8,16 or 24 zones
  • Adjustable Sensitivity: From Level 0 to 300 High: Can detect up to a paper Low: Detects big metal articles such as: knives, guns, copper, aluminum, zinc (more than 150g), bypassing metal in belts, buttons and shoes
  • Shock proof to avoid false alarms
  • Sound and light alarm
  • Intelligent traffic and alarm counters to calculate traffic flow & resultant alarms
  • Tamper-Proof: Operating system is password protected
  • Adjustable operating frequencies: Helps eliminate the potential interference from X-ray units, radios and other electrical items
  • Mix distances between two walkthroughs: 3 meters at low sensitivity,


Weight 209.4 lbs
Dimensions 87.4 × 32.3 × 20.6 in
Zone Options 8-16-24 zones options
Shock Proof Yes
LED Bars 2
Display LCD
Calibration Automatic
Tracking Traffic and alarm counters that calculate traffic flow and resultant alarms
Alarm Audible and Visual Alerts
Adjustable Sensitivity From Level 0 to 300
Tamper Proof Password Protected
Operating Frequencies Adjustable
Distance Mix distances between two walkthroughs: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity.
Safety Harmless to pregnant women and pacemakers
Electrical Current AC215V~230V; 50/60Hz
Power 15W
Work Environment -20°C~+55°C
Gross Weight 209.4 lbs
Outer Frame (HxWxD) 2210(h) x 880(w) x 600(d) (mm) 87.4" x 32.3" x 20.6" (in)
Inner Frame (HxWxD) 2010(h) x 760(w) x 600(d) (mm) 78.7" x 27.6" x 20.6"
