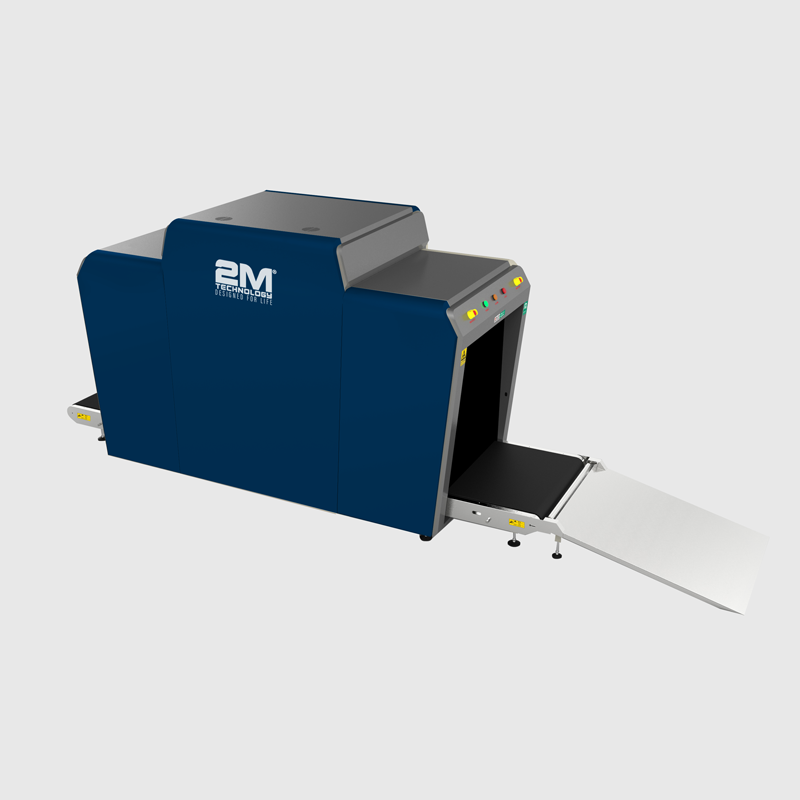

2M Technology 2MX-8065H X-Ray Baggage Scanner

X Ray Baggage Scanner

Product Documents

Weight 1102.31 lbs
IMAGE SYSTEM
Technical Principle Dual-energy X-ray Imaging
Sensitivity Limit 1 Nanogram TNT
X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17inch
Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall All preceding images re-callable, retrieval
Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats and contraband
Threat Image Projection Inserting fictional, but realistic images of threat items  into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions Time/date display, counters, user management, system- on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log,etc.
Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional)
Images Process 24bit real time processing, 4 colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:65536
X-RAY GENERATOR:
Anode Voltage 160kv
Anode Power 0.35mA
Generate Angle 80 degree upward
Brand 2M Technology (own made)
Generate Direct from top to bottom
Cooling / Duty Cycle Oil Cooling /100%
OTHER CHARACTERS
Detect PCB Board UK brand Sensortech
Extension Rollers Customize size length. Support card reader operator access
CD DVR/RW Unit Optional
Computer System XP system
Monitor 17 inch DELL two monitors
GENERAL
Tunnel Size 810mm×655mm
Conveyor Speed < 300W
Conveyor Height < 20 minutes
Conveyor Max Load -10° C ~ 55° C
X ray Dose per inspection <5.5 kg
Wire Resolution 38AWG Guarantee 40 AWG typical
Spatial Resolution Level dia1.3mm,Vertical: dia1.3mm
Penetration 28 mm steel guarantee, 30mm steel typical
Penetration Resolution 38AWG guarantee, 38AWG typical
Film Safety Guarantee ASA/ISO1600 Film
X-ray Leakage <0.5 μSv/h (at a distance of 5cm From external housing)
OPERATING ENVIRONMENT:
Operation Temperature/Humidity 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity -40°Cto 60°C/ 5%-95%(non-condensing)
Operation Power 220VAC(±10%)50±3Hz (Optional:
100VAC,110VAC,120VAC,200VAC)
Power Consumption 1.0KW (max), 0.7KW(working)
Noise <58db
Dimensions 2848.5mm x1095mm x 1535.5 mm
Weight 1102.31 lbs
