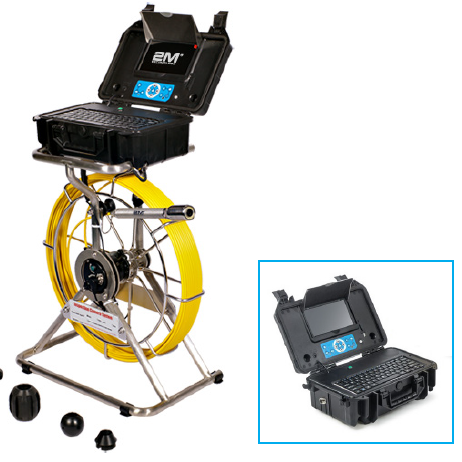

2MPICB-40 Push Rod Optical Equipment for Drain Pipe CCTV Inspection Camera with Wheeled Frame
REQUEST QUOTE (for best price)
- Spiral cable with 6x pin aviation plug
- U type handle
- Wireless keyboard
- Tool Box, 7″ DVR & lithium ion battery inside
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
- Spiral cable with 6x pin aviation plug
- U type handle
- Wireless keyboard
- Tool Box, 7″ DVR & lithium ion battery inside
- 40/50/60 – 131’/164’/196′ Fiberglass cable 6.8mm @yellow fiber glass,
meter counter & text input - 38mm / 1.49″ in self-leveling CCD camera head
Note: This is a special order item. Allow 4-6 weeks for delivery.
| OTHER SIZES AVAILABLE | |
| 6.8MM YELLOW FIBERGLASS CABLE | |
| 2MPICB-40130 | 131.2 ft/40m fiberglass cable |
| 2MPICB-40164 | 164 ft/50m fiberglass cable |
| 2MPICB-40197 | 196.8 ft/60m fiberglass cable |
| Country of Origin | China |
|---|
| CAMERA | |
| Camera Size | 38 x 81 (mm) / 1.49" x 3.18" (in.) |
| Camera Total Length | 318mm / 12.5" in. |
| Sensor | 1/3" Sony CCD, 700 TVL |
| Pixel | 976 (H) x 582 (V) |
| View Angle | 120° |
| Self leveling | Built-in |
| Focus Distance | 12cm / 4.7" in. (aprox.) |
| Depth-of-Field | 120cm / 40.2" in. (aprox.) |
| Front Lens | Sapphire glass |
| Waterproof | 20m/65.6' ft. Under Water (Camera fixed on cable) |
| Shell Material | #304 stainless steel |
| Lighting | Built-in 12x LED (White) |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 60°C (4°F ~ 140°F) |
| MONITOR | |
| Screen | 7" in. 16:9 Super bright HD color LCD screen |
| Resolution | 800 x 480 RGB |
| Mirror and Flip | Supports image mirror, and flip |
| Video Resolution | 720 x 576 25fps Max. |
| Video Encoding | H.264 |
| Photograph | 720 x 480 / 720 x 576 |
| Audio Recording | Local sound record |
| Output | TV and audio output |
| External Memory | SD memory card up to 32GB |
| Data Output | USB 2.0 to PC |
| LED Driver | Built-in dimmer |
| Playback | Video, Photo and Audio |
| On Screen | Date, time, Distance (m/ft) display |
| Battery Capacity | 7.4 V 4400mAh lithium ion battery |
| Power Supply | DC 12V input |
| Life/Charge Time | 5/8 hours |
| Language | English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese |
| OPTIONAL | |
| Camera Head Add On | Built-in 512Hz sonde |
| Camera Skids | Caster Skid: POM Ø 134 x 83.9 30mm Wheel |
| POM Skid: POM Ø 78 x 83.9 | |
| Ball Support: POM S Ø 60 x 53.5 | |
| Lock Sleeve: POM Ø 54.6 x 38 | |
| OTHER SIZES AVAILABLE | |
| 6.8MM YELLOW FIBERGLASS CABLE | |
| 2MPICB-40130 | 131.2 ft/40m fiberglass cable |
| 2MPICB-40164 | 164 ft/50m fiberglass cable |
| 2MPICB-40197 | 196.8 ft/60m fiberglass cable |
| OTHER SIZES AVAILABLE | |
| 6.8MM YELLOW FIBERGLASS CABLE | |
| 2MPICB-40130 | 131.2 ft/40m fiberglass cable |
| 2MPICB-40164 | 164 ft/50m fiberglass cable |
| 2MPICB-40197 | 196.8 ft/60m fiberglass cable |
| OPTIONAL |
| 512Hz sonde into camera head |
