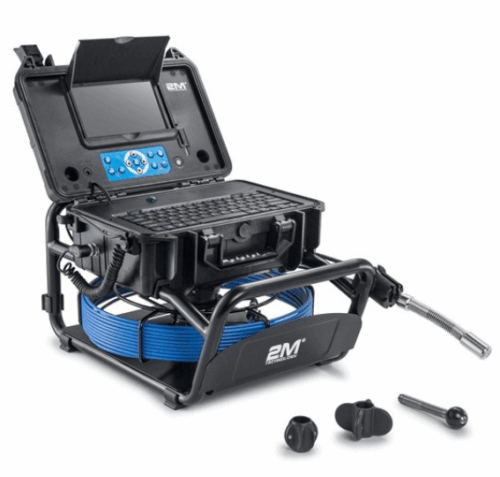

2MPICC-23 23mm Camera Box for Sewer/Drainage Pipe Inspection
REQUEST QUOTE (for best price)
• 23mm/0.9″ in. camera head
• 46mm/1.9″ in. roller skid
• 80mm/3.1″ in. roller skid
• Frame 20/40/60 meters
• 5.2mm/0.2″ in. fiberglass cable, meter counter, text entry, and wheel
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
Country of Origin | China |
---|
CAMERA | |
Camera Size | Ø 23 x 45 (mm)/Ø 0.90" x 1.77" (in.) |
Camera Total Length | Short spring camera head: 120mm/4.72" in., Long spring camera head: 250mm/9.84" in. |
Sensor | 1/3" Sony, 700 TVL |
Pixel | 976 (H) x 582 (V) |
View Angle | 120° |
Self leveling | Built-in |
Focus Distance | 20cm / 7.84" in. (approx.) |
Depth-of-Field | 100cm / 39.3" in. (approx.) |
Front Lens | Sapphire glass |
Waterproof | 20m Under Water (Camera fixed on cable) |
Shell Material | #304 stainless steel |
Lighting | Built-in 12×LED (White) |
Operating Temperature | -10°C ~ 50°C/14°F ~ 122°F |
Storage Temperature | -20°C ~ 60°C / 4°F ~ 140°F |
MONITOR | |
Screen | 7" in. 16:9 Super bright HD color LCD screen |
Resolution | 800 x 480 RGB |
Mirror and Flip | Supports image mirror, and flip |
Video Resolution | 720 x 576 25fps Max |
Video Encoding | H.264 |
Photograph | 720 x 480 / 720 x 576 |
Audio Recording | Local sound record |
On Screen | Date, time |
Output | TV and Audio output |
External Memory | Support SD memory card up to 32GB |
Data Output | USB 2.0 to PC |
Languages | English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese |
CABLE WHEEL | |
On Screen Distance Counter | Yes |
Cable Diameter | 5.2mm/0.2" in. |
OTHER SIZES AVAILABLE | |
23MM FIBERGLASS CABLE | |
2MPICC-2366 | 65.6 ft/ 20 meters fiberglass cable |
2MPICC-2398 | 98.4ft/ 30 meters fiberglass cable |
2MPICC-23131 | 131.23ft/ 40 meters fiberglass cable |
A 512Hz sonde can be added into the camera heads | |
Self-leveler can be added to the 23mm camera |
