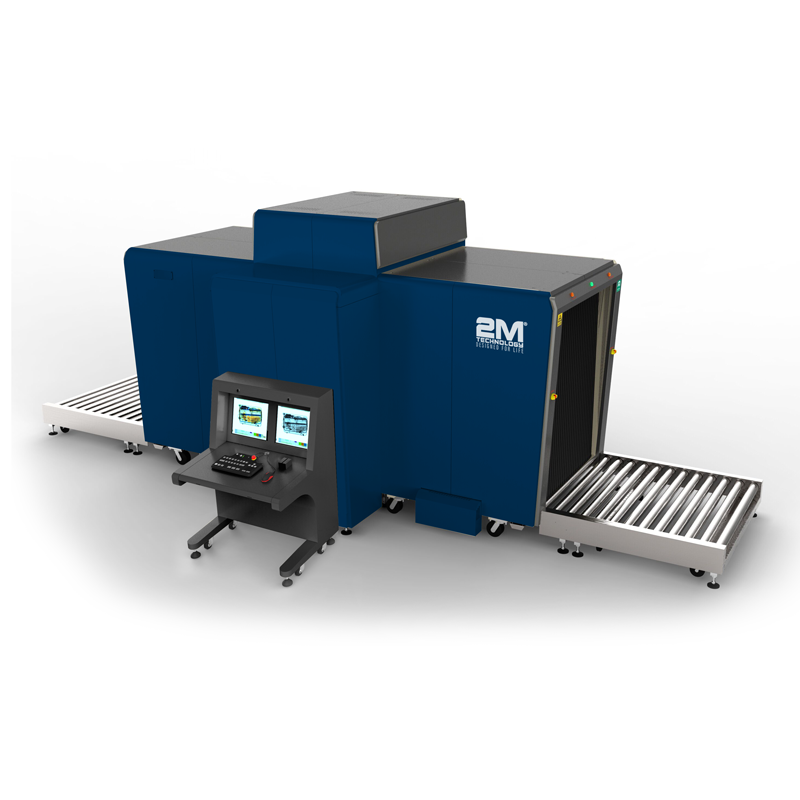

2MX-100100H Large X-Ray Baggage and Parcel Scanner

  • Tunnel Size 1000 x 1000 (mm) / 39.4″ x 39.4″ (in.)
  • Adjustable density penetration capacity140-160kv
  • 1x 17″ inch LCD monitor
  • Stabilizer and UPS for computer
  • Threat alert and material classification
  • Baggage Counter

Note: This is a special order product. Allow 4-6 weeks for delivery.

Product Documents

2MX-100100H Large X-Ray Baggage and Parcel Scanner

Features:

  • Multilingual operation
  • Automatic built-in test and self-diagnostics
  • Secure access key
  • Uninterrupted power supply (UPS)
  • Threat alert and material classification
  • Auto archiving
  • Network-Ready
  • Energy saving design
  • One key turn off
  • Time and date stamp
  • Drugs and explosives inspection
  • Baggage counter
  • Sens-Tech detection board and Hamamatsu detector

Note: This is a special order item. Allow 4-6 weeks for delivery.

Weight2094.4 lbs
Dimensions142.9 × 51 × 75.5 in
PHYSICAL SPECIFICATIONS
Tunnel Size (WxH)1000 x 1000 (mm) / 39.4″ x 39.4″ (in.)
Unit Weight950kgs/2094.4 lbs
Unit Size (LxWxH)3629 x 1295 x 1916 (mm)/

142.9″ x 51″ x 75.5″ (in.)

Gross Weight1100kgs/2204.6 lbs
Packing Size#1: 285 x 142 x 212 (cm)/112″ x 55.9″ x 83.5″ (in.)

#2: 122 x 90 x 141 (cm) / 48″ x 35.4″ x 55.5″ (in.)

GENERAL SPECIFICATIONS
Conveyor Speed0.22 m/s (0.72 ft/s)
Conveyor Height341 (mm)/13.4″ (in.)
Conveyor Capacity200kgs / 440.9 lbs
X-Ray Dose/Inspection≤4μSv
X-Ray Leakage≤1μSv/h at any point 5 centimeters outside the external surface
Penetration34mm steel
Wire ResolutionDia. 0.127mm copper wire (AWG36)
Penetration ResolutionDia. 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
Spatial ResolutionHorizontal: dia. 1.3mm, Vertical: dia. 1.3mm
Power ConsumptionMax. 1KW
Noise<60dB
Film SafetyGuarantee ASA/ISO1600 Film
X-RAY GENERATOR (TWO)
Anode Voltage140-160 KV adjustable
Ray DirectionDownward
Cooling / Duty CycleOil Cooling /100%
IMAGE SYSTEM
X-ray SensorL-Shaped Photodiode Array, 12bit deep


Images Processing

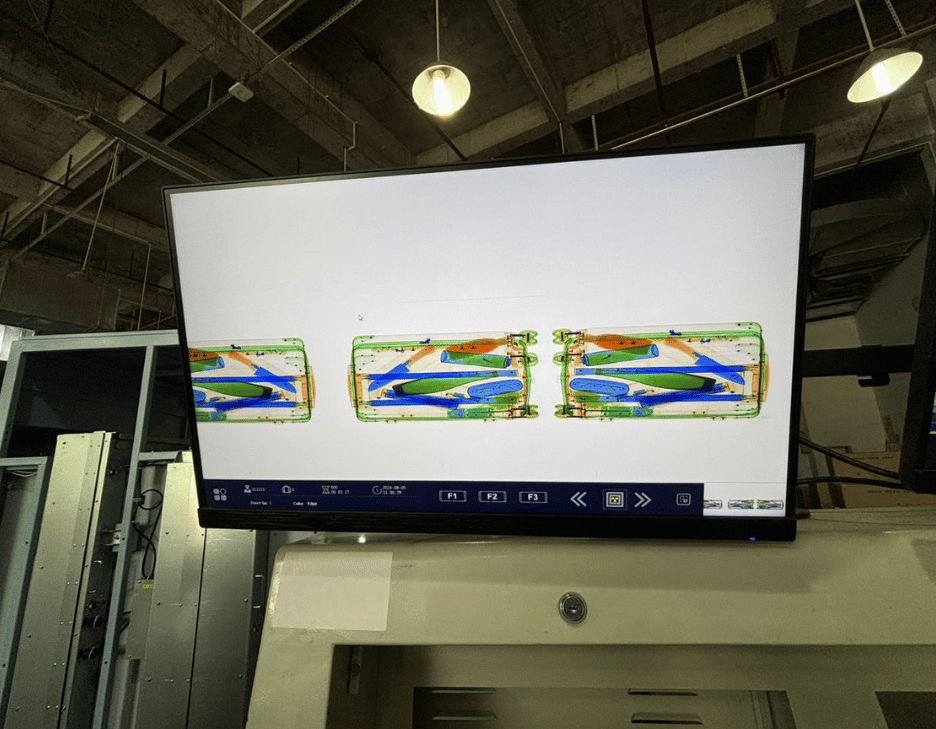

24bit real time processing ,4colors analysis, Images displayed marked date and ID No., Count the number of bags
Image DisplayHigh resolution of 1024 x 1280 pixel; Image Grey Level: 4096




Image Enhancement

1-64times enlargement continuity, Color/BW, nega- tive, high/low penetration enhancement, brightening, darkening, gray level scan, super enhancement, elimination of organic/inorganic materials, local enhancement, pseudo color processing, edge enhancement, etc.
Image Recall30 images recallable
Explosives & Narcotics DetectionSuspicious organics highlight(atomic number Zeff=7,8,9)
AlarmAlarm and box line the suspicious objects including hard to penetrate material, explosives and drugs


Threat Image Projection (TIP)

Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability


Image Archive

Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats


Miscellaneous Functions

Time/date display, counters, user management, sys- tem-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, etc.


Network Applications

Option: Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, etc.
OPERATING ENVIRONMENT
Operation Temperature/Humidity5ºC-40ºC (14ºF to 104ºF)/ 0%-90%(non-condensing)
Storage Temperature/Humidity-20ºC-60ºC (-4ºF to 104ºF)/

10%-90%(non-condensing)

Operation Power220VAC(±10%) 50±3Hz

(Optional: 100VAC, 110VAC, 120VAC, 200VAC)

Stabilizer and UPSStabilizer optional. UPS options: 15mins, 30mins, 60mins etc.
COMPUTER AND OTHER
MonitorHigh Resolution Color, LCD Accord, 17inch
RAM4GB
Hard Disk2TB
KeyboardSpecial designed
SystemWindows 10
Electric rollerThree-phase
COMPLIANCE
CertificatesISO19001; ISO14001; OHSMS18001; CE RoHS; FDA FCC
