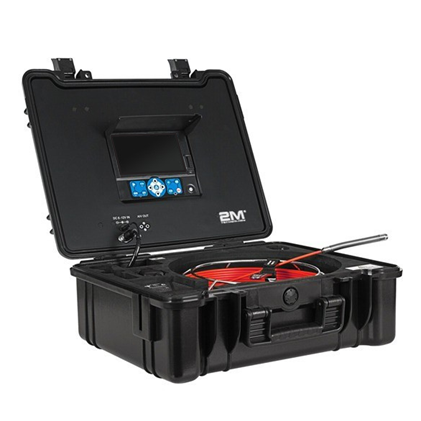

2MPICC-14 14mm Built-In 512Hz Drainage/Sewer Camera for Pipe Inspection
REQUEST QUOTE (for best price)
•14mm / 0.56″ in camera head
• 46mm/1.86″ in. roller skid
• 80mm/3.14″ in. roller skid
• Frame 20/40/60 meters
• 4.7mm/0.2″ in. fiberglass cable, meter counter, text entry and wheel
Note: This is a special order item. Allow 4-6 weeks for delivery.
Product Documents
Downloads
2MPICC-14 14mm Built-In 512Hz Drainage/Sewer Camera for Pipe Inspection
- 14mm / 0.56″ in camera head
- 46mm/1.86″ in. roller skid
- 80mm/3.14″ in. roller skid
- Frame 20/40/60 meters
- 7mm/0.2″ in. fiberglass cable, meter counter, text entry and wheel
- Tool box
- 7″ DVR includes lithium ion battery
- Wireless keyboard
- DVR remote
- 12V 1.5A power adapter
- 12V 2A car charger
- Screwdriver, inner hexagon spanner
- User manual
Note: This is a special order item. Allow 4-6 weeks for delivery.
OTHER SIZES AVAILABLE | |
4.7MM FIBERGLASS CABLE | |
2MPICC-1466 | 65.6 ft/ 20 meters fiberglass cable |
2MPICC-1498 | 98.4ft/ 30 meters fiberglass cable |
2MPICC-14131 | 131.23ft/ 40 meters fiberglass cable |
A 512Hz sonde can be added into the camera heads (sold separately) | |
| Country of Origin | China |
|---|
| CAMERA | |
| Camera Size | Ø 14 x 125 (mm)/Ø 0.6" x 4.9" (in.) |
| Sensor | 1/4" CMOS, 700 TVL |
| Pixel | 976 (H) x 582 (V) |
| View Angle | 82° |
| Focus Distance | 10cm / 0.4" in. (approx.) |
| Depth-of-Field | 20cm / 0.8" in. (approx.) |
| Front Lens | Sapphire glass |
| Waterproof | 20m Under Water (Camera fixed on cable) |
| Shell Material | #304 stainless steel |
| Lighting | Built-in 4×LED (White) |
| Operating Temperature | -10°C ~ 50°C/14°F ~ 122°F |
| Storage Temperature | -20°C ~ 60°C / 4°F ~ 140°F |
| MONITOR | |
| Screen | 7" in. 16:9 Super bright HD color LCD screen |
| Resolution | 800 x 480 RGB |
| Mirror and Flip | Supports image mirror, and flip |
| Video Resolution | 720 x 576 25fps Max |
| Video Encoding | H.264 |
| Photograph | 720 x 480 / 720 x 576 |
| Audio Recording | Local sound record |
| On Screen | Date, time |
| Output | TV and Audio output |
| External Memory | Support SD memory card up to 32GB |
| Data Output | USB 2.0 to PC |
| Languages | English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese |
| CABLE WHEEL | |
| On Screen Distance Counter | Yes |
| Cable Diameter | 4.7mm/0.18" in. |
| Cable Material | Fiberglass covered by PP |
| Operation | Mounted and can be rotated in the case |
| OTHER SIZES AVAILABLE | |
| 4.7MM FIBERGLASS CABLE | |
| 2MPICC-1466 | 65.6 ft/ 20 meters fiberglass cable |
| 2MPICC-1498 | 98.4ft/ 30 meters fiberglass cable |
| 2MPICC-14131 | 131.23ft/ 40 meters fiberglass cable |
| A 512Hz sonde can be added into the camera heads (sold separately) | |
