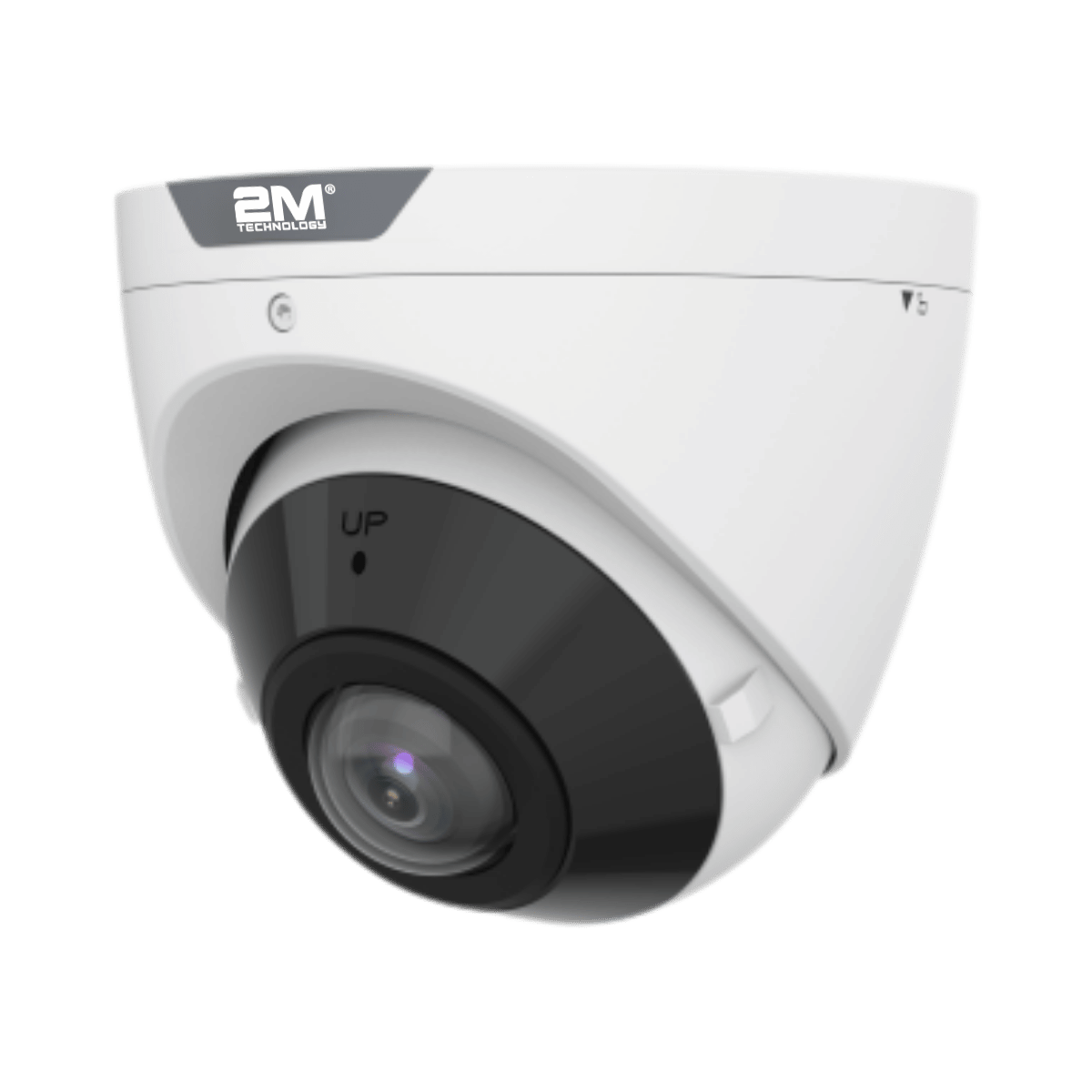

2MPANTIP-5MIR20-G 5MP Fixed Wide Angle IR Network Turret Camera

SKU: 2MPANTIP-5MIR20-G

Features:

  • High-quality 5MP image resolution
  • Wide-angle technology with horizontal viewing angle of 180°
  • Configurable dewarp level ranging from 1 to 9
  • Smart intrusion prevention system based on target classification reduces false alarms
  • True WDR technology enables clear image in strong light scenes
  • Built-in mic
  • Smart IR, up to 20 m (65.6 ft) IR distance
  • IP67 protection
  • IK10 vandal resistant

Features

Experience unparalleled coverage with the 2MPANTIP-5MIR20-G, a specialized 5MP network turret camera featuring advanced wide-angle technology. Equipped with a 1.68mm fixed lens, this camera delivers an extraordinary 180° horizontal field of view, allowing you to monitor expansive areas with a single device. To ensure natural-looking video, the built-in dewarping technology offers nine different configurable levels to suit your specific viewing requirements.

The 2MPANTIP-5MIR20-G is powered by a Smart Intrusion Prevention system that uses intelligent target classification. By focusing specifically on humans, motor vehicles, and non-motor vehicles, it effectively filters out false alarms triggered by moving leaves, birds, or changing light conditions. Combined with 120dB True WDR, this camera maintains high-quality imaging even in high-contrast or backlit environments.

Designed for maximum reliability in high-risk areas, the camera features a rugged metal housing that is both IP67 weatherproof and IK10 vandal-resistant. Whether installed in a parking lot or a public corridor, it provides consistent performance in extreme temperatures and against physical impact.

Product Highlights:

  • Ultra-Wide Surveillance: 1.68mm lens provides a full 180° view, minimizing blind spots in large rooms or open outdoor spaces.
  • High-Resolution 5MP Detail: Captures video at 2880 x 1620 resolution at up to 30 fps for smooth, detailed playback.
  • Intelligent False Alarm Filtering: Smart detection for cross-line, intrusion, and area entry/exit based on specific target types.
  • Night Vision Capabilities: Integrated Smart IR technology provides clear visibility in total darkness up to 20 meters (65.6 ft).
  • Built-in Audio: Includes an integrated microphone for real-time audio monitoring and recording.
  • Efficient Storage Support: Local edge storage via MicroSD card slot supporting up to 512 GB.

Specifications

Camera Type

Panoramic, Turret

Signal Type

IP (Network)

Resolution

5MP

Image Sensor

1/2.7" CMOS

Lens Type

Fixed

Focal Length

1.68 mm

Night Vision Type

Infra Red (IR) LED

IR Range

20 m (66 ft)

Video Compression

H.264, H.265, MJPEG, Ultra 265

Ingress Protection

IP67

Country of Origin

China
