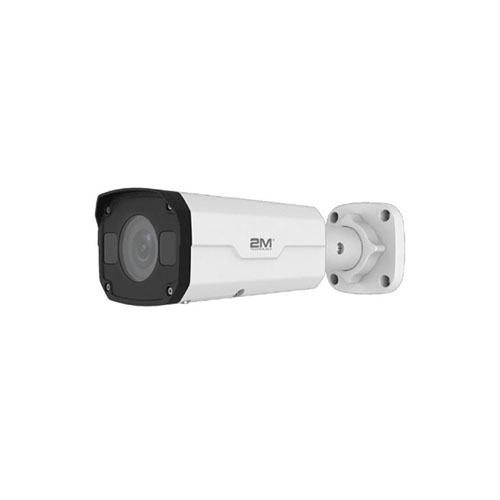

2M Technology 2MBIP-4MIR30Z-E 4MP VF Vandal-resistant Network IR Bullet Camera
- Day/night functionality
- SmartIR , up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Product Documents
The 2M Technology 2MBIP-4MIR30Z-E motorized network IR bullet cameraoffers 2D/3D DNR (Digital Noise Reduction). This bullet camera offers day/night functionality and an IR anti-reflection window to increase infrared transmittance. The Smart IR system allows up to 30m (98ft) of infrared distance.
The IP camera offers Ultra 265, H.265, H.264, MJPEG compression, as well as triple streams. The 2M outdoor IP bullet cam also offers ONVIF Network conformance. The unit can support a wide temperature range (-30°C to 60°C / -22°F to 140°F). Further, it is IP67 certified and handles a voltage range of ±25%.
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Triple streams
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- IK10 vandal resistant
- 3-Axis
Weight | 2.2 lbs |
---|---|
Resolution | 4 Megapixel (2592 x 1520) |
Signal Type | |
Lens | Motorized 2.8-12mm Lens |
Night Vision Distance | 30 Meters (100 feet) |
Series | Essential Series |
Night Vision Type | Infra Red (IR) LED |
Ingress Protection | IP67 |
Vandal Resistant | IK10 |
Country of Origin | China |
Camera | ||||||||
Sensor | 1/2.5″, 8.0 megapixel, progressive scan, CMOS | |||||||
Lens | 4.0mm@F2.0 | 6.0mm@F2.0 | ||||||
DORI Distance |
Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
4.0 | 72 | 28.8 | 14.4 | 7.2 | ||||
6.0 | 108 | 43.2 | 21.6 | 10.8 | ||||
Angle of View(H) | 91.6° | 54.2° | ||||||
Angle of view(V) | 47.2° | 32.5° | ||||||
Angle of view(O) | 112.7° | 66.7° | ||||||
Adjustment Range | Pan: 0°~360° | Tilt: 0° ~ 90° | Rotation: 0° ~ 360° | |||||
Shutter | Auto/Manual, 1~1/100000s | |||||||
Minimum Illumination |
Colour: 0.05Lux (F2.0, AGC ON)
0Lux with IR on |
|||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52dB | |||||||
IR Range | Up to 30m (98ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | 120dB | |||||||
Video | ||||||||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
Frame Rate |
Main Stream:8MP (3840*2160), Max 20fps; Sub Stream:1080P (1920*1080), Max 30fps;
Third Stream:D1(720*576), Max30fps |
|||||||
9:16 Corridor Mode | Supported | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 8 OSDs | |||||||
Privacy Mask | Up to 8 areas | |||||||
ROI | Up to 8 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Smart | ||||||||
Behavior Detection | Intrusion, cross line, motion detection | |||||||
Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
cross line | Cross a pre-defined virtual line | |||||||
motion detection | Moving within a pre-defined virtual region |
Recognition | Face detection |
Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
Statistical Analysis | People counting |
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Network | |
Protocols | IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL,QoS |
Compatible Integration | ONVIF(Profile S, Profile T), API |
Interface | |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
General | |
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
Power consumption: Max 8W | |
Dimensions (L × W × H) | 191.3×72.6×70.9mm (7.5”×2.9”×2.8”) |
Weight | 0.5kg (1.1lb) |
Working Environment | -30( ~ 60( (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Ingress Protection | IP67 |
