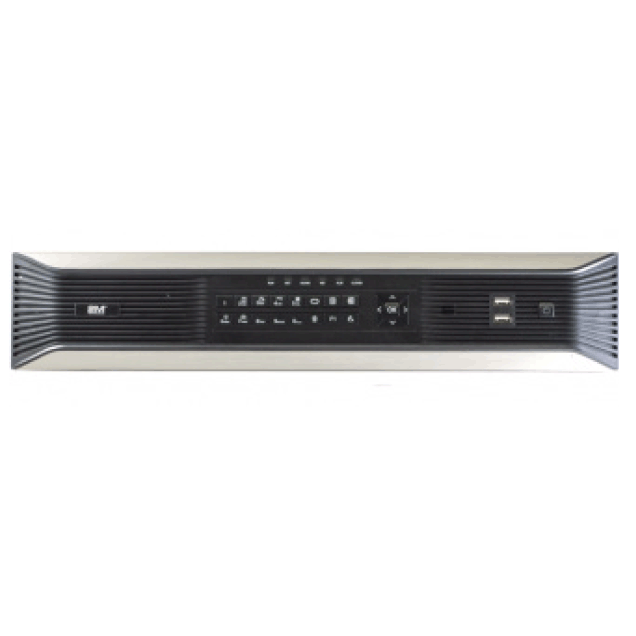

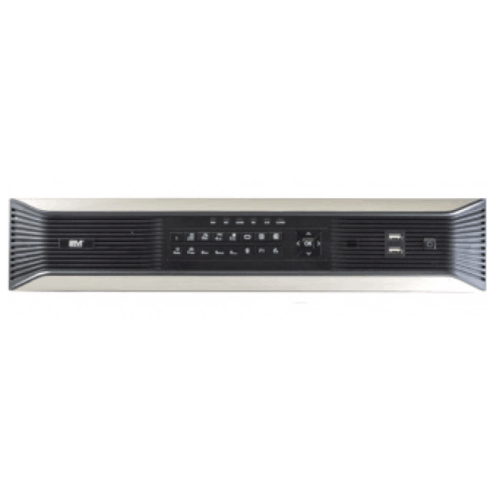

2M Technology 2MN-8232-P16-P 32 Channel Network Video Recorder
REQUEST QUOTE
- Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- 4 SATA HDDs, Up to 10TB for each HDD
- ONVIF Compatible
Product Documents
2M Technology 32-CH Network Video Recorder
Features:
- Ultra 265/H.265/H.264 video formats
- 16/32-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
- Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
- HDMI1/VGA and HDMI2 independent outputs provided
- Up to 12 Megapixels resolution recording
- 4 SATA HDDs, Up to 10TB for each HDD
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- Support for 12V Power output
- Plug & Play with up to 16 independent PoE network interfaces
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
| Weight | 11.55 lbs |
|---|---|
| Signal Type | |
| Number of Channels | |
| PoE Channels | |
| Internal Hard Drives SATA Ports | 4 SATA Hard Drives |
| Resolution | 4 Megapixel (2592 x 1520) |
| Series | Professional Series |
| VIDEO & AUDIO | |
| IP Video Input | 32-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 320Mbps |
| Outgoing Bandwidth | 320Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
|
HDMI/VGA Output |
HDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768/60Hz HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 16-ch |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Decoding | |
| Decoding format | Ultra 265, H.265, H.264 |
| Live view/ Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080p@30, 32 x
960p@25 |
| Hard Disk | |
| SATA | 4 SATA interfaces |
| Capacity | up to 10TB for each disk |
| External Interface | |
|
Network Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
|
Serial Interface |
1 x RS485 |
| USB Interface | Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
|
Power Output |
12 VDC |
| PoE | |
| Interface | 16 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port
Max 200W in total ( 12.5W for each ) |
| Supported Standard | IEEE 802.3at |
| GENERAL | |
|
Power Supply |
100 ~ 240 VAC
Power Consumption: ≤ 20 W( without HDD ) |
|
Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90%
RH(non-condensing) |
|
Dimensions |
86 x 442 x 425 (mm) (3.4″ x 17.4″ x 16.7″) (in) |
| Weight
( without HDD ) |
≤ 5.24 Kg ( 11.55 lb ) |
