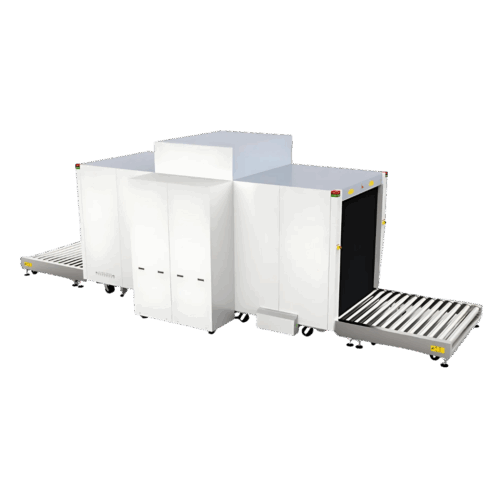

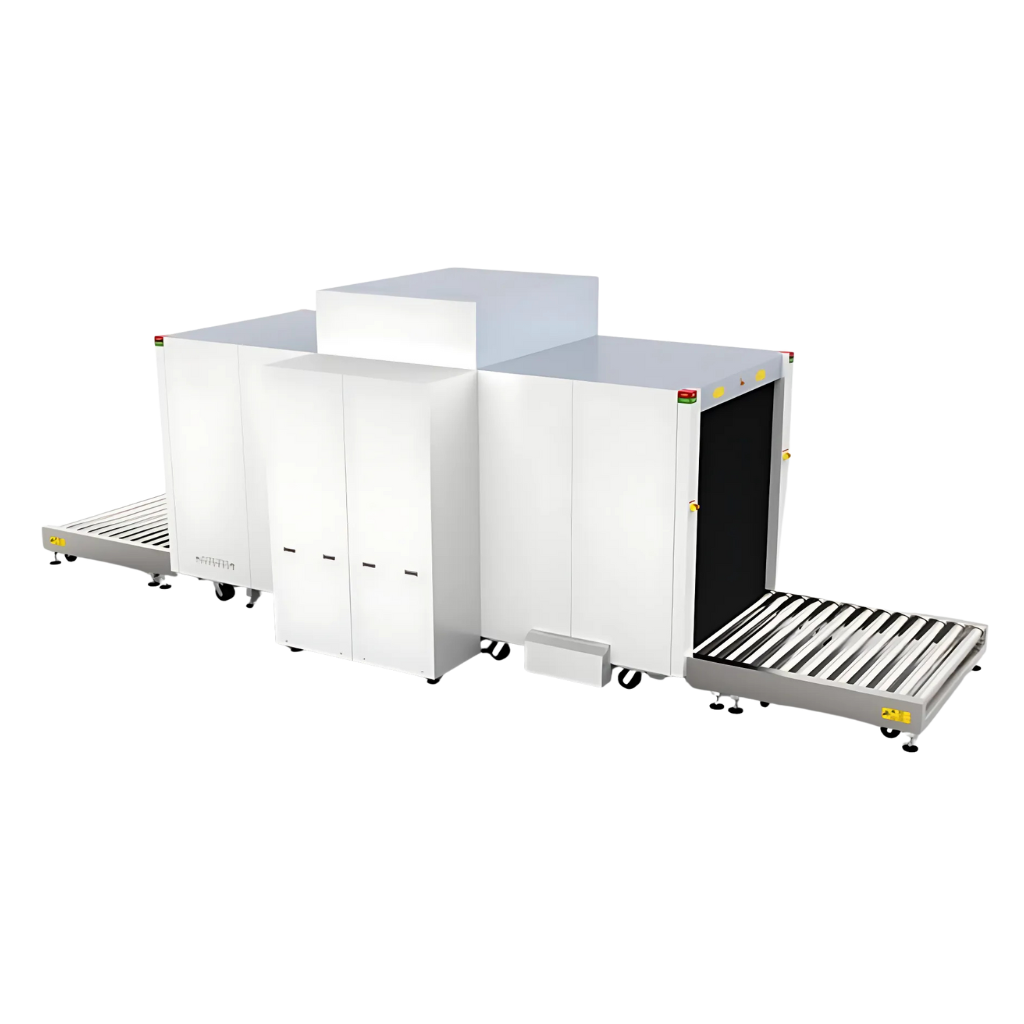

2MX-180180D Large Tunnel Dual-View Pallet and Cargo X-Ray Scanner

SKU: 2MX-180180D

Key Features:

  • Dual view technology with images from two angles
  • High resolution, high penetration, and good image quality
  • High load-bearing capacity for large or heavy items
  • Threat alert and material classification for enhanced detection
  • Energy-saving design
  • Drugs and explosives detection for advanced threat identification

Features

The 2MX-180180D is a state-of-the-art, heavy-duty X-ray scanner engineered for comprehensive inspection of large cargo, baggage, and freight with superior imaging clarity, robust construction, and advanced detection capabilities. Designed to meet the rigorous demands of industrial security checkpoints, customs inspection, and critical infrastructure protection, this scanner combines high throughput, expansive tunnel size, and cutting-edge imaging technology to deliver reliable, precise, and efficient threat detection.

Engineered for Large-Scale Cargo and Heavy-Duty Inspection

With an impressive tunnel dimension of 1805 mm width by 1800 mm height (71.1 x 70.9 inches), the 2MX-180180D accommodates oversized packages, pallets, luggage, and freight of various shapes and sizes with ease. The unit’s industrial-grade design is suitable for ports, warehouses, border control, and airports handling heavy and voluminous goods.

The robust conveyor system supports a maximum load of 2000 kg (4409 lbs), moving items smoothly at a controlled speed of 0.22 m/s, either forward or backward, to optimize screening flow and reduce bottlenecks.

Durable Construction and Safety Compliance

The scanner’s frame is constructed from 304-grade stainless steel, reinforced with 2–5 mm cold-rolled plates and square steel, offering exceptional durability and corrosion resistance in demanding environments. A double-layer staggered lead-impregnated safety curtain ensures operator safety by minimizing X-ray leakage, which is certified to be less than 1μGy/h at any point 5 cm outside the external surface, well below international safety limits.

X-ray dosage during inspection is meticulously controlled, with a maximum dose of 7 μGy, maintaining safety for operators and minimizing impact on screened items, including sensitive film materials guaranteed safe up to ASA/ISO1600 standards.

Dual High-Powered X-ray Generators for Superior Imaging

The 2MX-180180D is equipped with two 200 kV X-ray generators, delivering vertical and horizontal beam directions for comprehensive dual-view inspection. The sealed oil cooling system supports a 100% duty cycle, ensuring consistent performance without overheating during continuous operations.

This dual-beam approach enhances the detection of contraband, explosives, narcotics, and other suspicious materials by providing multiple angles and depths, reducing false negatives and improving security confidence.

Advanced Imaging and Detection Capabilities

The scanner features a sophisticated imaging system with multi-functional image processing options, including:

  • Color and black-and-white imaging modes
  • Local enhancement, high and low penetration settings
  • Super enhancement and edge enhancement for crystal-clear detail
  • Organic and inorganic stripping to isolate materials
  • Reverse color, brightening/darkening, and gray level adjustments
  • Continuous zoom up to 64x magnification
  • Pseudo color imaging for easy material differentiation
  • Organics enhancement to highlight potential threats

An integrated Suspicious Organics Highlight system detects materials with specific atomic numbers (Zeff=7,8,9), facilitating rapid identification of explosives and narcotics. The scanner’s Suspicious Alarm and threat marking functions visually flag hard-to-penetrate items and dangerous substances with alert boxes for operator attention.

Enhanced Operational Features and User Interface

Two high-resolution 21.5-inch LCD monitors with 1280 x 1024 resolution provide clear, real-time visuals of scanned items. The system’s Intel i3 3.3 GHz CPU, 4GB RAM, and 2TB hard drive ensure smooth performance and ample storage capacity.

Operators benefit from a wide range of practical functions such as:

  • Time/date display and user management
  • System on/off timers and power-on self-test diagnostics
  • Bidirectional scanning and forced scanning modes
  • Image search, export (to USB), and archive capabilities (up to 100,000 images)
  • Threat Image Projection (TIP) for realistic simulated threat insertion during operator training and vigilance maintenance
  • Stimulant training and system logs for auditing and compliance

The scanner runs on Windows 10 platform with a specially designed keyboard and supports standard industrial electric roller mechanisms with three-phase power compatibility.

Flexible Installation and Environmental Suitability

Operating reliably in temperatures ranging from 5°C to 40°C (41°F to 104°F) and relative humidity levels of 0%-90% (non-condensing), the 2MX-180180D adapts to diverse environmental conditions common in logistics hubs and customs environments. It can be stored safely between -20°C and 60°C (-4°F to 140°F).

Electrical requirements include 220 V (+10% ~ -15%) at 50±3 Hz, with options for 100-130V, 200-250V, and 60 Hz, allowing global deployment flexibility.

Optional Accessories and Customization

Expand your system’s functionality with optional components such as additional rollers for conveyor extension, uninterrupted power supply (UPS) units for backup power, and tailored software upgrades to meet specific security protocols or throughput demands.

Summary

The 2MX-180180D X-ray Scanner stands out as a powerful, reliable, and versatile solution for inspecting large freight, baggage, and cargo in high-traffic, high-security environments. Combining expansive tunnel size, dual high-voltage X-ray generators, cutting-edge imaging technology, and rigorous safety features, it delivers unparalleled threat detection accuracy and operational efficiency. Ideal for border control, customs, ports, and industrial security checkpoints, the 2MX-180180D protects assets and people without compromising speed or precision.
