X-ray contaminant detection in juice cups — the process of identifying foreign bodies inside liquid-filled packaging using X-ray imaging — can reliably detect stainless steel as small as 0.6 mm and ceramic as small as 0.8 mm under optimized conditions. Glass detection in liquid products is significantly more difficult: reliable detection begins at 4.0 mm and requires product-specific optimization. Detection performance is product-dependent — the same X-ray system produced 2.5x better stainless steel sensitivity across two commercially produced juice cup products with different formulations.
This case study presents validated performance data from live production samples to help food safety managers, quality control teams, and X-ray inspection buyers understand real-world x-ray contaminant detection in juice cups limits — and what drives the performance difference between products.
Need to validate X-ray detection limits for your food product?
2M Technology can help test product samples and recommend the right inspection configuration for your line.
What Is X-Ray Contaminant Detection in Juice Cups?
X-ray contaminant detection in juice cups is the process of passing liquid-filled packaging through an X-ray beam to identify foreign bodies by their density difference from the surrounding product. The minimum size at which a foreign object can be reliably identified is called the minimum detectable size (MDS), expressed in millimeters, and varies by contaminant material, product formulation, and inspection system settings.
For juice cup manufacturers, X-ray inspection is typically established as a Critical Control Point (CCP) under HACCP plans, with requirements set by FDA FSMA Preventive Controls for Human Food (21 CFR Part 117) and GFSI-recognized certification schemes including SQF Edition 9, BRC Issue 9, and FSSC 22000 Version 6. The validated MDS for each contaminant type must be documented and re-validated after any process or product change.
For budgeting and equipment reference, see our guide to food X-ray inspection system cost or browse our X-ray inspection machine for packaged food options.
Why X-Ray Contaminant Detection Limits Vary by Product
X-ray detection works by measuring the contrast between a contaminant and the surrounding product. Higher-density materials absorb more X-ray energy, creating a darker area on the detector image. Key factors that affect contrast in juice cups:
| Factor | Effect on Detection |
|---|---|
| Liquid density and composition | Denser liquids increase baseline attenuation, narrowing the contrast window |
| Ingredient consistency (pulp, sugars) | Variable density creates image noise that masks small contaminants |
| Packaging material thickness | Thicker laminate reduces total X-ray transmission |
| Product depth and fill volume | Greater liquid depth increases the X-ray path length through the product |
| X-ray energy level (kV) | Higher energy improves penetration but can reduce contrast |
| Conveyor speed and stability | Vibration or inconsistent speed causes motion blur on the detector |
Why Glass Is the Hardest Contaminant to Detect via X-Ray
| Contaminant | Density (g/cm3) | Contrast vs. Apple Juice | Typical MDS Range |
|---|---|---|---|
| SUS304 Stainless Steel | 8.0 | Very high — strong signal | 0.6–1.5 mm |
| Ceramic (alumina) | 3.9 | Moderate-high — clear signal | 0.8–1.2 mm |
| Soda-lime Glass | 2.5 | Low — weak signal | 4.0 mm+ in liquid |
| Apple Juice (reference) | 1.05–1.08 | — | — |
Stainless steel is approximately 7.6x denser than apple juice, producing strong X-ray contrast. Glass is only 2.3x denser — close enough to the liquid that the signal difference can fall below the detector noise floor, particularly as the surrounding liquid attenuates the beam further.
On the regulatory side, FDA Compliance Policy Guide Sec. 555.425 (Hard or Sharp Foreign Objects) identifies glass as a category of concern for physical adulteration. Manufacturers should consult the CPG directly and work with their regulatory and food safety teams to determine appropriate action thresholds for their specific product and consumer population — this case study presents test data, not regulatory advice.
X-Ray Contaminant Detection Test Design
The following test design was used to establish validated x-ray contaminant detection in juice cups performance benchmarks for two commercially produced products.
| Variable | Detail |
|---|---|
Products tested | SUNCUP Apple Juice Cups; comparable juice cup product |

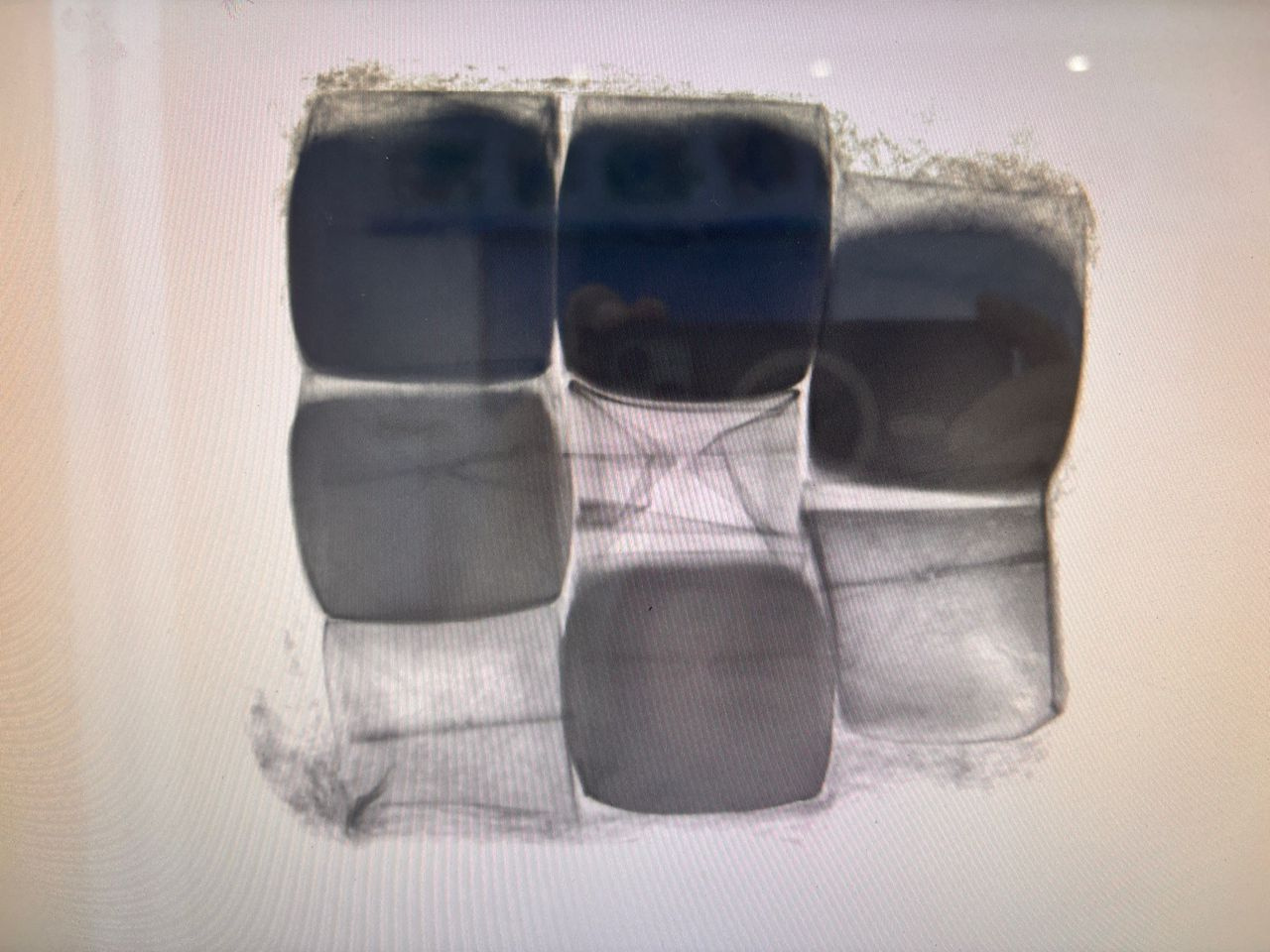

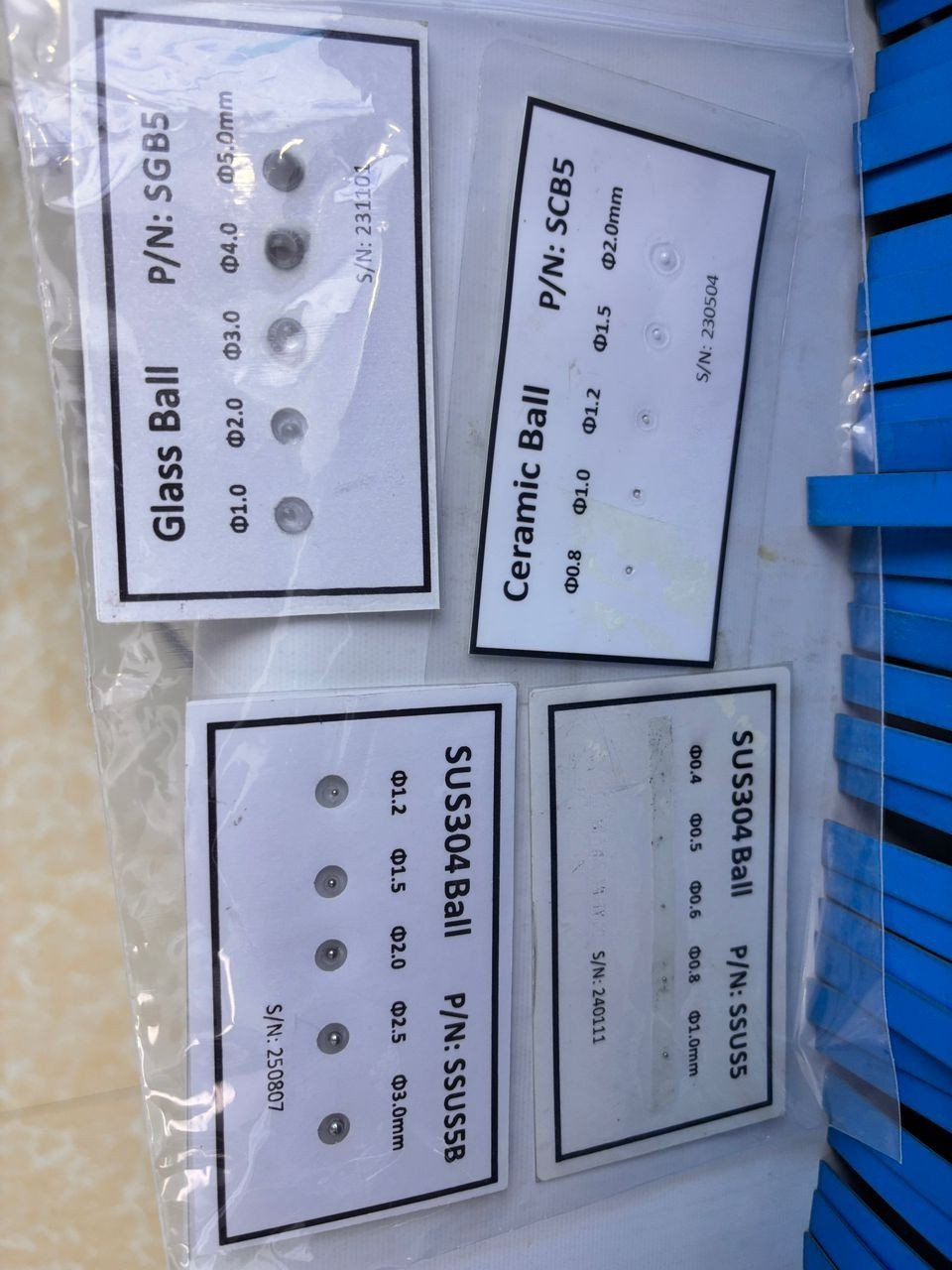

| Contaminant types | SUS304 Stainless Steel (P/N: SSB5), Ceramic (P/N: SCB5), Glass (P/N: SGB5) |
| Size range tested | 0.4 mm to 5.0 mm depending on material |
| Method | Multiple passes per contaminant per size; sensitivity optimized per product |
| Environment | Controlled laboratory with traceable test equipment, production-equivalent settings |

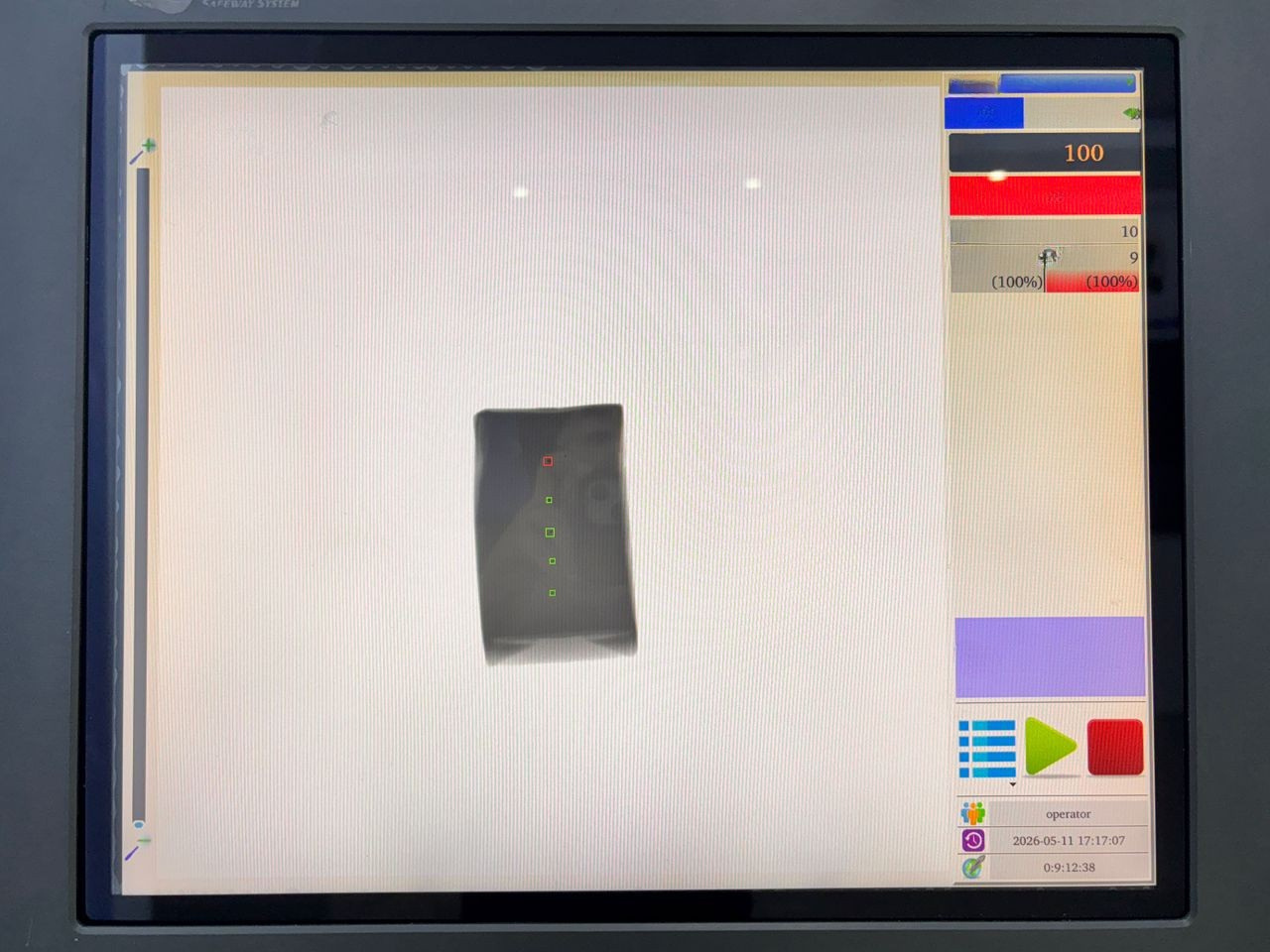

X-Ray Contaminant Detection Test Results

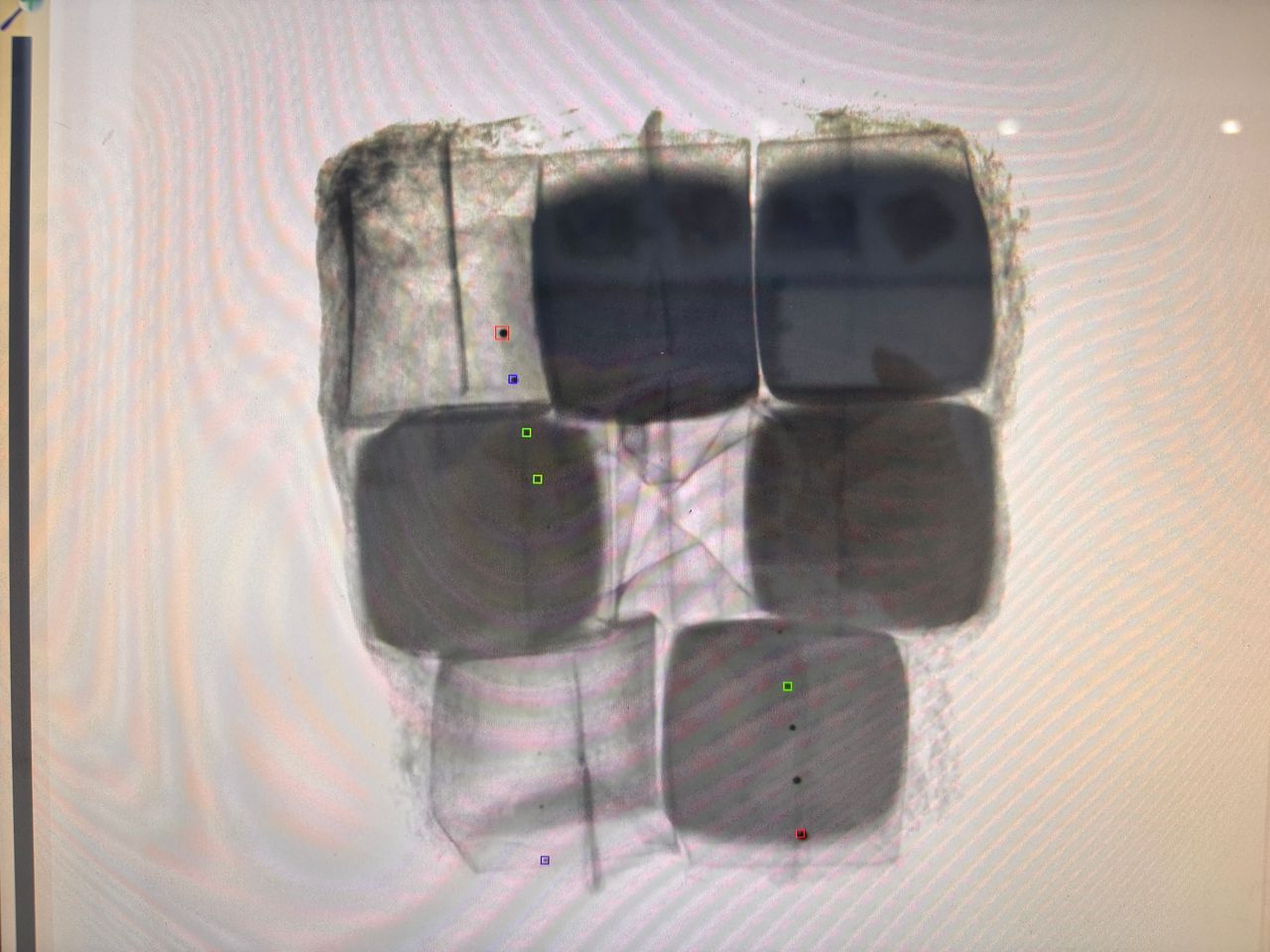

SUNCUP Apple Juice Cups
| Contaminant | Minimum Detected Size | Result |
|---|---|---|
| SUS304 Stainless Steel | 1.5 mm | Detected |
| Ceramic | 1.0 mm | Detected |
| Glass | Not detected to 5.0 mm | Not detected |
Comparable Juice Cup Product
| Contaminant | Minimum Detected Size | Result |
|---|---|---|
| SUS304 Stainless Steel | 0.6 mm | Detected |
| Ceramic | 0.8 mm | Detected |
| Glass | 4.0 mm | Detected |
Side-by-Side X-Ray Detection Performance Gap
| Contaminant | SUNCUP Cups | Comparable Product | Performance Ratio |
|---|---|---|---|
| SUS304 Stainless Steel | 1.5 mm | 0.6 mm | 2.5x more sensitive |
| Ceramic | 1.0 mm | 0.8 mm | 1.25x more sensitive |
| Glass | Undetected (5.0 mm+) | 4.0 mm | Glass detectable |
Performance Analysis: X-Ray Contaminant Detection in Juice Cups
Metallic and Ceramic Detection: Strong and Reliable
The X-ray system demonstrated consistent, reliable x-ray contaminant detection in juice cups performance for both stainless steel and ceramic contaminants across both products. The performance gap is explained by differences in product formulation and packaging rather than any equipment limitation. Under optimal conditions, the system achieved 0.6 mm stainless steel detection and 0.8 mm ceramic detection — strong benchmarks for foreign body detection in liquid products.
Glass Detection: A Critical Gap in Juice Cup X-Ray Inspection
Glass contaminants were undetectable at all tested sizes up to 5.0 mm in the SUNCUP product. In the comparable product, glass detection was achieved at 4.0 mm. Key implications for food safety programs:
- Physical hazard risk assessments under FDA FSMA (21 CFR 117) require manufacturers to identify and control hazards reasonably likely to occur — glass from ingredient processing or packaging contact should be evaluated as part of that analysis
- GFSI-recognized schemes require documented, product-specific CCP validation for foreign body controls — a generic X-ray validation does not satisfy this requirement
- A 4.0 mm glass fragment presents an injury risk, particularly for the primary consumer of juice cup products: children
- Glass undetectable up to 5.0 mm means the X-ray CCP cannot function as a validated glass control at any threshold below that size
X-Ray vs. Metal Detector for Food Packaging: Choosing the Right Technology
| Criterion | X-Ray Inspection | Metal Detection |
|---|---|---|
| Stainless steel detection | 0.6 mm (liquid products) | 1.5–2.5 mm (liquid, aperture-dependent) |
| Ceramic detection | 0.8 mm | Not detected |
| Glass detection | 4.0 mm (optimized, liquid) | Not detected |
Calcified bone | Detectable | Not detected |
| Metallic packaging | Works through foil | Cannot inspect through foil |
| Equipment cost | Higher — see food X-ray inspection system cost guide | Lower |
For most juice cup applications where glass is an identified hazard, X-ray inspection machines for packaged food provide the broadest hazard coverage. Metal detection remains a cost-effective option where only metallic contamination is a validated risk. See our full breakdown of X-ray vs metal detector for food packaging to compare total cost of ownership.
Regulatory Context for X-Ray Contaminant Detection
Note: The following is an overview of relevant food safety frameworks for informational purposes. It is not legal or regulatory advice. Manufacturers should consult their regulatory counsel and food safety team to determine applicable requirements for their specific products and markets.
| Standard | Relevant Clause | What It Requires |
|---|---|---|
| FDA FSMA (21 CFR Part 117) | Subpart G — Hazard Analysis | Requires analysis of physical hazards reasonably likely to occur and validated preventive controls where applicable |
| FDA CPG Sec. 555.425 | Hard/Sharp Foreign Objects | Describes FDA’s enforcement policy for physical adulteration involving hard or sharp objects; manufacturers should review directly for applicable context |
| SQF Edition 9 | 11.7.2 | Foreign matter control CCPs must be validated and re-validated after any change |
| BRC Issue 9 | 4.10.1 | Inspection equipment must be validated for the specific product being inspected |
| FSSC 22000 v6 | ISO 22000:2018 §8.5.4 | Control measures for physical hazards must be validated for effectiveness |
Key Takeaways: X-Ray Contaminant Detection for Juice Cup Manufacturers
- Validate against your actual product — not generic benchmarks. Equipment vendor specifications are measured on phantom test standards. Test your specific SKU before establishing your CCP threshold for x-ray contaminant detection in juice cups.
- Glass in liquid requires dedicated validation and may need supplementary controls. If glass is an identified hazard in your process, your X-ray system must be validated for glass at a size that addresses your risk assessment — not assumed to be covered by standard metal or ceramic validation.
- Reformulation and process changes trigger re-validation. Juice concentrate ratio changes, supplier switches, packaging gauge changes, fill volume changes, and conveyor speed changes can all shift your MDS.
- Document system settings at time of validation. X-ray energy (kV), belt speed, sensitivity settings, and image processing parameters must be recorded alongside test results.
- Annual re-validation is the minimum — not the ceiling. For x-ray contaminant detection in juice cups specifically, high-risk products and frequent changeovers often demand more frequent re-validation cycles.
How to Validate X-Ray Contaminant Detection for Juice Cups
- Select certified test spheres matching your identified hazard materials at sizes relevant to your risk assessment
- Run validation with production product under normal production conditions including line speed and belt loading — not water or a surrogate
- Test at decreasing sizes until consistent detection failure is observed; record the smallest size reliably detected across five or more passes
- Document system settings (kV, belt speed, sensitivity, detector calibration date) at the time of validation
- Establish CCP reject threshold based on validated MDS and record in your HACCP plan with defined re-validation triggers
Questions about the right system for your line? Our team can walk through food X-ray inspection system cost and recommend configurations suited to foreign body detection in liquid products.
Frequently Asked Questions About X-Ray Contaminant Detection in Juice Cups
-
What is the minimum detectable size for stainless steel in juice cup X-ray inspection?
Under optimized conditions, SUS304 stainless steel can be detected at 0.6 mm in liquid-filled juice cups. Standard setup achieves approximately 1.5 mm. The specific threshold depends on product liquid density, packaging thickness, and X-ray system calibration — which is why product-specific validation is required.
-
Why can X-ray systems not detect glass in liquid products?
Glass has a density of approximately 2.5 g/cm3, compared to apple juice at approximately 1.05–1.08 g/cm3. The low contrast ratio between glass and liquid, combined with X-ray signal attenuation from the surrounding liquid mass, means glass signals can fall below the detector noise floor. With product-specific optimization, detection at 4.0 mm is achievable in liquid-filled packaging.
-
Does my HACCP plan need a separate X-ray validation for each juice SKU?
Yes. FDA FSMA (21 CFR 117) and all GFSI-recognized schemes require CCP validation to be product-specific. A validated MDS for one juice formulation cannot be assumed to apply to another SKU with different density, viscosity, fill volume, or packaging specification.
-
What contaminant types are most detectable in x-ray contaminant detection for juice cups?
Ceramic is most detectable (0.8 mm minimum under optimized conditions), followed closely by stainless steel (0.6 mm). Both are significantly more detectable than glass in liquid products, where reliable detection begins at 4.0 mm under optimized conditions.
-
How often should X-ray inspection systems be re-validated for juice products?
Annual re-validation is the industry minimum. Re-validation is required after any change to product formulation, packaging, or inspection system settings under SQF Edition 9 (11.7.2), BRC Issue 9 (4.10.1), and FSSC 22000 v6. Re-validation triggers should be explicitly documented in your HACCP plan.
-
What factors most affect x-ray contaminant detection sensitivity in liquid-filled packaging?
In order of impact: (1) liquid density and composition, (2) product fill consistency, (3) packaging material gauge and laminate structure, (4) X-ray energy settings (kV), (5) conveyor belt speed and vibration control, (6) detector sensitivity calibration age.
-
Is X-ray or a metal detector better for food packaging inspection of juice cups?
For juice cups where glass is an identified hazard, X-ray contaminant detection is the only single-technology option — metal detectors cannot identify glass, ceramic, or stone. X-ray also penetrates metallic packaging that blocks metal detectors. For a full comparison, see our guide to X-ray vs metal detector for food packaging including cost and sensitivity trade-offs.
-
What is FDA’s position on glass contaminants in food?
FDA’s Compliance Policy Guide Sec. 555.425 addresses hard or sharp foreign objects in food, including glass. Manufacturers should review the CPG directly and consult their regulatory and food safety counsel to determine applicable action thresholds for their specific product — this case study presents equipment test data and does not constitute regulatory advice.
-
Why did the same X-ray system produce different results for two similar juice cup products?
The performance gap is driven by product-specific factors — liquid density, ingredient consistency, packaging thickness — not equipment calibration. A denser or more variable liquid attenuates X-rays more heavily, narrowing the contrast window for low-density contaminants. This is the fundamental reason product-specific validation is a regulatory requirement across FSMA, SQF, BRC, and FSSC schemes.
Glossary of X-Ray Contaminant Detection Terms
Key terms used in x-ray contaminant detection in juice cups validation and food safety documentation:
Minimum Detectable Size (MDS): The smallest contaminant size that an X-ray inspection system can reliably identify within a specific product under defined conditions. Expressed in millimeters.
Critical Control Point (CCP): A step in a food production process where a control measure is essential to prevent, eliminate, or reduce a food safety hazard to an acceptable level.
GFSI: Global Food Safety Initiative — a benchmarking organization that recognizes food safety certification schemes including SQF, BRC, FSSC 22000, and IFS. See mygfsi.com.
SUS304: A common grade of austenitic stainless steel used as a standard test contaminant in x-ray contaminant detection validation due to its well-characterized X-ray absorption properties.
X-ray attenuation: The reduction in X-ray intensity as the beam passes through a material. Higher-density materials attenuate more energy, creating stronger signal contrast on the detector image.
Last updated: May 2026. Testing conducted under controlled laboratory conditions using calibrated test spheres. Results reflect performance at the time of testing and are specific to the products and X-ray system configuration used. Results should not be applied to other products without separate product-specific validation. This page is for informational purposes only and does not constitute regulatory, legal, or food safety advice.
