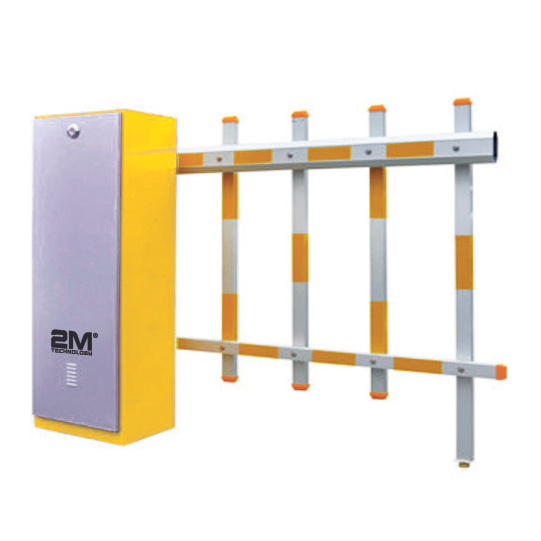

2MAGB-NFN-E Intelligent Barrier Gate (AC Turbine Vortex Pole Motor)

• Normal-speed of open/close: 6 sec
• Single fence arm, Max. length 4.5m for 6 sec
• Arm direction is interchangeable
• Fence arm can be changed into crank arm very easily

Product Documents

Dimensions55.1 × 11.8 × 39.4 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 480W
Motor240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance﹥65ft
Spring1~2 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. outputRelay NO output, Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface9600bps, ASCII decimal encoded
Arm3.38″×1.72″ Aluminum alloy octagonal arm with rubber bar, Max. 19.6ft Round arm with foam, Max. 11.4ft
Housing1.8mm cold-roller sheet, IP54
Housing Size (HxWxD)355×267×1035 (mm) / 13.9″ x 10.5″ x 40.7″ (in)
Package Size405×346×1070 (mm) / 15.9″ x 13.6″ x 42.1″ (in)
Gross Weigtharound 46 KG / 101lb
Operating temperature-30C° to 55C° / -22F° to 131F°
Humidity10%-95%
