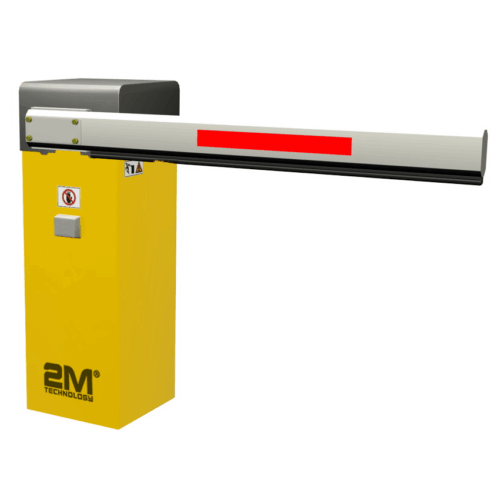

2MAGB-NSL Intelligent Barrier Gate with LED (DC24V Brushless Servo Torque Motor)
REQUEST QUOTE (for best price)
- Normal-speed of open/close: 2~6 sec. adjustable
- Octagonal straight arm with rubber & LED light bar
- Arm direction is interchangeable without changing parts
Product Documents
Downloads
- Normal-speed of open/close: 2~6 sec. adjustable
- Octagonal straight arm with rubber & LED light bar, length following (or Max.3.5m/11.5’ft round arm)
- 2 sec./Max. 4m arm
- 3 sec./Max. 4m arm with swing-off
- 3 sec./Max. 5m arm w/o swing-off
- 6 sec. /Max. 6m arm w/o swing-off
- Includes: arm x1, remote x2, air switch x1, push button x1 which opens/ closes barrier
- Boom bracket, swing-off and power supply for LED Bar are sold separately
- Housing color optional: yellow(default)/orange/white/red/blue
- Arm direction is interchangeable without changing parts
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
SKU: 2MAGB-NSL
Categories: Gate Barriers, Parking Lot Barriers, Traffic & Parking Access Control
Tags: 2MAGB-NSL, Barrier, Brushless, Gate, Intelligent, LED, LED Bar, motor, Parking Lot Barriers, servo, Special Order, torque, Traffic
Dimensions | 55.1 × 11.8 × 39.4 in |
---|---|
Stainless Steel Types | |
Country of Origin | China |
GATE FEATURE | |
Power Supply | AC 85~264V,50~60HZ, 50W |
Motor | 50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle |
Remote (Optional) | Distanceï¹¥20m |
Spring | 1~3 pcs. spring balance |
Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
Loop Detector Input | pulse width 100ï¹¥ ms |
IR Detector Input | pulse width 100ï¹¥ ms |
Up & Down Input | pulse width 100ï¹¥ ms |
Traffic Light Output | AC220V output power (passive), current Max. 3A/ AC220V |
Loop Detector Syn. Output | Relay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V |
RS485 Interface | 9600bps, ASCII decimal encoded |
Arm | 45×100mm Aluminum alloy octagonal arm with rubber bar, Max.6m Round arm with foam, Max. 3.5m |
Housing | 2mm cold-roller sheet, IP 54 |
Housing Size (HxWxD) | 950×320×329mm |
Package Size | 1100×480×430mm |
Gross Weight | around 46 KG |
Operating Temperature | -30°C to 55°C |
Humidity | 10%-95% |
