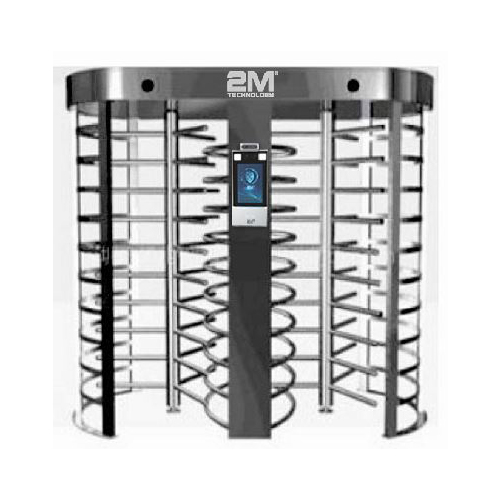

2MFHT-6 Full Height Double Channel Turnstile Gate with Face Recognition and Temperature Measurement Module


  • Dual channel full height turnstile
  • Temperature and face recognition access control module
  • Available with Brush-less, Brush or Servo Motor
  • Constructed of 304 stainless steel
  • Can support also two-sided card readers, paper tickets, fingerprint / bio-metric scanning, and coins

Product Documents

The 2MFHT-6 Full Height Dual Channel Turnstile Gate with Face Recognition and Temperature Measurement Module

Features:

  • Double Full height turnstiles
    Stainless steel 304#
    Supports input way: Two-side card reader, paper ticket, fingerprint, coins
    Infrared light detecting,Alarming when illegal infiltration or tailing
  • Working mode and opening time is adjustable
  • Non-contact detection, abnormal body temperature warning system
    Supports body temperature detection and personnel information binding, which can quickly confirm personnel information and do body temperature detection
    Built-in deep learning dedicated chip, Supports local off-line recognition,
    10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Avoid clamping
  • Supports anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
Temperature Detection Features

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Module Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

Options Available with this Model

MODEL

2MFHT-6

MOTOR TYPE

SEMI AUTOMATIC

AUTOMATIC

BRUSHLESS

Control Model

Electromagnetic

Brush Motor

Brushless Motor

Drive Type

Push By Hand

Drive By Motor

Drive By Motor

Power On

Pick Up Arm By Hand

Pick Up Arm By Motor

Pick Up Arm By Motor

Max Flow Per Day

500

1000

2000

Life Time

2-3 Years

3-5 Years

At Least 5 Years

MTBF

3 Million

5 Million

10 Million

Controller

Standard Function Can Be Set

Full Function Can Be Set

Full Function Can Be Set

Structure

Simple

Stable

Strong

Mechanical Friction

Mechanical Shock

Yes

Small

Noise

Moderate

Quiet

Almost None

After Service

Electromagnetic  (Perishable)

Low

Low

Dimensions94.5 × 59.1 × 88.6 in
GATE FEATURE
Turnstile TypeDouble full height turnstile
Cabinet material304 stainless steel (standard)
316 stainless steel (optional)
FinishStainless steel satin finish
SafetyFail-safe (free exit/entry)
Dimension1500 x 1500 x 2250 mm 59.06” x 59.06” x 88.58” (in)
DirectionSingle / bidirectional
Power supplyAC110–220 V, 50/60Hz
Flow rate50 person/min
Working environmentIndoor & outdoor
Unlock ModeSolenoid(standard)
Motor drive(optional)
MotorDC brush motor (standard)
DC brushless motor (optional)
DC servo motor (optional)
FACIAL RECOGNITION
Operation SystemLinux
Face Recognition Accuracy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C - 45°C
Measurement Accuracy0.1°C
Measurement Deviation≤±0.3°C
Measurement Distance1m
Authentication ModeFace Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card TypeMifare 1 Card
Support user library addition, deletion, update
Record ManagementSupport local recording and real-time upload
InterfaceLAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1
Power SupplyInput 12V±25% DC
ScreenTouch Screen, Size:7 inch, Resolution: 600×1024
CameraDual Lens, 2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (L×W×H)134.0mm×33.0mm×305.0mm
Working EnvironmentFor access control terminal: -20°C~+65°C, Relative Humidly<95% (non-condensing)
Protection LevelBoth terminal and module: IP 54
Application SituationIndoor, No wind
