2MTT-7 Face Recognition and Thermal Detection Access Control Vertical Tripod Turnstile Gates

  • Non-contact temperature scanning and face recognition
  • Can be used as an access control point
  • 0.2 seconds recognition
  • 35 people per minute
  • Offline recognition up to 10K faces
  • Anti-spoofing algorythm

Product Documents

Features:

  • Vertical type SS304, 47.2” x 11” x 39.4” (in)
  • Support Two-side card reader, paper ticket, fingerprint, coins. Unlock time: 0.2s
  • Working mode: one way or two way is adjustable
  • Working temperature:-35—70 humidity: 5% – 90%
  • Support Two-side card reader, paper ticket, fingerprint, coins. Unlock time: 0.2s
  • Pass width: ≤550mm
  • Pass speed: 35 person/minute
  • Input: AC100V~240V; Driving voltage: DC 24v; Open Signal input:12V relay/12V dry contract
  • Turnstile arm automatically falls down when electricity is cut down
  • Support non-contact detection, support warning people with abnormal body temperature
  • Support body temperature detection and personnel information binding, which can quickly confirm personnel
  • information and do body temperature detection
  • Built-in deep learning dedicated chip, supports local offline recognition,
  • 10,000 face capacity, face whitelist (1:N)
  • Fastest recognition time 0.2 seconds, various model merge mode are used to reduce false rate and increase pass rate
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Support anti-spoofing detection based on deep learning algorithm, effective against fraud such as photo and video
Temperature Detection Features

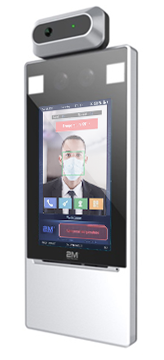

Face Recognition and Temperature Detection Access Control Technology

Control access to buildings, offices, factories, plants and any facility by verifying persons identity with a 99% face recognition accuracy. Does not allow access to anyone with a high fever or without a Mask. 2M terminal software can determine if the person passing by is wearing a mask or not.It can also read his/her temperature and determine based on configurable pre-defined temperature threshold if access should be granted or not.

Features:

  • Fast recognition time within 0.2 seconds. Various models merge mode are used to reduce false rate and increase pass rate
  • Non-contact temperature detection
  • Body temperature detection and personnel information binding
  • Configurable temperature detection threshold value
  • Temperature range between 30˚C to 45˚C
  • Accuracy between 0.1˚C to ≤0.3˚C, distance is up to 1m
  • Learning algorithm maximizes accuracy rate >99% and reduce the false rate <1%
  • The dedicated learning chip, supports local offline recognition up to a 10K face capacity, face whitelist (1:N)
  • WDR, 2MP (1080P) low illumination wide-angle camera and F1.6 large aperture lens for capturing high quality image with various complex lighting scenes
  • Anti-spoofing detection based on deep learning algorithm

MODEL NUMBER MOTOR TYPE

2MTT-3 SEMI AUTO

2MTT-3A AUTO

2MTT-3A-BLM BRUSHLESS MOTOR

Control Model

Electromagnetic

Brush Motor

Brushless Motor

Drive Type

Push By Hand

Drive By Motor

Drive By Motor

Power On

Pick Up Arm By Hand

Pick Up Arm By Motor

Pick Up Arm By MotorW

Power Off

Automatic Drop Arm

Automatic Drop Arm

Automatic Drop Arm

Max Fllow Per Day

500

1000

2000

Life Time

2-3 Years

3-5 Years

At Least 5 Years

MTBF

3 Million

5 Million

10 Million

Controller

Standard Funcation Can Set

Full Function Can Set

Full Function Can Set

Structure

Simple

Stable

Strong

Mechanical Friction

Mechanical Shock

Yes

Few

Noise

Strand

Quite

Almost Non

After Service

Electromagnetic Perishable

Less

Less

GATE FEATURE

Turnstile typeVertical tripod turnstile
  Cabinet material304 stainless steel (standard)
316 stainless steel (optional)
  Arm material304 stainless steel (standard)
316 stainless steel (optional)
FinishStainless steel satin finish
Dimension (L x W x H)16.54" x 12.99" x 39.37" (in) [420 x 330 x 1000 (mm)]
Passage width≤550 mm
DirectionSingle / bidirectional
FunctionFail-safe
Power supplyAC110–220V, 50/60Hz
Unlock time0.2s
Flow rate35 person/min
Working environmentIndoor and outdoor
LED IndicatorBoth sides and top
      Drive Type  Electromagnetic (standard)
DC brush motor (optional)
DC brushless motor (optional)

FACIAL RECOGNITION

Operation SystemLinux
Face Recognition Accu- racy Rate>99%
Face Recognition Time200ms
Face Capacity10,000
Card Capacity100,000
Storage Capacity4GB
Event Capacity30,000 (with images)
Measurement Range30°C - 45°C
Measurement Accuracy0.1°C
Measurement Deviation≤±0.3°C
Measurement Distance1m
  Authentication ModeFace Whitelist: (1:N)
Card:(1:N)
Face +Body temperature
Card TypeMifare 1 Card
User ManagementSupport user library addition, deletion, update
Record ManagementSupport local recording and real-time upload
  InterfaceLAN×1, Wiegand Input×1, Wiegand Output×1, RS485×1, Alarm Input×2, Alarm Output×1, USB2.0×1, Lock×1, Door Contact ×1, Exit Button×1
Power SupplyInput 12V±25% DC
ScreenTouch Screen, Size:7 inch, Resolution: 600×1024
CameraDual Lens, 2MP, 1080P
Supplement LightLED soft light and infrared light
Dimensions (L×W×H)134.0mm×33.0mm×305.0mm
Working EnvironmentFor access control terminal: -20°C~+65°C, Relative Humidly<95% (non-condensing)
Protection LevelBoth terminal and module: IP 54
Application SituationIndoor, No wind
