Security X-Ray Scanner & Screening Equipment — Commercial Installation DFW
Security X-Ray Scanner Types
Baggage and Parcel X-Ray Scanners
A baggage X-ray scanner uses a conveyor belt to move bags, packages, and personal items through an X-ray tunnel, displaying a real-time image of the contents on a monitor for security personnel to inspect. Commercial baggage X-ray scanners are rated by tunnel size (standard 600×400mm or large 1000×800mm for oversized bags), belt speed (0.2–0.5 m/s), image resolution (typically 0.1mm wire diameter resolution for high-security applications), and throughput (200–800 bags per hour). We supply single-view and dual-view (dual-energy) X-ray scanners — dual-energy models display organic materials in orange and inorganic/metallic items in blue, making threat detection faster and more accurate.
Walk-Through Metal Detectors
A walk-through metal detector screens individuals for metallic weapons as they pass through the detection portal. Commercial walk-through metal detectors are configured with multiple detection zones (6–33 zones depending on the model) to pinpoint the location of a detected item on the body — reducing secondary screening time. We supply and calibrate walk-through metal detectors for courthouses, schools, stadiums, houses of worship, and government facilities. Units are configured to screen for firearms, knives, and other metallic threats while ignoring common non-threatening items like belt buckles and jewelry at operator-selected sensitivity levels.
Handheld Metal Detector Wands
Handheld metal detector wands are used for secondary screening after a walk-through metal detector alarm, or as standalone screening at low-volume entry points. We supply rechargeable handheld detectors compatible with all major walk-through metal detector brands for consistent secondary screening protocols.
Integrated Screening Lanes

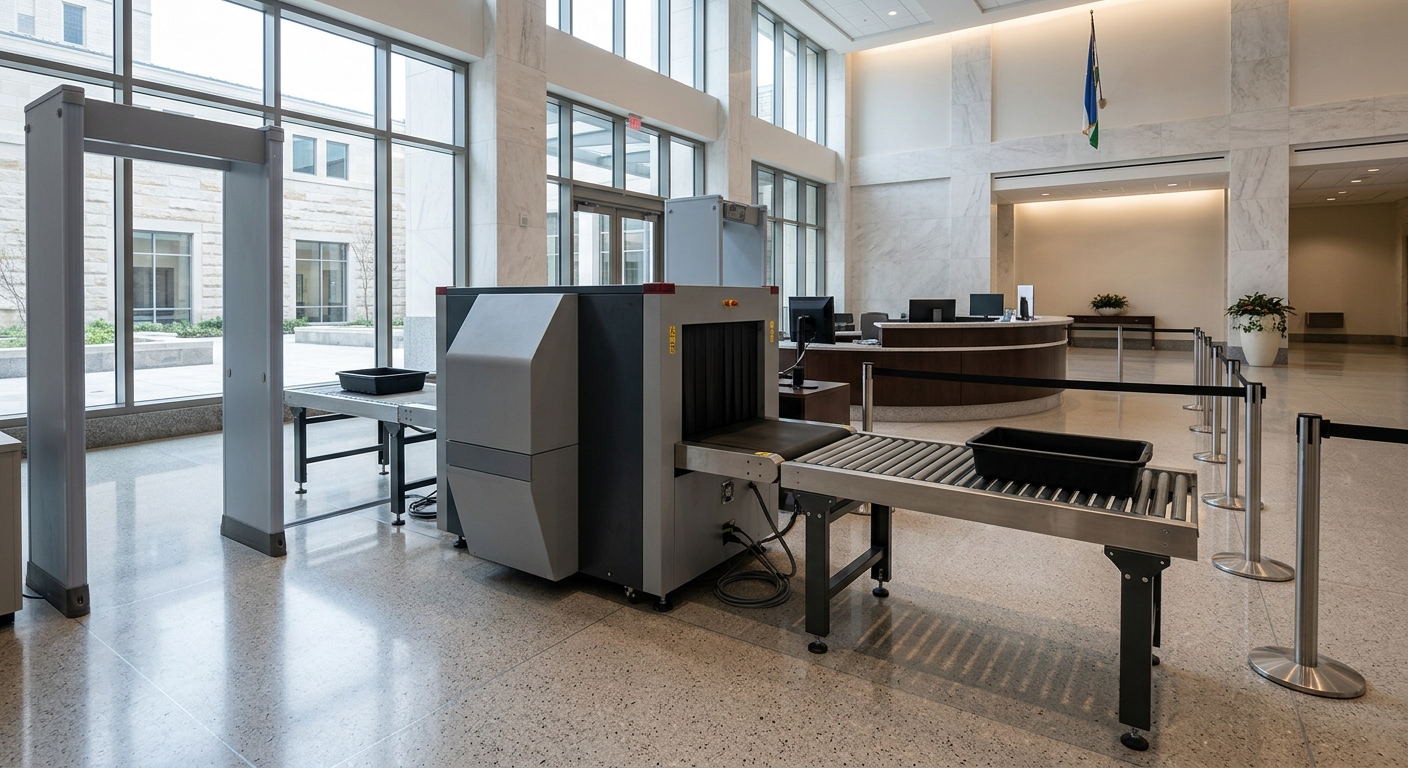

A complete security screening lane combines a baggage X-ray scanner, walk-through metal detector, divestiture table, and belt-fed return conveyor into a unified entry checkpoint — identical to the configuration used in airports and federal courthouses. We design, supply, and install integrated security screening lanes for new facility build-outs and retrofit projects. Lane configuration includes electrical rough-in, network connection for remote image review, and operator workstation placement.
Where Security X-Ray Scanners Are Used
- Courthouses and government buildings — required for public entry; single or multi-lane configurations for high-volume courts
- Stadiums and arenas — entry lane screening at gate checkpoints; high-throughput models for rapid crowd flow
- Corporate headquarters and data centers — controlled package and visitor screening at building entry
- Houses of worship — congregation screening for large services and events
- Schools and universities — baggage screening at main entry for high-security campuses
- Hospitals and medical centers — secure unit entry screening in psychiatric and high-security wards
- Hotels and convention centers — event-specific security screening for high-profile conferences and events
- Correctional facilities — visitor and package screening
Security Scanner Specifications — What to Compare
| Specification | Entry-Level | Mid-Range | High-Security |
|---|---|---|---|
| Tunnel size | 600×400mm | 650×500mm | 1000×800mm |
| Image resolution | 0.5mm wire | 0.2mm wire | 0.1mm wire |
| Energy | Single-view | Dual-energy | Dual-energy + CT |
| Throughput | 200 bags/hr | 400 bags/hr | 800 bags/hr |
| X-ray dose | ≤0.1 μSv/item | ≤0.1 μSv/item | ≤0.1 μSv/item |
| Typical use | Small office, school | Courthouse, venue | Stadium, federal building |
| Approximate cost | $15,000–$25,000 | $25,000–$45,000 | $50,000–$90,000+ |
Security Scanner Installation — DFW Service Area
We install security X-ray scanners and screening systems throughout Dallas–Fort Worth — including Dallas, Fort Worth, Arlington, Plano, Frisco, McKinney, Garland, Irving, Grand Prairie, Carrollton, Lewisville, and Denton. Our technicians handle site preparation, electrical rough-in (scanners require dedicated 120V or 208V circuits), network integration for remote monitoring, and operator training. Most single-lane scanner installations are completed in one day. Multi-lane configurations require two to three days.
Frequently Asked Questions
How much does a security X-ray scanner cost?
Commercial security X-ray scanners cost $15,000–$90,000 depending on tunnel size, image resolution, and throughput rating. A standard single-view 600×400mm scanner suitable for a small courthouse or corporate lobby runs $15,000–$25,000 installed. Dual-energy high-resolution units for courthouses and stadiums run $25,000–$50,000 installed. High-throughput dual-energy units for large venue entry lanes run $50,000–$90,000+. Walk-through metal detectors add $3,000–$12,000 per lane depending on zone count. Contact us for a site-specific quote based on your throughput requirements and facility type.
Are security X-ray scanners safe for people nearby?
Yes. Commercial baggage X-ray scanners are designed with full radiation shielding — the X-ray beam is contained inside the scanner tunnel and terminates in a shielded end wall. Radiation levels outside the scanner are below background. All X-ray scanners we supply comply with FDA 21 CFR 1020.40 radiation safety performance standards. The X-ray dose per item is typically less than 0.1 microsieverts — equivalent to a few seconds of natural background radiation. Operators are not required to wear dosimetry badges for baggage X-ray operations.
What is the difference between a single-view and dual-energy X-ray scanner?
A single-view X-ray scanner displays a single grayscale or colorized image — organic materials appear in one color and metallic items in another, but the distinction is less precise. A dual-energy X-ray scanner uses two X-ray energy levels to more accurately classify materials by atomic number — organic materials (plastics, food, paper, most explosives) display in orange, inorganic materials (metals, ceramics) display in blue. Dual-energy significantly reduces false alarms and speeds up threat identification. For courthouses, government buildings, and stadium applications, dual-energy is the standard specification.
Do you provide operator training for security X-ray systems?
Yes. We provide on-site operator training for all security X-ray scanner and walk-through metal detector installations. Training covers X-ray image interpretation, threat item identification, equipment operation, false alarm procedures, and maintenance. We also provide written operating procedures and manufacturer’s manuals at project closeout. For facilities requiring ongoing training, we can schedule annual refresher sessions or connect you with certified X-ray image interpretation training programs.
