Turnstile gates, also known as pedestrian passage gates, are a popular security solution for controlling access and keeping intruders out. They are commonly used in public spaces like train stations, stadiums, college libraries, office buildings, movie theaters, and shopping malls—anywhere that requires controlled, one-person-at-a-time entry. Not all turnstiles are the same, and choosing the right one depends on your specific needs. To adapt to modern security requirements, 2M Technology now offers a Face/Mask Recognition Thermal Turnstile, combining advanced access control with health and safety features.

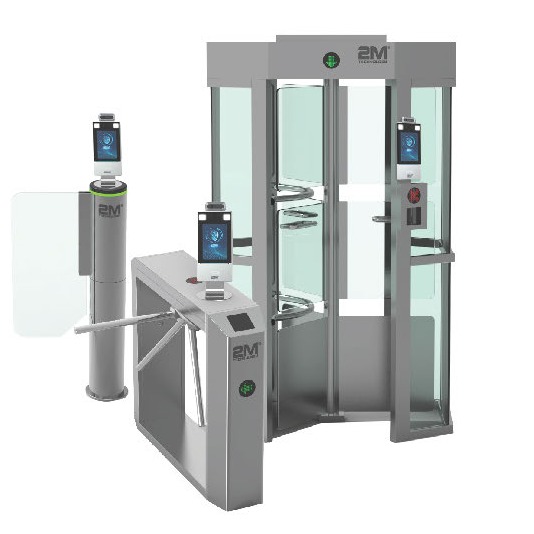

Face/Mask Recognition Heat sensor Swing Turnstiles:
2M Thermal Turnstiles offer face/mask recognition and body temperature detection for enhanced security and safety. You can integrate these turnstiles with ticketing systems and access control management systems for entry control. When the facial recognition reader detects a normal temperature and a valid entry pass (face scan, card, QR code, or badge), the barriers swing open, allowing the person to pass. If a person has a high fever, entry is denied, helping you maintain a safe environment.
Full-height turnstiles stand up to seven feet tall from the floor. They function similarly to revolving doors, but with the added benefit of body temperature scanning for better health and safety. Unlike traditional turnstiles, these are non-contact, helping to prevent the spread of infections.
The barriers are built with high-quality stainless steel or toughened glass for durability. Since the barriers are so tall, intruders cannot easily jump over them or crawl under. In other words, it’s almost impossible to bypass these turnstiles unless you have a valid credential, a normal body temperature, and a face mask.
Full-height turnstiles are designed to re-lock after each person, preventing tailgating and ensuring only one person can pass through at a time. Depending on your needs, they can be configured to allow one-day or two-way movement. Additionally, they’re resistant to damage or tampering, providing lasting security.
All these features make full-height turnstiles suitable for high-risk buildings, especially those with unmanned areas, such as:
- Bank vaults
- Government buildings
- Prisons
- Industrial plants
- Military bases
- Power plants
- Airports
- Parking lots
These turnstiles are available with single, double, or triple arm barriers. The barriers on tripod turnstiles rotate vertically, allowing only one person to enter at a time. They are usually integrated with ticketing systems and found in areas like train stations, bus terminals, airports, public parking lots, and parks.
These waist-high turnstiles feature optical sensors and swinging barriers made from tempered glass or acrylic. Glass swing gates are often used in office buildings due to their sleek, luxurious, and elegant appearance. With the widest lane width, these turnstiles are ideal for places where passengers need to carry luggage, such as train stations, hotels, or airports.
Retractable turnstiles are primarily used in high-traffic pedestrian areas due to their fast opening capabilities. They can be seen in airports, subway stations, or any transport hub where people need to move quickly.
2M Technology’s face/mask recognition thermal turnstiles provide secure access control with both mask recognition and temperature detection. As we adapt to new safety measures, it can be difficult for beginners to choose the right turnstile gate. We hope this article on the 5 most common types of turnstile gates helped you make the appropriate selection for the new normal.
Turnstile Gates Comparison Table: All 6 Main Types
| Turnstile Type | Throughput (pph) | Bidirectional | ADA Accessible | Weather Rating | Typical Application | Price Range |
|---|---|---|---|---|---|---|
| Tripod turnstile | 800–1,200 | Yes | No (separate ADA gate required) | IP54–IP65 (indoor) | Office lobbies, transit, gyms | $800–$2,500 |
| Optical turnstile (flap barrier) | 2,000–3,000 | Yes | Yes — full-width models | IP54 (indoor) | Corporate headquarters, airports | $3,000–$12,000 |
| Full-height turnstile | 400–600 | Yes | No (separate ADA gate required) | IP65–IP67 (outdoor rated) | Stadiums, prisons, border crossings | $2,500–$6,000 |
| Swing gate | 1,500–2,500 | Yes | Yes — by design | IP54–IP65 | ADA-compliant lanes, emergency egress | $2,000–$8,000 |
| Drop arm (speed gate) | 1,500–2,000 | Yes | No (separate lane required) | IP54 (indoor) | High-volume transit, event venues | $4,000–$15,000 |
| Container turnstile | 300–500 | Yes | No | IP65–IP67 (outdoor) | Construction sites, events, oil & gas | $5,000–$15,000 |
pph = persons per hour (one-direction). ADA compliance requires at least one accessible gate per lane configuration per ADA Standards §404.
Tripod Turnstiles: The Standard Entry Point
The tripod turnstile is the most widely deployed turnstile type worldwide. Three rotating arms prevent two people from entering simultaneously. When access is granted (card, biometric, QR code), one arm rotates 120° to admit one person; the arm then locks until the next credential is presented.
Tripod turnstiles are rated for indoor use in most configurations, though stainless steel models with IP65 ratings are available for covered outdoor areas. The key limitation is ADA accessibility — the rotating arm does not accommodate wheelchairs or mobility devices, so installations must include a separate ADA gate or swing barrier in the same lane cluster.
When to Choose a Tripod Turnstile
- Controlled entrance to a gym, office, or recreation facility where throughput is moderate (under 1,200 pph)
- Budget-constrained installations — tripod turnstiles have the lowest per-lane cost of any controlled access option
- Retrofit of an existing access control system — most tripod turnstiles accept Wiegand, OSDP, and dry contact inputs compatible with existing reader hardware
Optical Turnstiles (Flap Barriers): High-Speed Corporate Access
Optical turnstiles do not use a physical rotating arm. Instead, retractable flaps or panels open and close based on an infrared sensor array that detects a valid credential and ensures only one person passes per authorization event. The flap closes immediately after the person clears the sensor zone, preventing tailgating without physical impact.
Optical turnstiles deliver significantly higher throughput than tripod or full-height models — 2,000–3,000 persons per hour per lane — because the flap opening/closing cycle is faster and the pedestrian approach is more natural. Glass or acrylic flap models can be integrated into architectural lobby designs where appearance matters.
Tailgating Detection Sensors
High-security optical turnstiles include multi-beam sensor arrays that track the number of bodies in the portal zone. If a second person follows immediately behind an authorized user (tailgating), the system can trigger an alarm, activate a camera for face capture, or lock the lane for supervisor reset. This feature is critical in financial services, data centers, and government facilities.
Full-Height Turnstiles: Maximum Security Perimeter Control
Full-height turnstiles provide a physical barrier from floor to ceiling (typically 7–8 feet), preventing climbing or vaulting. The rotating cage design means that even a determined person cannot enter without a valid credential — making full-height turnstiles appropriate for perimeter control at stadiums, prisons, utilities, military facilities, and industrial sites where the cost of a breach is high.
Full-height turnstiles are rated for outdoor use (IP65–IP67) and are designed for the widest range of weather conditions. Stainless steel construction handles coastal and industrial environments. Power-fail configurations allow manual rotation for emergency egress without tools.
Full-Height vs. Tripod: When to Upgrade
Upgrade from tripod to full-height when: (1) tailgating or vaulting is a documented threat; (2) the installation is outdoor and exposed to weather or vandalism; (3) the facility requires a physical perimeter barrier as part of a layered security plan; or (4) regulatory compliance (corrections, utilities) mandates a certified physical barrier.
Container Turnstiles: Portable Access Control for Temporary Sites
Container turnstiles are engineered for deployment at construction sites, oil & gas well pads, events, and any location where a permanent building-mounted installation is not feasible. The turnstile is housed in a modified shipping container (typically 10-foot or 20-foot) with a full access control stack — card reader, controller, credential management, and optional biometric enrollment station — inside the container.
Real Deployment: Container Turnstile, Oil & Gas Well Pad, Permian Basin TX (2024)
An E&P operator in the Permian Basin needed workforce headcount control and credential verification at three well pad entry points spread across 40 miles. Permanent buildings were not viable given the temporary nature of each pad. 2M Technology deployed three container turnstile units with biometric (fingerprint) readers pre-loaded with the contractor workforce roster. Daily headcount reports were emailed to the HSE manager automatically at shift end. Deployment of each unit was under 4 hours with no site preparation required beyond a level pad and a 20A electrical connection.
Choosing the Right Turnstile Gate for Your Application
Decision Matrix: Turnstile Type by Facility
| Facility Type | Recommended Primary Gate | ADA Gate Required? | Key Consideration |
|---|---|---|---|
| Corporate office lobby | Optical (flap barrier) | Yes — full-width swing lane | Appearance, throughput, visitor management integration |
| School / university entrance | Tripod or swing gate | Yes | Cost, student volume, visitor badge integration |
| Stadium / arena | Full-height or optical with glass panels | Yes — dedicated ADA lanes | High burst throughput, ticket scanning, anti-vault |
| Manufacturing plant gate | Full-height (outdoor) | Yes | Weather, anti-tailgate, shift change volumes |
| Construction site (temporary) | Container turnstile | ADA compliant models available | No permanent power; relocatable; biometric enrollment |
| Oil & gas / utilities perimeter | Container or full-height | Case by case | ATEX rating if in classified area; weatherproof |
| Transit hub / subway | Drop arm speed gate or optical | Yes — wide-aisle lanes | Throughput first; integration with fare media systems |
| Gym / recreation facility | Tripod | Yes — emergency swing gate | Budget; membership card scan; simple credential |
Access Control Integration: What Credential Works With Each Turnstile?
All modern turnstile gates accept external reader inputs via Wiegand (legacy) or OSDP (current standard). The credential type is determined by the reader and access control software, not the turnstile mechanism itself. Common credential types:
- Proximity card (125 kHz HID): Most common, affordable, but cloneable. Being phased out in high-security environments.
- Smart card (13.56 MHz MIFARE or iCLASS): More secure; support encrypted sector reads. Use for applications requiring data on the card (credentials + biometric template).
- Mobile credential (Bluetooth LE or NFC): Fastest growing. Phone replaces card. Requires mobile credential management platform (Brivo, HID Origo, Verkada).
- Biometric (fingerprint or face recognition): Eliminates credential sharing. Required where credential assignment is not verifiable (construction, temporary workforce). Face recognition turnstile models integrate the camera and reader in a single unit.
- QR code / barcode: Appropriate for visitor management and event ticketing. Scanner reads dynamically generated codes.
Turnstile Maintenance and Lifecycle
Mechanical turnstile components (bearings, arms, actuators) typically carry a manufacturer warranty of 2–5 years and a rated cycle life of 2–5 million cycles. At 500 cycles per day (moderate office), that is 10,000+ days — over 27 years of operational life. Electronic components (readers, controllers, power supplies) have a 5–10 year practical life before firmware support ends.
Key maintenance tasks:
- Lubricate arm pivot bearings annually (or per manufacturer schedule)
- Clean sensor lenses on optical turnstiles monthly in dusty environments
- Test emergency egress (power-fail free-rotation) quarterly
- Replace reader firmware annually to maintain compatibility with credential management software
Types of Turnstile Gates: Quick Reference Guide
Choosing the right turnstile comes down to three factors: throughput, security level, and aesthetics. Here is how the most common models compare for DFW commercial properties.
- Waist-high (tripod / barrier-arm) — The most widely deployed style in transit and general commercial access. Throughput: 20–25 persons/minute.
- Full-height — Maximum-security units for perimeter control that cannot be vaulted. Common at data centers, utilities, and correctional facilities.
- Optical speed lanes — Sleek lobby barriers that detect tailgating via infrared beams. The fastest option for high-traffic corridors.
- Drop-arm — Evacuation-friendly models whose arms drop flat for egress, ideal where fire code requires clear exit paths.
When specifying any turnstile, confirm the manufacturer holds UL 294 certification for access-control compatibility, and pair every installation with an ADA-accessible lane. 2M Technology configures these systems to integrate with HID, Lenel, Genetec, and most major access-control platforms.
How Long Do Turnstile Gates Last?
Commercial-grade turnstile gates are rated for 3–5 million cycles. At a busy corporate campus processing 500 badge reads per day, that is 16–27 years of service life. 2M Technology warranties all units for 2 years parts and labor, with optional coverage up to 5 years. For pricing on a Dallas–Fort Worth installation, call (214) 988-4302.
For the standards governing pedestrian access barriers, see the ASSA ABLOY pedestrian access portfolio and the Security Industry Association (SIA).
Frequently Asked Questions: Turnstile Gates
What is the standard width of a turnstile lane?
Standard turnstile lanes are 19–22 inches wide (suitable for most adults without luggage). ADA-compliant lanes must be a minimum of 36 inches clear width per ADA Standards §404, with 32-inch clear at the gate. Wider lanes (44 inches) are recommended at facilities where staff carry tools, equipment, or luggage regularly. Optical turnstiles offer the widest range of lane widths since the flap barrier can span wider openings than a mechanical arm.
Can turnstiles be installed outdoors?
Yes, but only specific models are rated for outdoor use. Full-height turnstiles with stainless steel enclosures and IP65+ ratings are designed for outdoor perimeters. Tripod turnstiles in stainless steel with IP65 enclosures can be used in covered outdoor areas (under a canopy). Standard indoor optical turnstiles are not suitable for outdoor installation — the sensor arrays and electronics require climate control. Container turnstiles are purpose-built for outdoor deployment at any site.
How long does turnstile installation take?
A single tripod turnstile takes 2–4 hours to install once conduit and power are in place. A six-lane optical turnstile installation in a corporate lobby typically takes 2–3 days including access control integration and testing. Container turnstile deployment requires 3–4 hours for a self-contained unit on a prepared pad. Allow 1–2 weeks for custom fabrication of architectural turnstile cabinets or specialty finishes.
Do turnstiles work during a power failure?
Yes, properly specified turnstiles. Full-height turnstiles have a power-fail free-rotation mode that allows unimpeded egress without tools. Optical turnstile flaps automatically open on power loss (fail-safe mode) or lock closed (fail-secure mode) depending on the application requirement. Battery backup or UPS is recommended for any installation where access control must remain operational during power outages — standard in commercial and institutional applications.
What is the difference between a turnstile and a speed gate?
The terms are often used interchangeably, but a speed gate (or drop-arm barrier) uses a horizontal arm that drops from above rather than rotating from a central pivot. Speed gates offer very high throughput (2,000+ pph) and a low barrier height, making them suitable for transit hubs and busy pedestrian flows where throughput is the priority over anti-vault security. Traditional turnstiles (tripod, full-height) provide higher physical security at lower throughput.
Get Turnstile Gate Installation in Dallas-Fort Worth
2M Technology supplies and installs all types of turnstile gates for commercial, industrial, and temporary applications across DFW and Texas. We hold Texas Security License B15309. Request a free site assessment or call (214) 988-4302.
