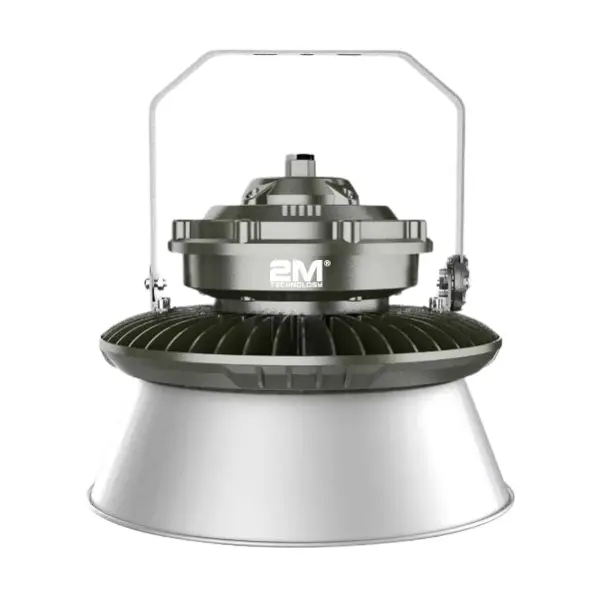

2M-EXL8235-240 Explosion-Proof Long High Bay Light (240W)

SKU: 2M-EXL8235-240
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 89.4°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power options: 150W, 200W

Features

  • Input Voltage: AC100-270v
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W
  • Anti Corrosion: WF2
  • Weight: 4.6 KG / 10.1 LBS
  • Size: 356 X 232 MM / 14 X 9.1 IN
  • Beam Angle: 4°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 38.5 × 44.5 × 31.5 CM / 15.1 X 17.5 X 12.4 IN
  • Gross Weight: 5.6 KG / 12.3 LBS
MODELS AVAILABLE
Model Wattage
2M-EXL8235-150 150W
2M-EXL8235-200 200W
2M-EXL8235-240 240W

Specifications

Country of Origin

China

Power

240W

Ingress Protection

IP66

Light Type

LED

Product Documents

  • Input Voltage: AC100-270v
  • Led Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 LM/W
  • Anti Corrosion: WF2
  • Weight: 4.6 KG / 10.1 LBS
  • Size: 356 X 232 MM / 14 X 9.1 IN
  • Beam Angle: 4°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 38.5 × 44.5 × 31.5 CM / 15.1 X 17.5 X 12.4 IN
  • Gross Weight: 5.6 KG / 12.3 LBS
MODELS AVAILABLE
Model Wattage
2M-EXL8235-150 150W
2M-EXL8235-200 200W
2M-EXL8235-240 240W

Specifications

Country of Origin

China

Power

240W

Ingress Protection

IP66

Light Type

LED

Product Documents
