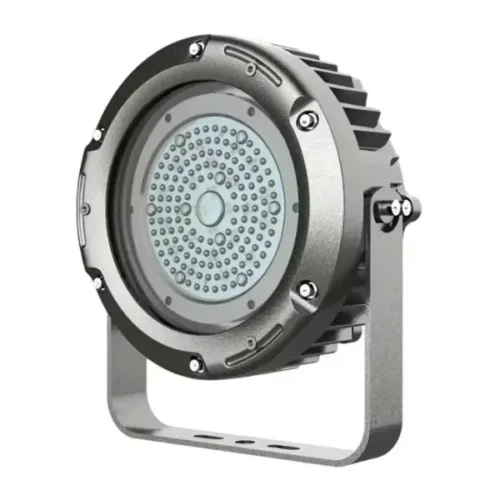

2M-EXT8231-60 Explosion-Proof Spot Light with Lens (60W)

SKU: 2M-EXT8231-60
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 14°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power options: 50W, 80W, 90W

Features

  • Input Voltage: AC 100-270 V
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120LM/W
  • Anti Corrosion: WF2
  • Weight: 3.8 KG / 8.3 LBS
  • Size: 230 X 166 MM / 9 X 6.5 IN
  • Beam Angle: 14°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 26.6 × 26.7 × 28.6 CM / 10.4 X 10.5 X 11.2 IN
  • Gross Weight: 4.3 KG / 9.4 LBS
MODELS AVAILABLE
Model Wattage
2M-EXT8231-50 50W
2M-EXT8231-60 60W
2M-EXT8231-80 80W
2M-EXT8231-90 90W

Specifications

Country of Origin

China

Power

60W

Ingress Protection

IP66

Light Type

LED

Product Documents

  • Input Voltage: AC 100-270 V
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120LM/W
  • Anti Corrosion: WF2
  • Weight: 3.8 KG / 8.3 LBS
  • Size: 230 X 166 MM / 9 X 6.5 IN
  • Beam Angle: 14°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 26.6 × 26.7 × 28.6 CM / 10.4 X 10.5 X 11.2 IN
  • Gross Weight: 4.3 KG / 9.4 LBS
MODELS AVAILABLE
Model Wattage
2M-EXT8231-50 50W
2M-EXT8231-60 60W
2M-EXT8231-80 80W
2M-EXT8231-90 90W

Specifications

Country of Origin

China

Power

60W

Ingress Protection

IP66

Light Type

LED

Product Documents
