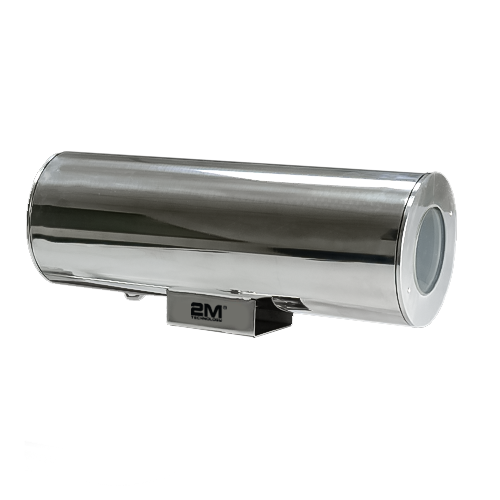

2M Technology 2MEXH-4016 304 Stainless Steel Explosion Proof Integrated Camera

  • IP-68, NEMA-4X Enclosure rating
  • Operating temperature range from -40°C to 60°C (-40°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304 or 316L stainless steel construction available
  • Optional: Wiper and/or sunshield

Product Documents

The 2MEXH-4016 is an explosive proof surveillance IP camera with an IP68 rating and a NEMA-4X enclosure rating. This camera can be used in a hazardous, explosive environment. The camera system will prevent an explosion, rather than survive an incoming explosion. This camera is designed to prevent ignition of surrounding gases or dust. The total dimensions are 445mm×195mm×194mm ( 17.5 in × 7.68 in × 7.64 in) and offers pan and tilt.

Features:

  • IP68, NEMA-4X Enclosure rating
  • Operating temperature range from -40°C to 60°C (-40°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Including Wiper and sun-shield

Available models :



Model                             Material
2MEXH-4016AISI 304 stainless steel
2MEXH-4016-LAISI 316L stainless steel



Matching Accessories:

  • 2MEXB-2915: Explosion Proof Wall Housing Bracket (304 )
  • 2MEXPTB-3623: Heavy Explosion Proof Pan and Tilt Unit (304 )
  • 2MEXB-2915-L: Explosion Proof Wall Housing Bracket (316L )
  • 2MEXPTB-3623-L: Heavy Explosion Proof Pan and Tilt Unit (316L )
Weight18 lbs
Stainless Steel Types

Specifications
Manufacturers StandardEn60079-0:2009, En 60079-1:2007, En60079-31:2009 GB3836.1–2000, GB383.2–2000, Gb12476.1-2000
Configuration ModeFront and rear caps with explosin-proof thread
Explosion-proof MarkII2G Ex d IIC T6, Ta: -40°C ≤Ta≤+60° ; II2D Ex IIIC T80°C Db.
IP RatingIP-68
Operating Temperature-40°C to 60°C (-40°F to 140°F)
Cable Entries2XG1/2’’ Explosion-proof cable entries, Dia. of inner hole Ø
Outside Dimension ( W x H x L )( 450 x 160 x 200 mm ) (15.94 x 6.29 x 7.87 In )
WiperOutside (Optional)
Weight8 Kg ( 18 lb )
MaterialAISI 304 stainless steel 2MEXH-4016 or AISI 316L stainless steel 2MEXH-4016-L
Suitable installation dimensionLess than Ø 10.5 cm x 33 cm
Voltage (Optional )( AC110V to AC 240V, 50/60 Hz  ( AC24V, 50/60 Hz )
Current (Optional )≤500mA
