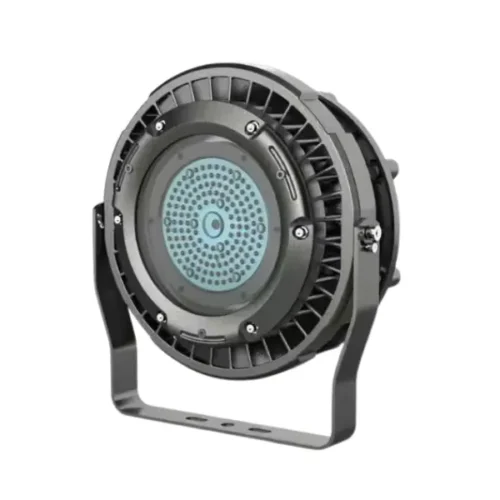

2M-EXT8232-90 Explosion-Proof Spot Light with Lens (90W)

SKU: 2M-EXT8232-90
  • Features:
    • Input voltage: AC100-270v
    • Led Light Source: Cree
    • Power Factor: 0.95
    • Color Rendering Index (CRI:Ra>): 75
    • IP Rating: IP66
    • Lumen flux: 120lm/w
    • Anti corrosion: WF2
    • Beam angle: 14°
    • Explosion-proof Grade: ExdIICT6
    • Also available in power options: 50W, 60W, 80W

Features

  • Input Voltage: AC100-270v
  • LED Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 lm/w
  • Anti Corrosion: WF2
  • Weight: 6.8 kg / 14.9 lbs
  • Size: 300 x 236 mm / 11.8″ x 9.3″ in
  • Beam Angle: 14°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 32 x 32 x 34.9 cm / 12.5″ x 12.5″ x 13.7″ in
  • Gross weight: 7.6kg
MODELS AVAILABLE
Model Wattage
2M-EXT8232-50 50W
2M-EXT8232-60 60W
2M-EXT8232-80 80W
2M-EXT8232-90 90W
Country of Origin

China

Power

90W

Ingress Protection

IP66

Light Type

LED

Product Documents

  • Input Voltage: AC100-270v
  • LED Source: Cree
  • PF>0.95 CRI: Ra>75
  • Protection Grade: IP66
  • Lumen Flux: 120 lm/w
  • Anti Corrosion: WF2
  • Weight: 6.8 kg / 14.9 lbs
  • Size: 300 x 236 mm / 11.8″ x 9.3″ in
  • Beam Angle: 14°
  • Ex-proof Grade: ExdIICT6
  • Carton Size: 32 x 32 x 34.9 cm / 12.5″ x 12.5″ x 13.7″ in
  • Gross weight: 7.6kg
MODELS AVAILABLE
Model Wattage
2M-EXT8232-50 50W
2M-EXT8232-60 60W
2M-EXT8232-80 80W
2M-EXT8232-90 90W

Specifications

Country of Origin

China

Power

90W

Ingress Protection

IP66

Light Type

LED

Product Documents
