CCTV Technology, Cloud IP, Essential Products, NDAA Compliant, NDAA Compliant Network Cameras, Network Bullet Cameras, Network IP Cameras, Surveillance

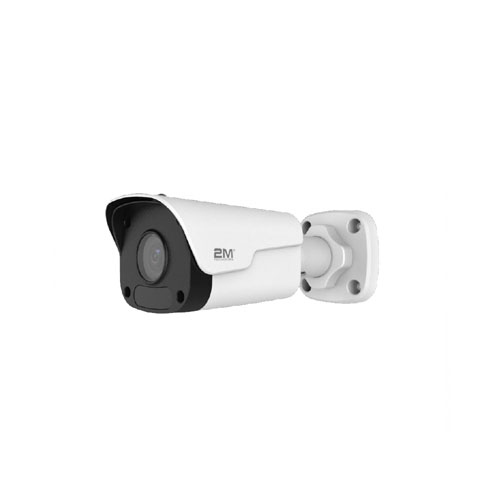

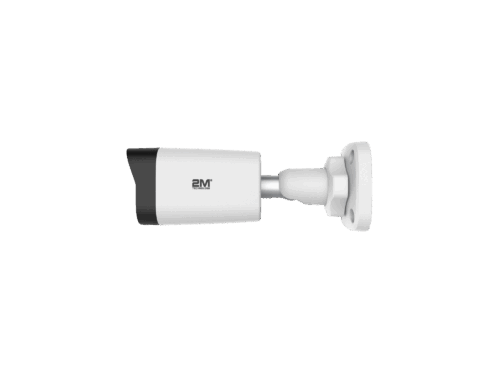

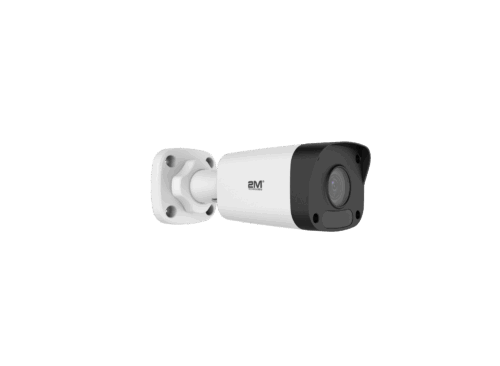

2M Technology 2MBIP-4MIR30-E 4MP Mini Fixed Bullet Network Camera
REQUEST QUOTE
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Product Documents
The 2M Technology 2MBIP-4MIR30-E outdoor IP bullet camera offers 2D/3D DNR (Digital Noise Reduction). This bullet camera offers day/night functionality and an IR anti-reflection window to increase infrared transmittance. The Smart IR system allows up to 30m (98ft) of infrared distance.
The IP camera offers Ultra 265, H.265, H.264, MJPEG compression, as well as triple streams. The 2M outdoor IP bullet cam also offers ONVIF Network conformance. The unit can support a wide temperature range (-30°C to 60°C / -22°F to 140°F). Further, it is IP67 certified and handles a voltage range of ±25%.
| Weight | 0.81 lbs |
|---|---|
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Series | Essential Series |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| CAMERA | |||||
| Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS | ||||
| Lens | 4.0mm@F2.0 | ||||
|
DORI Distance |
Lens | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 4.0mm | 60 | 24 | 12 | 6 | |
| 6.0mm | 90 | 36 | 18 | 9 | |
| Angle of View (H) | 79.7° | 50.5° | |||
| Angle of View (V) | 51.8° | 35.9° | |||
| Angle of View (O) | 98.0° | 62.1° | |||
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum Illumination | Color: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR on |
||||
| Digital noise reduction | 2D/3D DNR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| WDR | DWDR | ||||
| VIDEO | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:5MP (2592*1944): Max.15fps; Sub Stream: 720P (1280×720): Max.20fps; | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| NETWORK | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||
| Compatible Integration | ONVIF (Profile S), API | ||||
| INTERFACE | |||||
| Network | 10/100M Base-TX Ethernet | ||||
| GENERAL | |
| Power | 12 V DC±25%, PoE (IEEE802.3 af) |
| Power Consumption | Power consumption: Max 4W |
| Dimensions (L×W×H) | 167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”) |
| Weight | 0.37kg (0.81lb) |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F) |
| Humidity | Humidity :10%~90% RH (non-condensing) |
| Ingress Protection | IP67 |
