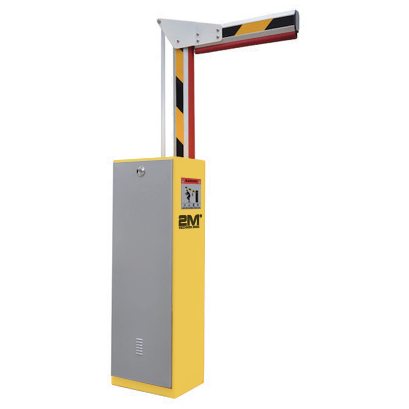

2MAGB-HCN-E High Speed Limited Ceiling Intelligent Barrier Gate (AC Turbine Vortex Pole Motor)

• High-speed of open / close: 3 second
• 90 degree Crank arm with rubber bar, Max. length 4.5m/14.8′ ft
• Inclusive of arm ×1,push button ×1,remoter ×2, boom bracket×1
• Crank arm can be changed into fence arm very easily

The pricing is subject to change with customization. Allow 4-6 weeks for delivery.

Product Documents

• High-speed of open / close: 3 second
• 90 degree Crank arm with rubber bar,Max.length 4.5m
• Inclusive of arm ×1,push button ×1,remoter ×2, boom bracket×1
• Can`t be equipped with anti-collision
• Exclusive of LED arrow display on housing : need to buy additionally
• Housing color optional: yellow silver(default)/red silver/dark silver
• Arm direction is exchangeable but the motor & reducer will need to be
changed to accommodate the direction.
• Crank arm can be changed into fence arm very easily

Dimensions55.1 × 11.8 × 39.4 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

GATE FEATURE
Power SupplyAC 85~264V,50~60HZ, 480W
Motor240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (optional)Distance﹥20m
Spring1~2 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop detector inputpulse width 100﹥ ms
IR detector inputpulse width 100﹥ ms
Up & Down inputpulse width 100﹥ ms
Traffic light outputAC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. outputRelay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS 485 interface9600bps, ASCII decimal encoded
Arm86×44mm Aluminum alloy octagonal arm with rubber bar, Max.6m Round arm with foam, Max. 3.5m
Housing1.8mm cold-roller sheet, IP 54
Housing size (H*W*D)355×267×1035mm / 13.9" x 10.5" x 40.7"
Package size405×346×1070mm / 15.9" x 13.6" x 42.1"
G.Waround 46 KG / 101lb
Operating temperature-30oC , 55oC / -22oF , 131oF
Humidity10%-95%
