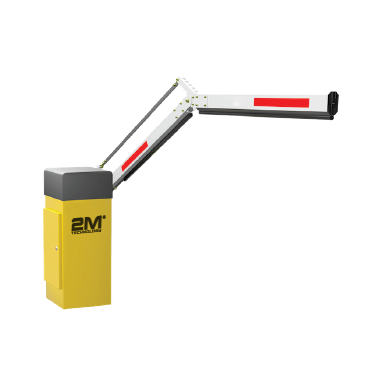

2MAGB-HCN Limited Ceiling Intelligent Barrier Gate (DC24V Brusheless Servo Torque Motor)

• Normal-speed of open / close: 1 second
• Max. 11.5′ ft octagonal crank arm with rubber (or Max. 11.5′ round arm)
• Inclusive of arm x1, remote x2, air switch x1, push button x1 which opens/closes barrier
• Arm direction can be changed to left or right swing without changing parts

Product Documents

Downloads

  • Normal-speed of open/close: 1 second
  • Max. 11.5′ ft octagonal crank arm with rubber (or Max. 11.5′ round arm)
  • Inclusive of arm x1, remote x2, air switch x1, push button x1 which opens/closes barrier
  • Boom bracket (sold separately)
  • Housing color optional: yellow (default)/orange/white/red/blue
  • Arm direction can be changed to left or right swing without changing parts
Dimensions37.4 × 12.5 × 12.9 in
Ingress Protection

IP54

GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 50W
Motor50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance ﹥ 65.6' ft
Spring1~3 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR Detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop Detector Syn. OutputRelay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 interface9600bps, ASCII decimal encoded
Arm1.8" x 3.9" aluminum alloy octagonal arm with rubber bar, Max. 19.7' ft Round arm with foam, Max. 11.5' ft
Housing2mm cold-roller sheet, IP54
Housing Size (HxWxD)950 x 320 x 329 (mm) / 37.4" x 12.5" x 12.9" (in)
Package Size1100 x 480 x 430 (mm) / 43.3" x 18.8" x 16.9" (in)
Gross Weight~ 46kg / 101lb
Operating Temperature-30°C to 55°C / -22°F to 131°F
Humidity10%-95%
