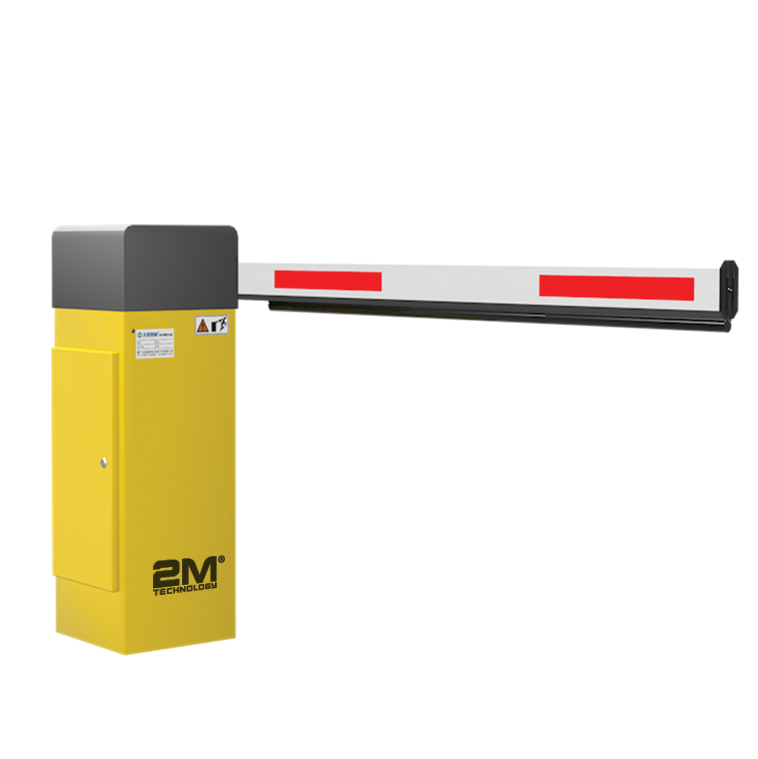

2MAGB-NSN Intelligent Barrier Gate (Brushless Servo Torque Motor)

  • Normal-speed to open/close: 2~6 sec. adjustable
  • Max 6m/19.7′ ft octagonal straight arm with rubber bar
  • Arm direction can be changed to left or right swing without changing parts

Product Documents

2MAGB-NSN Intelligent Barrier Gate  with DC24V Brushless Servo Torque Motor.

Features:

  • Normal-speed to open/close: 2~6 sec. adjustable
  • Octagonal straight arm with rubber bar, length following (or Max. 6m [19.7′ ft] round arm):
    • 2 sec./Max. 13.1′ ft arm
    • 3 sec. /Max. 13.1′ ft arm with swing-off
    • 3 sec. /Max. 16.4′ ft arm w/o swing-off
    • 6 sec. /Max. 19.7′ ft arm w/o swing-off
  • Includes of arm x1, swing-off, remote x2, air switch x1, push button x1 to open/close barrier
  • Boom bracket, swing-off and LED Bar are sold separately
  • Housing color optional: yellow(default)/orange/white/red/blue
  • Arm direction can be changed to left or right swing without changing parts
  • Smartphone control barrier via APP (Optional; SDK can be provided)
  • Monitor barrier via PC with TCP/IP interface (Optional)
  • Maintenance-free DC brushless servo motor with 100% duty cycle and 10 million MTBF
  • PWM variable frequency servo controller ensures smooth movement of boom
  • Automatically detect and report error
  • Swing-off for safety of both boom and vehicle (Optional)
  • Alarm when boom swing-off (Optional)
  • Safety of Vehicle: Boom Auto-reversing on Obstacle
  • Safety of Vehicle: Anti-hit by Loop Detector or Photocell (Optional)
  • Automatically close after the given time (programmable)
  • Arm automatically open in case of power off (Optional)
Weight101 lbs
Dimensions37.4 × 12.5 × 12.9 in
Ingress Protection

IP54

GATE FEATURE
Power SupplyAC 85~264V, 50~60HZ, 50W
Motor50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional)Distance ﹥ 65.6′ ft
Spring1~3 pcs. spring balance
Controller80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Inputpulse width 100﹥ ms
IR Detector Inputpulse width 100﹥ ms
Up & Down Inputpulse width 100﹥ ms
Traffic Light OutputAC220V output power (passive), current Max. 3A/AC220V
Loop Detector Syn. OutputRelay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface9600bps, ASCII decimal encoded
Arm1.8″ x 3.9″ in. aluminum alloy octagonal arm with rubber bar, Max. 19.7′ ft Round arm with foam, Max. 11.5′ ft
Housing6.6′ ftm cold-roller sheet, IP54
Housing Size (HxWxD)950×320×329mm / 37.4″ x 12.5″ x 12.9″ (in.)
Package Size1100×480×430mm / 37.4″ x 12.5″ x 12.9″ (in.)
Gross Weight~ 46kg / 101lb
Operating Temperature-30°C to 55°C / -22°F to 131°F
Humidity10%-95%
