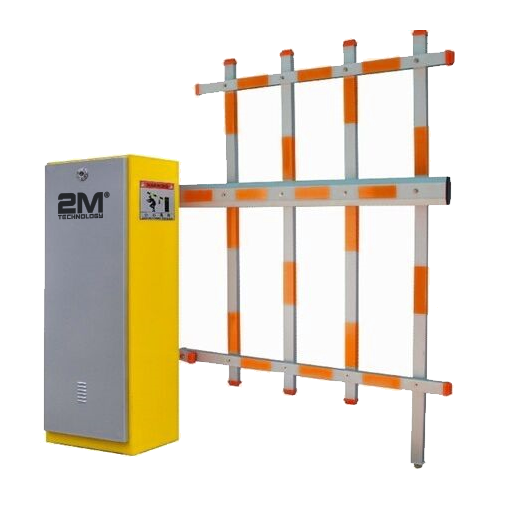

2MAGB-NFN2-E High Fence Barrier Gate (AC Turbine Vortex Pole Motor)

REQUEST QUOTE
  • Normal-speed of open / close: 6
  • High fence arm, Max. length 13.1ft for 6
  • Arm direction is interchangeable but motor and reducer will need to be changed

Product Documents

  • Normal-speed of open / close: 6
  • Double fence arm, Max. length 13.1ft for 6
  • Inclusive of arm ×1, push button ×1, remote ×2
  • Can not be equipped with anti-collision, boom bracket not required
  • LED arrow display on housing is sold separately
  • Housing color optional: yellow silver (default)/red silver/dark silver
  • Arm direction is interchangeable but motor and reducer will need to be changed
  • Fence arm can be changed into crank arm very easily

Want to see this product in action? Schedule a live demo now!
REQUEST DEMO

Dimensions 55.1 × 11.8 × 39.4 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

GATE FEATURE
Power Supply AC 85~264V, 50~60HZ, 480W
Motor 240W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle
Remote (Optional) Distance﹥65ft
Spring 1~2 pcs. spring balance
Controller 80C51 MCU, 20MHz, PWM variable frequency servo controller board
Loop Detector Input pulse width 100﹥ ms
IR detector Input pulse width 100﹥ ms
Up & Down Input pulse width 100﹥ ms
Traffic Light Output AC220V output power (passive), current Max. 3A/AC220V
Loop detector Syn. output Relay NO output, Current Max. 0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface 9600bps, ASCII decimal encoded
Arm 3.38"×1.72" Aluminum alloy octagonal arm with rubber bar, Max. 19.6ft Round arm with foam, Max. 11.4ft
Housing 1.8mm cold-roller sheet, IP54
Housing Size (HxWxD) 355×267×1035 (mm) / 13.9" x 10.5" x 40.7" (in)
Package Size 405×346×1070 (mm) / 15.9" x 13.6" x 42.1" (in)
Gross Weigth around 46 KG / 101lb
Operating temperature -30C° to 55C° / -22F° to 131F°
Humidity 10%-95%
