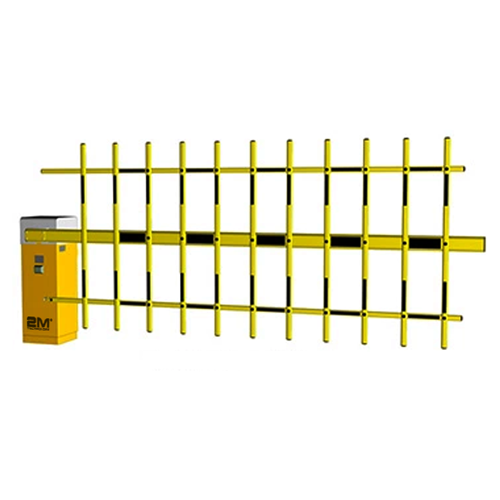

2MAGB-NFN2-A Double Fence Intelligent Barrier Gate (AC Torque Motor)

REQUEST QUOTE
  • Normal-speed of open / close (4 sec. only)
  • 2-Fence arm, Max. length 4m
  • Arm direction can be changed to swing left or right without changing any parts

Product Documents

The 2MAGB-NFN2-A Double Fence Intelligent Barrier Gate with AC Torque Motor features:

  • Normal-speed of open / close (4 sec. only)
  • 2-Fence arm, Max. length 4m
  • Includes: arm x1, push button x1 to open/close barrier
  • Remote and boom bracket are sold separately
  • This unit cannot be equipped with LED light bar and swing-off
  • Custom color optional: yellow(default)/orange/white/red/blue
  • Arm direction can be changed to swing left or right without changing any parts





Want to see this product in action? Schedule a live demo now!
REQUEST DEMO

Dimensions 55.1 × 11.8 × 39.4 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

GATE FEATURE
Power AC 220±10%,50/60HZ,
Motor 70W AC torque motor 5 million MTBF, 100% duty cycle
Remote (Optional) Distance﹥20m
Spring 1~4 pcs. spring balance
Controller ARM 32 Cortex™-M3 CPU variable frequency board
Loop Detector Input pulse width 100﹥ ms
IR Detector Input pulse width 100﹥ ms
Up & Down Input pulse width 100﹥ ms
Traffic Light Output AC220V output power (passive), current Max. 3A/AC220V
Loop Detector Syn. Output Relay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V
RS485 Interface 9600bps, ASCII decimal encoded
Arm 45 x 100 mm (1.7" x 3.9" in) Aluminum alloy octagonal, Max. 6m (19.7 ft)
Housing 2mm cold-roller sheet, IP54
Housing Size (HxWxD) 950 x 320 x 329 (mm) / 37.4" x 12.6" x 12.9" (in.)
Package Size 1100 x 480 x 430 (mm) / 43.3" x 18.9" x 16.9" (in.)
Gross Weight around 55 kg / 121.3 lbs
Operating Temperature -30°C to 55°C / 86°F to 131°F
Humidity 10%-95%
