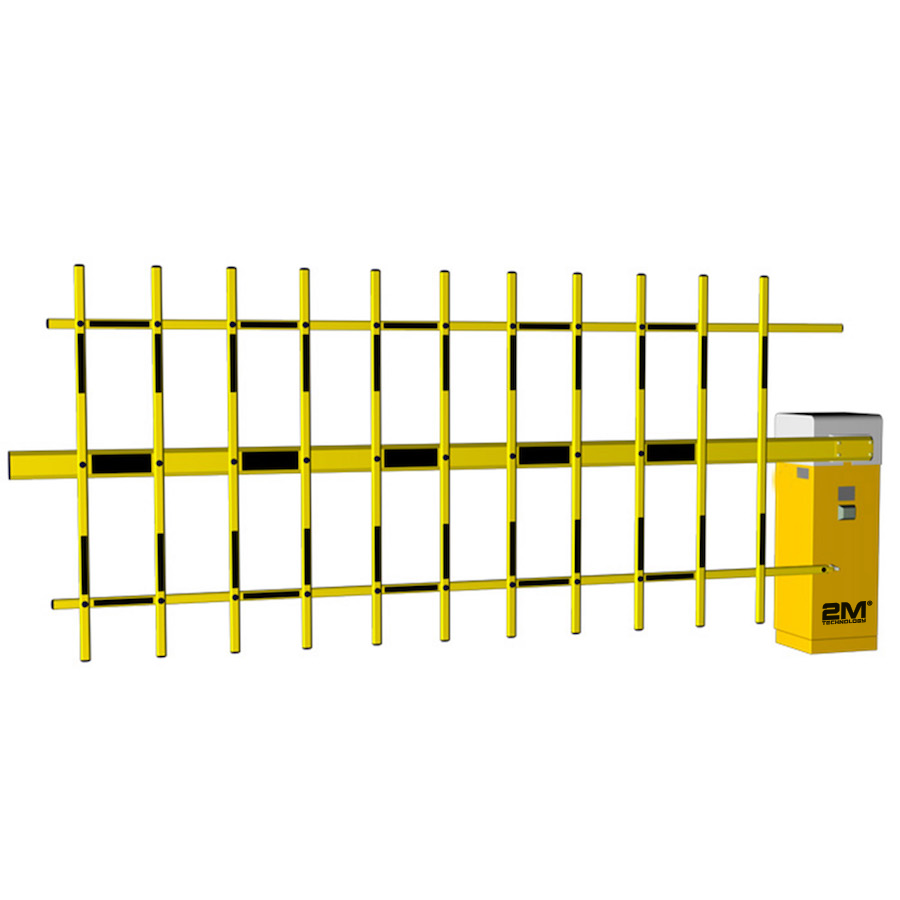

2MAGB-NFN2 Double Fence Intelligent Barrier Gate (DC Brushless Servo Torque Motor)
REQUEST QUOTE (for best price)
- Normal-speed of open/close: 4~6 seconds
- Max.13.1′ ft 2-Fence arm
- Inclusive of arm x1 , remoter x2, air switch×1, push button×1 which opens/closes barrier
- Exclusive of boom bracket (Sold Separately)
- Can’t be equipped with LED light bar and swing-off
- Housing color optional: yellow (default)/orange/white/red/blue
- Arm direction can be changed to swing left or right without changing any parts
Product Documents
Downloads
- Normal-speed of open/close: 4~6 seconds
- Max.13.1′ ft 2-Fence arm
- Inclusive of arm x1 , remoter x2, air switch×1, push button×1
which opens/closes barrier - Exclusive of boom bracket (Sold Separately)
- Can’t be equipped with LED light bar and swing-off
- Housing color optional: yellow (default)/orange/white/red/blue
- Arm direction can be changed to swing left or right without changing any parts
Want to see this product in action? Schedule a live demo now!
REQUEST QUOTE (for best price)
| Dimensions | 55.1 × 11.8 × 39.4 in |
|---|---|
| Ingress Protection | IP54 |
| Country of Origin | China |
| GATE FEATURE | |
| Power Supply | AC 85~264V, 50~60HZ, 50W |
| Motor | 50W DC-24V brushless servo torque motor 10 million MTBF, 100% duty cycle |
| Remote (Optional) | Distance ﹥ 65.6' ft |
| Spring | 1~3 pcs. spring balance |
| Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
| Loop Detector Input | pulse width 100﹥ ms |
| IR Detector Input | pulse width 100﹥ ms |
| Up & Down Input | pulse width 100﹥ ms |
| Traffic Light Output | AC220V output power (passive), current Max. 3A/AC220V |
| Loop Detector Syn. Output | Relay NO output,; Current Max.0.5A/AC220V, or Max. 1A/DC12V |
| RS485 interface | 9600bps, ASCII decimal encoded |
| Fence | 13.1" ft Fence |
| Housing | 2mm cold-roller sheet, IP54 |
| Housing Size (HxWxD) | 950 x 320 x 329 (mm) / 37.4" x 12.5" x 12.9" (in) |
| Package Size | 1100 x 480 x 430 (mm) / 43.3" x 18.8" x 16.9" (in) |
| Gross Weight | ~ 46kg / 101lb |
| Operating Temperature | -30°C to 55°C / -22°F to 131°F |
| Humidity | 10%-95% |
