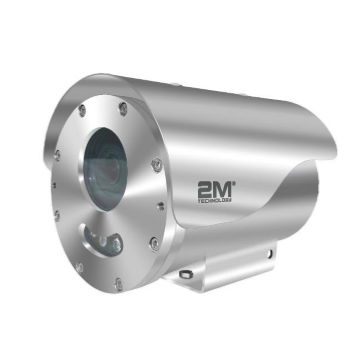

2MEBS04-T5MZ 5MP Analog 4-in-1 Motorized Bullet Camera with Stainless Steel Explosion-proof Housing and IR – 304 Stainless Steel

REQUEST QUOTE
  • Stainless steel 304
  • Protection enclosure: IP68
  • Exd II CT6 Gb / Ex tD A21 IP68 T80°C
  • Suitable for gas Zone 1, Zone 2, dust zone 21, 22



Product Documents

Features:

  • Stainless steel 304
  • Protection enclosure: IP68
  • Exd II CT6 Gb / Ex tD A21 IP68 T80°C
  • Suitable for gas Zone 1, Zone 2, dust zone 21, 22
  • Input power: AC85V ~ AC265V or DC24Vor AC24V
  • Lights for night vision: 0-20m, or 20-60m or 60-100m (choose two)
  • 4-in-1 bullet camera
  • 1/2.8″ Sony 335 CMOS 0M+NVP2477
  • 30pcs SMD LEDs
  • 40m IR Range
  • Standard match 2.8-12mm motorized lens
  • With 3DNR
  • Default TVI output
Weight16.5 lbs
Dimensions12.4 × 5.7 × 6.6 in
Stainless Steel Types

Ingress Protection

IP67

IR Distance

30m (98ft)

HOUSING
Atmospheric Pressure80KPa ~ 110Kpa
Ambient Temperature-20°C ~ 60°C [-4°F ~ 140°F]
Relative Humidity≤ 95% (25°C) (77°F)
Ex-Proof MarkExd II CT6 Gb/ Ex tD A21 IP68 T80°C
Ingress ProtectionIP68
Housing MaterialsStainless Steel 304 (also available in 316L)
Input VoltageDC 12V ± 25% PoE (IEEE 802.3af)
Power Consumption7.5W Max
Cable OutputIntegrated cable 2m
Cable Gland1pcs G3 / 4 Atau M25 x 1.5
Dimensions (LxWxH)319 x 144 x 168 (mm) [12.4″ x 5.7″ x 6.6″ (in)]
Housing Net Weight7.5Kg [16.5 lbs]
CAMERA
Power SystemNTSC
SensorIMX335 1/2.8
DSPNVP2477H
Active Pixel2560 x 1944
Sync.Internal
Resolution5MP
Video OutA/T/C/CVBS
Minimum Illumination0.01Lux (F1.2)
Gama adjust0.45
Electric ShutterAUTO FLK 1/25-1/50000
S/N Ratio48dB(min)(AGC closed)
DNR2DNR OFF/LOW/MID/HIGH

3DNR OFF/LOW/MID/HIGH

White BalanceATW/AWC-SET
AGCLevel 0-15
D-WDROFF/Auto
OSDYes
LanguagesEng CHN1/2 GER FRA ITA SPA POL RUS POR NED TUR JPN
Day/NightAuto, Color, B/W, Ext
Power InputDC12V±1V
Power Dissipation85-95MA
Transmission distance75-5 300M
Operation TemperatureTemperature -10°C+55°C, Humidity less than 85%RH
